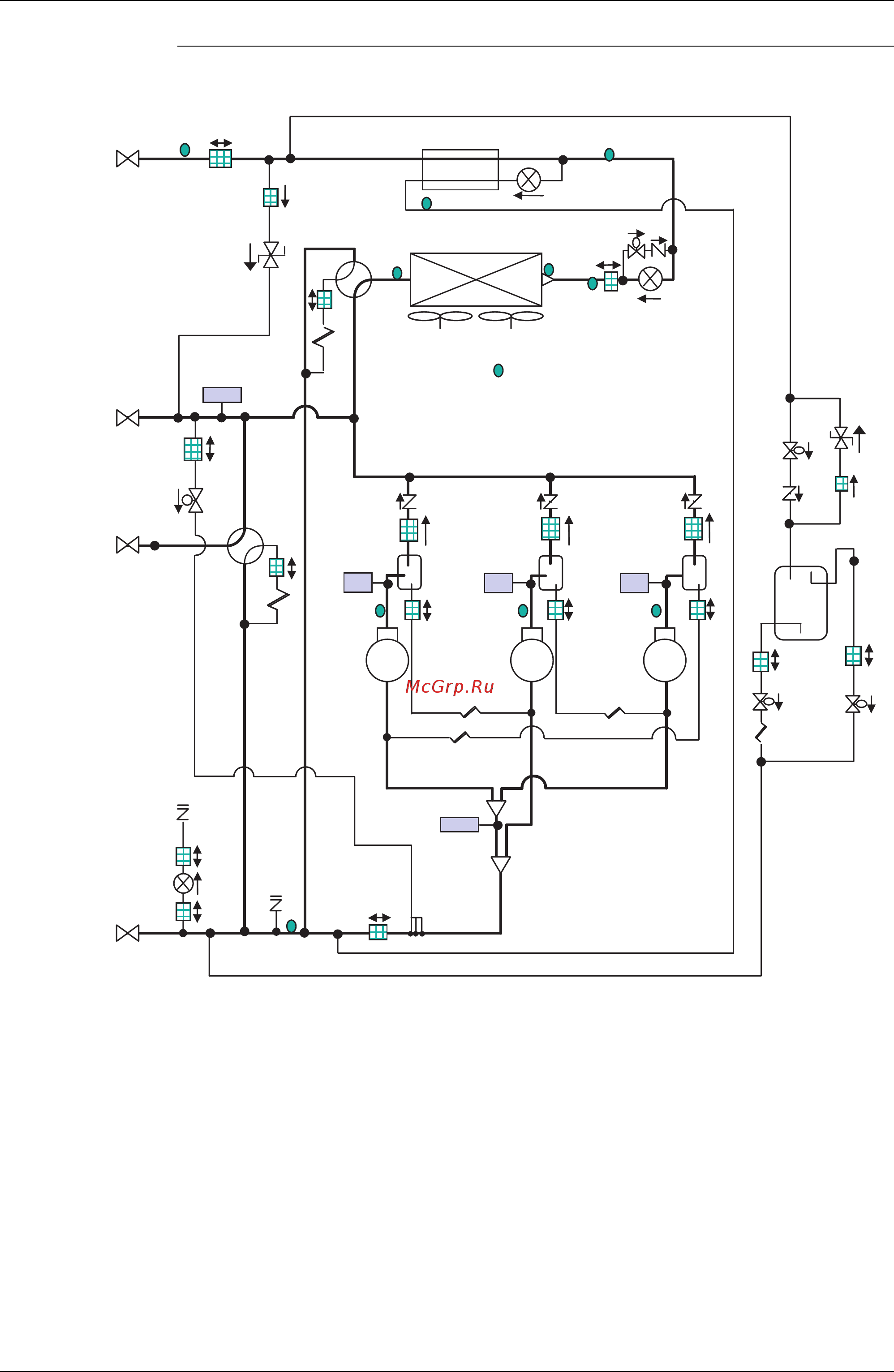

SiBE37-704_A Refrigerant Circuit
Refrigerant Circuit 70
REMQ14P, 16P
Stop Valve
(40)
Liquid Pipe
(22)
(36)
(15)
(4)
(30)
(35)
(37)
(6)
(9)
Stop Valve
Equalizing Pipe
Stop Valve
Dual Pressure
Gas Pipe
(17)
S1NPH
(16)
(19)
(32)
(39)
(24)
(38)
(7)
(23)
(11)
(25)
(12)
(13)
(29)
(28)
S1PH
(1)
INV
(26)
S2NPL
(18)
Gauge Port
(31)
(8)
Suction Pipe
(10)
(27)
(2)
S1
S2PH
(20)
(33)
S3PH
(21)
(34)
(3)
S2
(5)
Stop Valve
