Test Operation SiBE37-704_A
187 Test Operation
3. Open valve B (the valves A and C, the liquid pipe, the suction gas pipe, the high pressure/
low pressure gas pipe and the equalizer pipe stop valves must be left closed) and charge the
refrigerant in liquid form via the liquid pipe stop valve service port. (See figure 24)
4. If the calculated amount of pre-charging is reached, close valve B.
At least the unit should be charged with its original amount of refrigerant (refer to the nameplate
on the unit), before starting the automatic charging.
Note: When the leak detection function is not required, complete charging when using the previous
described method (unit is not operating) can be done.
If it is not possible to charge the entire quantity through the service port of the liquid pipe stop
valve with the unit not operating, refer to " 1.2.6.8.7 Additional refrigerant charging method" on
page 201.
5. After pre-charging, perform the refrigerant charge operation as shown below and charge the
remaining refrigerant of the additional charging amount through valve A. (See figure 24)
Note: For a multi outdoor unit system, it is not required to connect all charge ports to a refrigerant
tank.
The refrigerant will be charged with ±30 kg in 1 hour time at an outdoor temperature of 30°C DB
or with ±12 kg at an outdoor temperature of 0°C DB.
If you need to speed up in case of a multiple outdoor system, connect the refrigerant tanks to
each outdoor unit as shown in figure 24.
1. Start of automatic charging refrigerant
- Open the liquid pipe, suction gas pipe, high pressure/low pressure gas pipe and equalizer
pipe stop valves and the service port stop valve. (Valves A, B and C must be closed.)
- Close all front panels except the electric box front panel and turn the power ON.
- Make sure all indoor units are connected, refer to " 1.2.6.4 How to check how many units
are connected" on page 185.
- If the H2P LED is not flashing (in 12 minutes time after turning on the power), make sure it
is displayed as shown in the "2. Normal system display" on page 190.
If the H2P LED is flashing, check the malfunction code on the remote controller
"3. Remote controller malfunction code display" on page 191.
If you perform the refrigerant charging operation within the refrigerant system with one or more
units with power OFF, the refrigerant charging operation can not be accomplished properly.
For confirming the number of outdoor units and indoor units with power ON, refer to " 1.2.6.4
How to check how many units are connected" on page 185.
In case of a multi system, turn the power ON to all outdoor units in the refrigerant system.
Charge
hose
High pressure/low pressure
gas pipe stop valve
Suction gas pipe stop valve
Liquid pipe stop valve
Refrigerant charge port
Valve A
Valve B
Valve C
Measuring
instrument
Refrigerant tank
(R-410A, siphon system)
Stop
valve
Service
port
Field
piping
To BS unit,
indoor unit
Refrigerant flow when pre-
charging through the liquid stop
valve service port (refer to step 3
on page 183)
Refrigerant flow when automatic
charging through the charge port
(refer to step 5 on page 183)

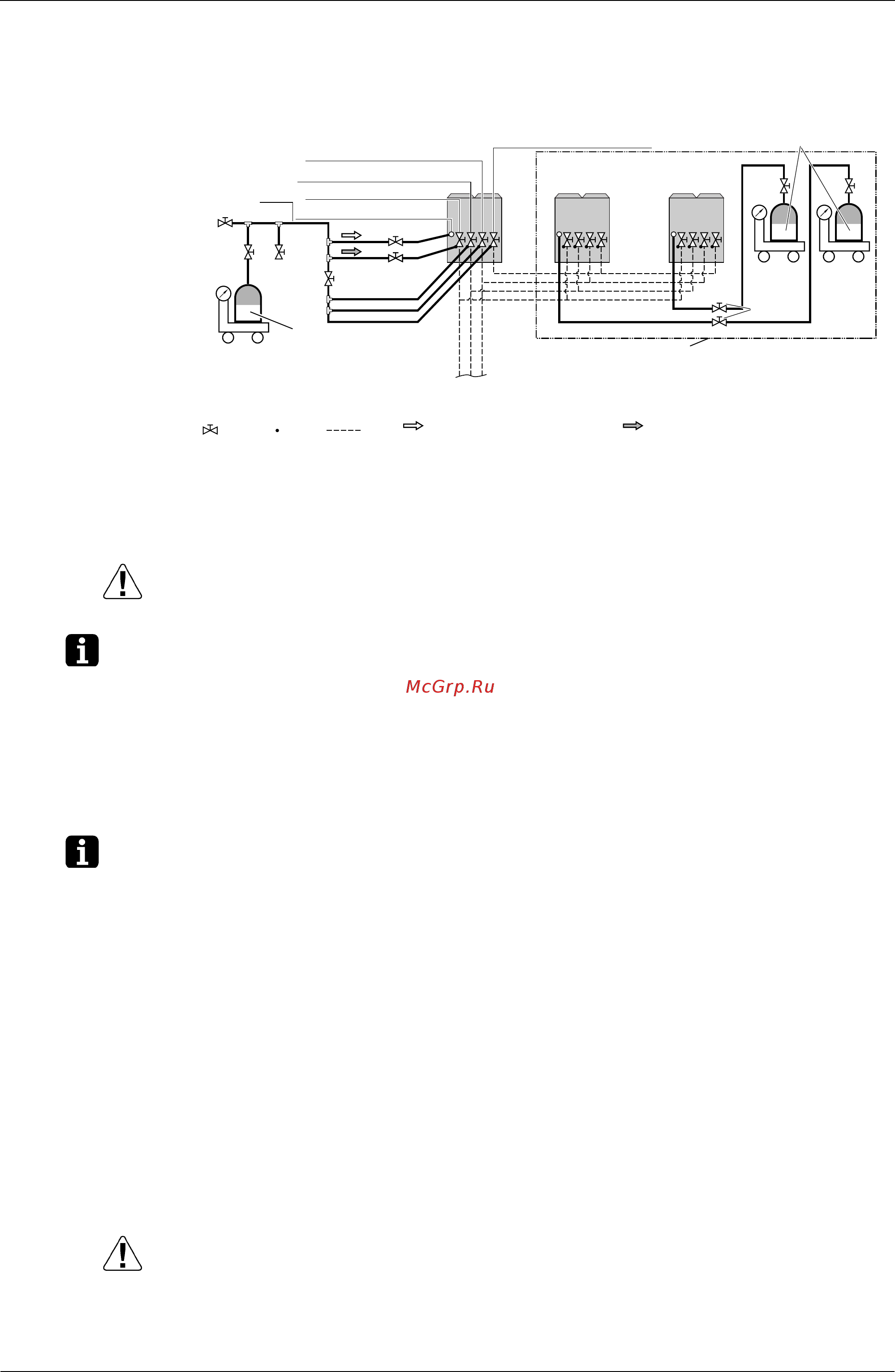

The refrigerant will be charged with ±30 kg in 1 hour at
an outdoor temperature of 30°C DB (12 kg at 0°C DB).
If you need to speed up in case of a multi system,
connect the refrigerant tank to each outdoor unit.
Measuring
instrument
Measuring
instrument
Valve A
Equalizer pipe stop valve
Refrigerant tank
(R-410A, siphon system)
figure 24
