SiBE37-704_A Troubleshooting by Indication on the Remote Controller
Troubleshooting 366
Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Correct the connecting wiring
with the external control
adaptor.
Check if any disconnection
or connection error is
detected in connecting
wires with external control
adaptor.
Confirmation of
malfunction 3
Confirmation of
malfunction 4

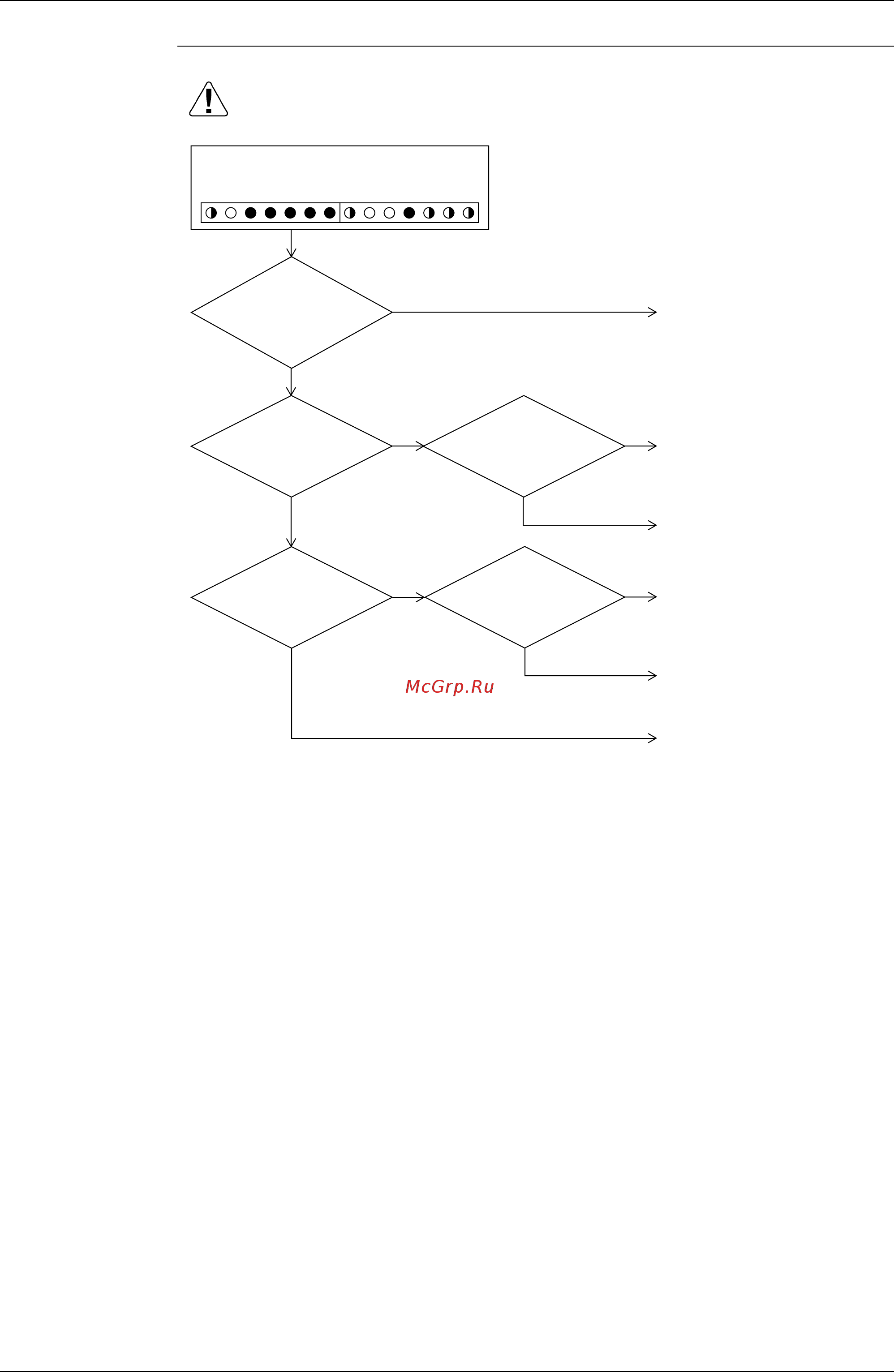

Diagnosis Flow 1
Check if the normal
condition monitor LED
for the outdoor unit
PCB blinks.
Check if power is
supplied to the
outdoor units.
Check if the normal
condition monitor LED
for the external control
adaptor blinks.
Check if the power
supply wire for the
external control adaptor
is connected to 5V
supply line.
YES
NO
NO
NO
YES YES
NONO
YES
YES
Supply power to the outdoor
unit.
Replace the outdoor unit main
PCB.
Connect the power supply wire
for the external control adaptor
to 5V supply line.
Replace the PCB of the external
control adaptor.
Replace the outdoor unit main
PCB.
