Troubleshooting by Remote Controller SiBE37-704_A
259 Troubleshooting

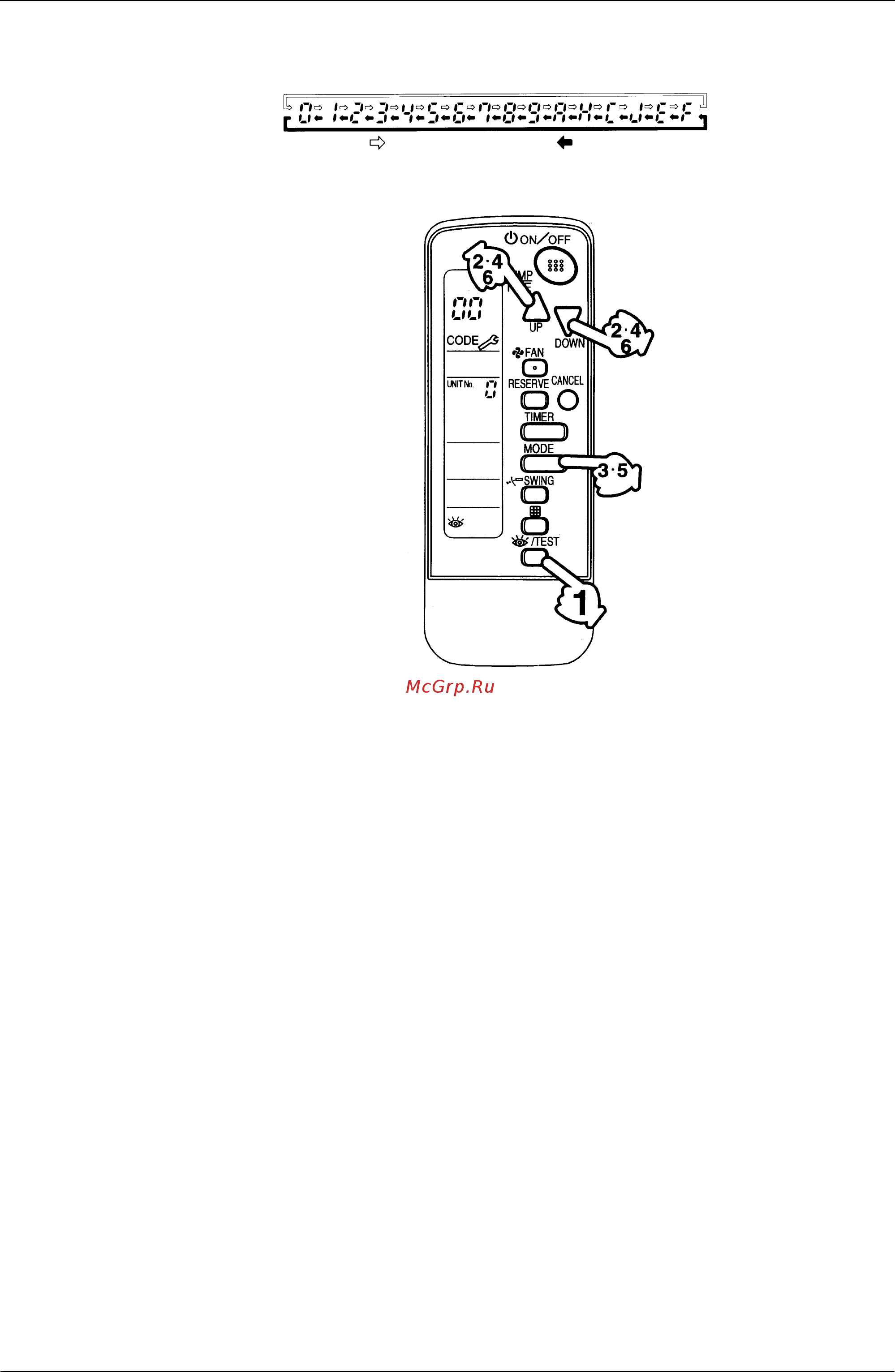

The lower digit of the code changes as shown below when the UP and DOWN buttons are
pressed.
“Advance” button
“Backward” button
