SiBE37-704_A Troubleshooting by Indication on the Remote Controller
Troubleshooting 380
Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Continued to A
(on the following page)
YES
NO

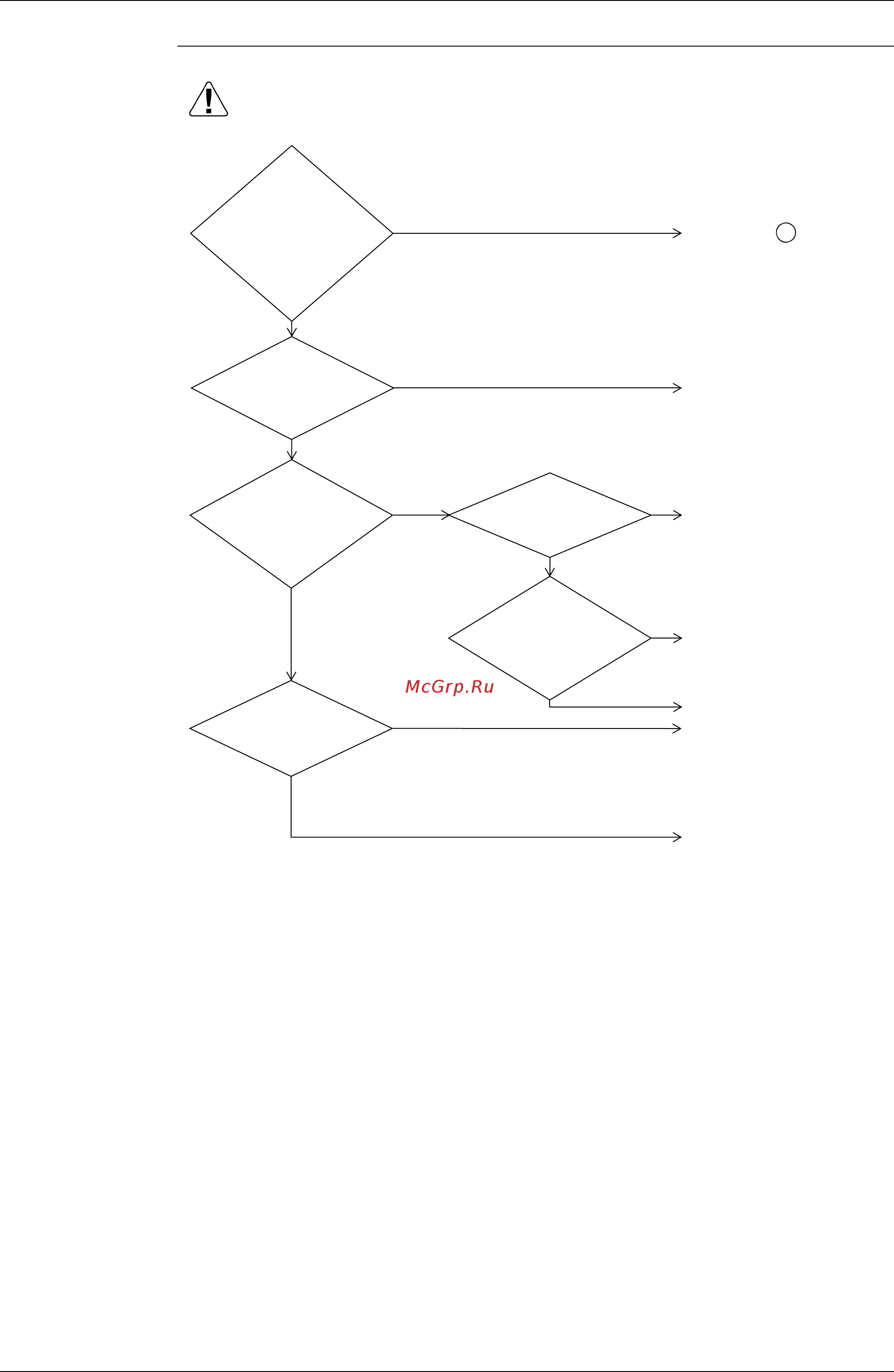

Check the indoor unit for
which “
UE
” is displayed. Is
the the transmission
malfunction (UE)caused
on all indoor units?
YES
YES
YES
NO
NO
NO
YES
NO
NO
YES
Make sure there are no
hazardous situations, and
then turn ON the power
supply.
Is the power supply of the
indoor unit on which the “
UE
”
occurred, turned ON?
Has the setting of central
control group No. been
made with the indoor unit
on which the “
UE
”
occurred?
Was the central
control group No.
for indoor unit
changed?
Can the setting of
central control group
No be made?
For VRV systems, can the setting
of central control group No. be
made in one and the same
refrigerant system?
Make correct setting of the
central control group No.
Check outdoor units to which
the refrigerant system is
connected.
Check whether or not there
are no problems with the
transmission wiring length,
types of cables and wires,
number of units connected,
and others. If no problems,
replace the indoor unit PCB.
Reset the power supplies of
every central equipment.
For the intelligent Touch
controller, register the air
conditioner again while in
DIII-NET test run menu.
