Test Operation SiBE37-704_A
165 Test Operation
1.2.5.2 Precautions when adding R-410A
Be sure to charge the specified amount of refrigerant in liquid state.
Since this refrigerant is a mixed refrigerant, adding it in gas form may cause the refrigerant
composition to change, preventing normal operation.
Before charging, check whether the refrigerant cylinder is equipped with a siphon tube or not.
Be sure to use tools exclusively for R-410A to ensure required pressure resistance and to
prevent foreign materials from mixing into the system.
Charging with an unsuitable substance may cause explosions and accidents, so always make
sure that the appropriate refrigerant (R-410A) is charged.
Refrigerant containers must be opened slowly.
1.2.5.3 Stop valve operation procedure
Size of stop valve
The sizes of the stop valves connected to the system are as listed in the table below.
(a) The 12 HP model supports field piping of
φ
12.7 on the accessory pipe supplied with the unit.
(b) The 8 HP model supports field piping of
φ
19.1 on the accessory pipe supplied with the unit.
The 10 HP model supports field piping of
φ
22.2 on the accessory pipe supplied with the unit.
The 12~16 HP models support field piping of
φ
28.6 on the accessory pipe supplied with the unit.
(c) The 8 HP model supports field piping of
φ
15.9 on the accessory pipe supplied with the unit.
The 14 and 16 HP models support field piping of
φ
22.2 on the accessory pipe supplied with
the unit.
Do not open the stop valve until all piping and electrical steps of “1.2.4 Pipe Insulation” on
page 163 are completed. If the stop valve is left open without turning on the power, it may
cause refrigerant to build up in the compressor, leading to insulation degradation.
Always use a charge hose for service port connection.
After tightening the cap, check that no refrigerant leaks are present.

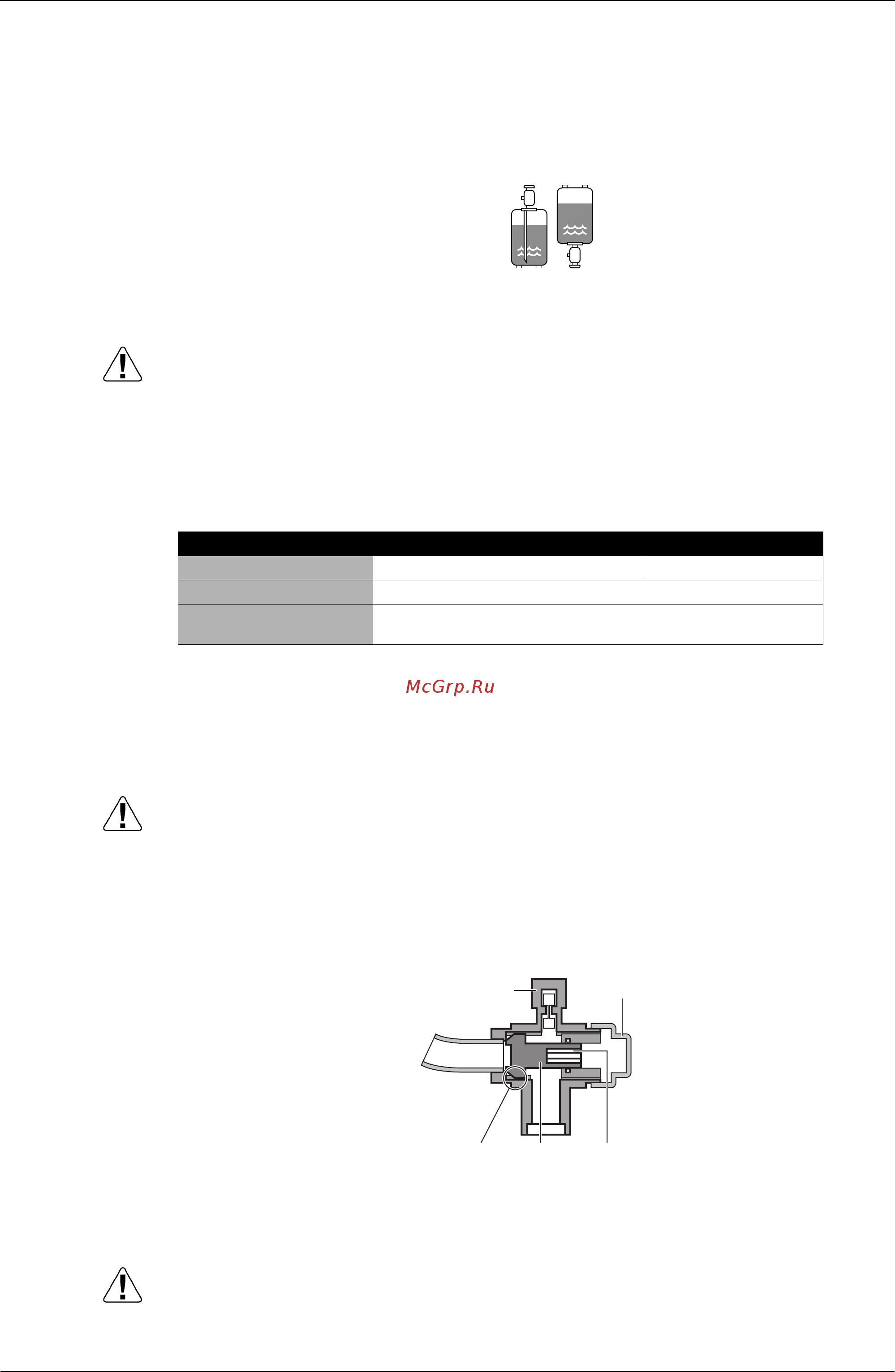

Opening stop valve (See figure 19)
1. Remove the cap and turn the valve counterclockwise with the hexagon wrench.
2. Turn it until the shaft stops.
Do not apply excessive force to the stop valve. Doing so may break the valve body.
Charge the liquid refrigerant with
the cylinder in upright position.
Charge the liquid refrigerant with
the cylinder in up-side-down
position.
Type of stop valve 8HP 10 HP 12 HP 14 HP 16 HP
Liquid pipe φ9.5
(a)
φ12.7
Suction gas pipe φ25.4
(b)
High pressure/low
pressure gas pipe
φ19.1
(c)
Service port
Seal
Shaft
figure 19
Hexagon
hole
Cap
