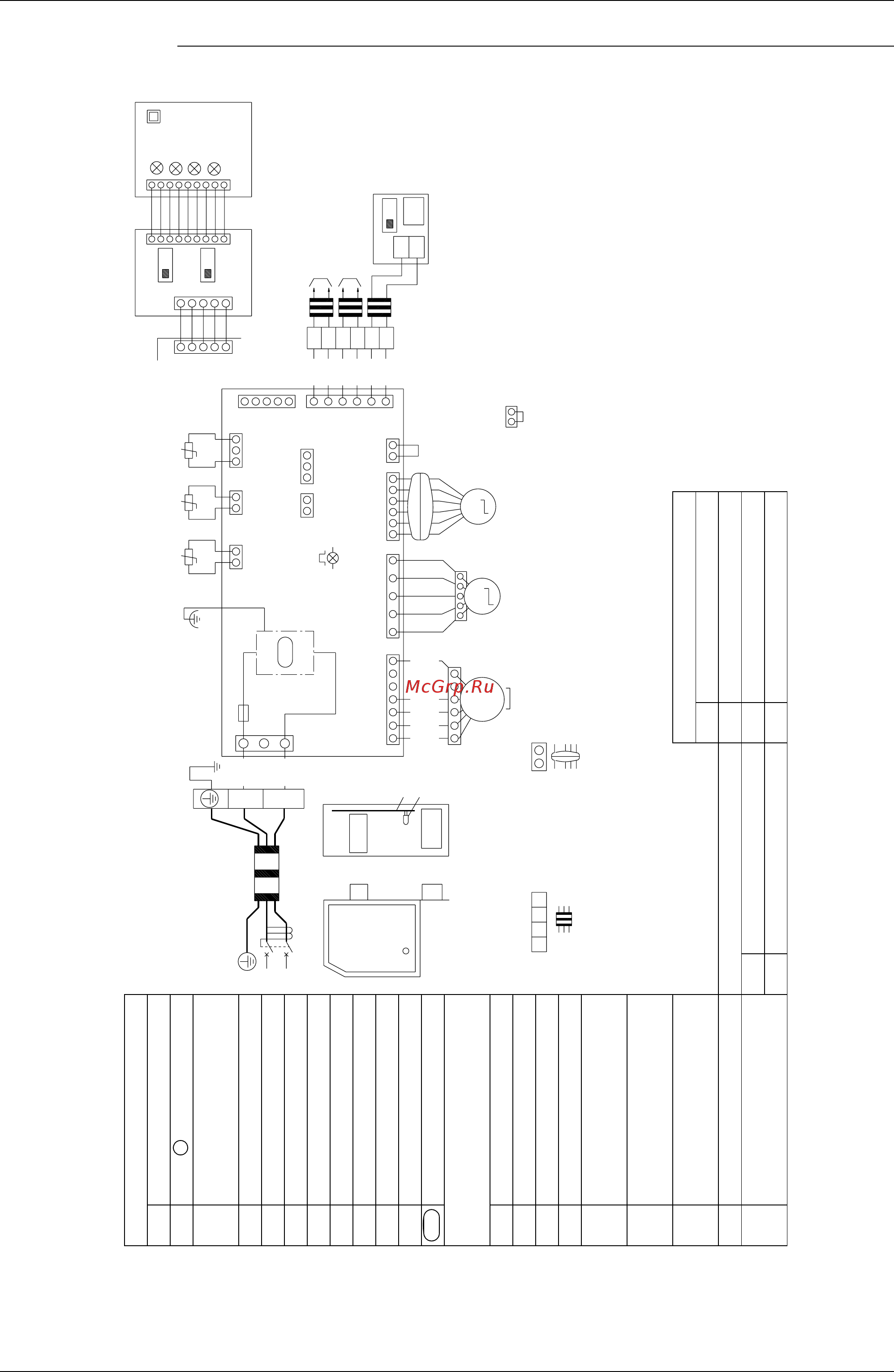

SiBE37-704_A Wiring Diagrams for Reference
Appendix 442
FXAQ20P / 25P / 32P / 40P / 50P / 63PV1
INDOOR UNIT
A1P PRINTED CIRCUIT BOARD
F1U FUSE ( B , 3A, 250V)
HAP LIGHT EMITTING DIODE
(SERVICE MONITOR GREEN)
M1F MOTOR (INDOOR FAN)
M1S MOTOR (SWING FLAP)
R1T THERMISTOR (AIR)
R2T
THERMISTOR (COIL LIQUID PIPE)
R3T THERMISTOR (COIL GAS PIPE)
X1M TERMINAL BLOCK (CONTROL)
X2M TERMINAL BLOCK (POWER)
Y1E
ELECTRONIC EXPANSION VALVE
PC POWER CIRCUIT
RECEIVER/DISPLAY UNIT(ATTACHED
TO WIRELESS REMOTE CONTROLLER)
A2P PRINTED CIRCUIT BOARD
A3P PRINTED CIRCUIT BOARD
BS1 PUSH BUTTON (ON/OFF)
H1P
LIGHT EMITTING DIODE (ON-RED)
H2P LIGHT EMITTING DIODE
(TIMER-GREEN)
H3P LIGHT EMITTING DIODE
(FILTER SIGN-RED)
H4P LIGHTE MITTING DIODE CONNECTOR FOR OPTIONAL PARTS
(DEFROST-ORANGE)
X15A
CONNECTOR (FLOAT SWITCH)
SS1 SELECTOR SWITCH (MAIN/SUB) WIRED REMOTE CONTROLLER
X24A
CONNECTOR (WIRELESS REMOTE CONTROLLER)
SS2 SELECTOR SWITCH R1T THERMISTOR (AIR)
X35A
CONNECTOR (GROUP CONTROL ADAPTOR)
(WIRELESS ADDRESS SET) SS1 SELECTOR SWITCH (MAIN/SUB)
X38A
CONNECTOR (ADAPTOR FOR MULTI TENANT)
POWER SUPPLY
~
220-240V
50Hz
L
N
A1P
HAP
SIDE
X2M
X1M
CONTROL BOX
(INDOOR UNIT)
FRONT
X2M
X1M
A1P
HAP
X2M
L
N
GRN/YLW
A1P
RED
WHT
F1U
X27A
PC
GRN
NE
R3T
t°
X14A
R2T
t°
X18A
R1T
t°
X19A
X24A
NOTE) 8
X35A
X30A
X38A
NOTE) 8 NOTE) 8
HAP
X20A X36A X7A NOTE) 8
X15A
WHT
M
Y1E
MSW
M1S
M1F
MS
3~
WHT
ORG
BRN
BLU
RED
A1P
X24A
NOTE) 8
A2P
X2A
SS1
SS2
X1A
X1A
A3P
H1P
H2P
H3P
H4P
BS1
RECEIVER/DISPLAY UNIT
(WIRELESS REMOTE CONTROLLER)
PNK
WHT
YLW
ORG
BLU
BLK
X1M
T2
T1
F2
F1
P2
P1
INPUT FROM OUTSIDE
NOTE) 5
TRANSMISSION WIRING
CENTRAL REMOTE CONTROLLER
NOTE) 2
SS1
P2
P1
R1T
WIRED REMOTE
CONTROLLER
NOTES)
1. : TERMINAL : CONNECTOR
: FIELD WIRING : CONNECTOR
2. IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE
UNIT IN ACCORDANCE WITH THE ATTACHED INSTALLATION MANUAL.
3. SYMBOLS SHOWS AS FOLLOWS: RED : RED WHT : WHITE
GRN : GREEN PNK : PINK YLW : YELLOW BLK : BLACK ORG : ORANGE
BLU : BLUE
4. SHOWS SHORT CIRCUIT CONNECTOR.
5. WHEN CONNECTING THE INPUT WIRES FROM OUTSIDE,
FORCED OFF OR ON/OFF CONTROL OPERATION CAN
BE SELECTED BY REMOTE CONTROLLER. IN DETAILS,
REFER TO THE INSTALLATION MANUAL ATTACHED THE
UNIT.
6. REMOTE CONTROLLER MODEL VARIES ACCORDING TO
THE COMBINATION SYSTEM, CONFIRM ENGINEERING
DATA AND CATALOGS, ETC. BEFORE CONNECTING.
7. CONFIRM THE METHOD OF SETTING THE SELECTOR
SWITCH (SS1,SS2) OF WIRED REMOTE CONTROLLER
AND WIRELESS REMOTE CONTROLLER BY INSTALL-
ATION MANUAL AND ENGINEERING DATA, ETC.
8. X15A, X24A, X35A AND X38A ARE CONNECTED WHEN
THE OPTIONAL ACCESSORIES ARE BEING USED.
3D064997
