SiBE37-704_A Test Operation
Test Operation 184
1.2.6.3 Stop valve operation procedure
Size of stop valve
The sizes of the stop valves connected to the system are as listed in the table below.
(a) The 12 HP model supports field piping of
φ
12.7 on the accessory pipe supplied with the unit.
(b) The 8 and 10 HP models support field piping of
φ
22.2 on the accessory pipe supplied with
the unit.
The 12~16 HP models support field piping of
φ
28.6 on the accessory pipe supplied with the unit.
(c) The 14 and 16 HP models support field piping of
φ
22.2 on the accessory pipe supplied with
the unit.
Do not open the stop valve until all piping and electrical steps of “1.2.4 Pipe Insulation” on
page 163 are completed. If the stop valve is left open without turning on the power, it may
cause refrigerant to build up in the compressor, leading to insulation degradation.
Always use a charge hose for service port connection.
After tightening the cap, check that no refrigerant leaks are present.

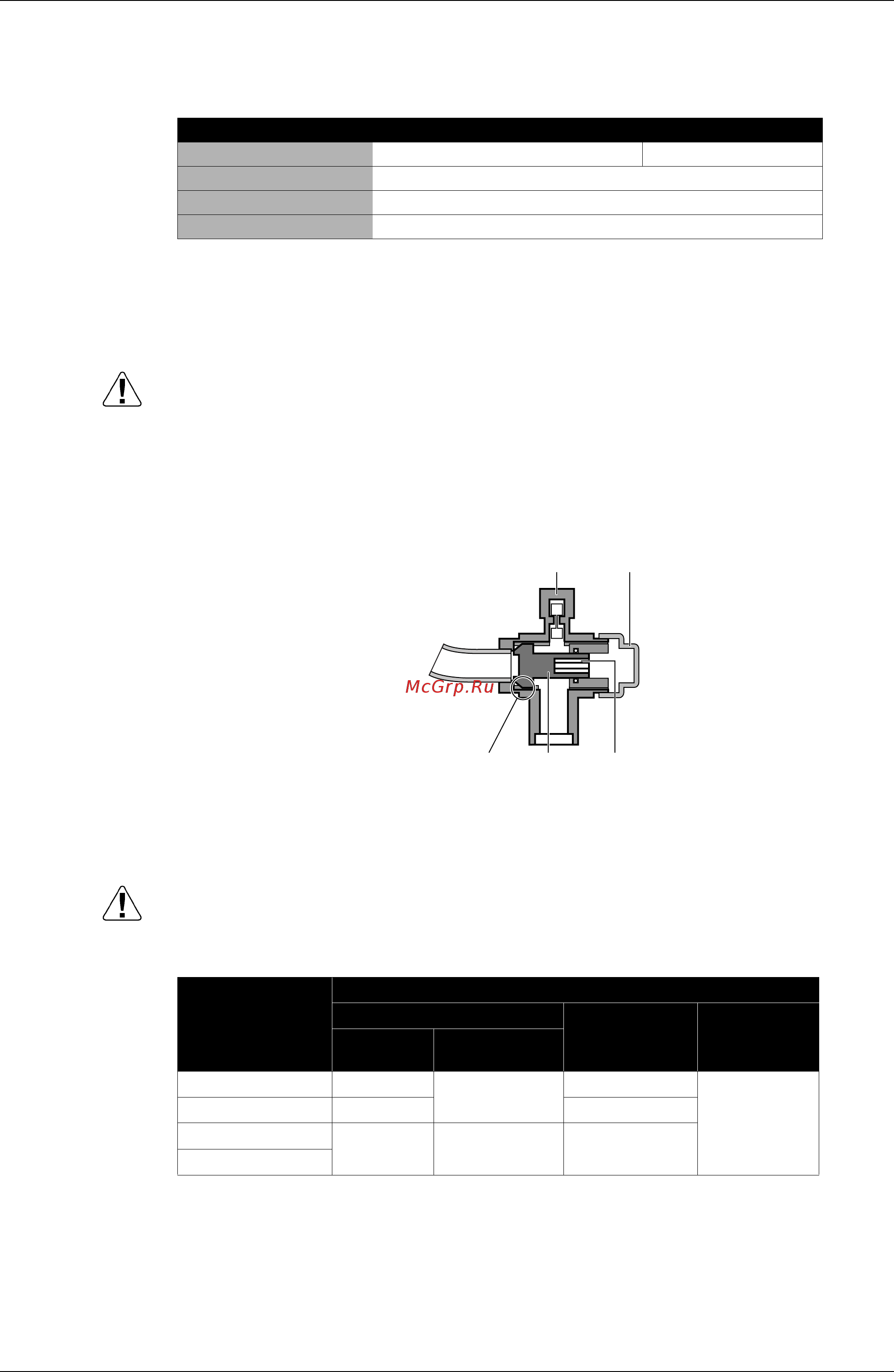

Opening stop valve (See figure 13)
1. Remove the cap and turn the valve counterclockwise with the hexagon wrench.
2. Turn it until the shaft stops.
Do not apply excessive force to the stop valve. Doing so may break the valve body.
3. Make sure to tighten the cap securely. Refer to the table below.
Closing stop valve (See figure 13)
1. Remove the cap and turn the valve clockwise with the hexagon wrench.
2. Securely tighten the valve until the shaft contacts the main body seal.
3. Make sure to tighten the cap securely.
For the tightening torque, refer to the table above.
Type of stop valve 8HP 10 HP 12 HP 14 HP 16 HP
Liquid pipe φ9.5
(a)
φ12.7
Suction gas pipe φ25.4
(b)
HP/LP gas pipe φ19.1
(c)
Equalizer pipe φ19.1
Service port
Cap
Seal Shaft
Hexagon
hole
figure 13
Stop valve size
Tightening torque N•m (Turn clockwise to close)
Shaft
Cap (valve lid) Service port
Valve body
Hexagonal
wrench
φ9.5 5.4~6.6
4mm
13.5~16.5
11.5~13.9
φ12.7 8.1~9.9 18.0~22.0
φ22.2
27.0~33.0 8 mm 22.5~27.5
φ25.4
