Outdoor Unit PCB Layout SiBE37-704_A
203 Test Operation

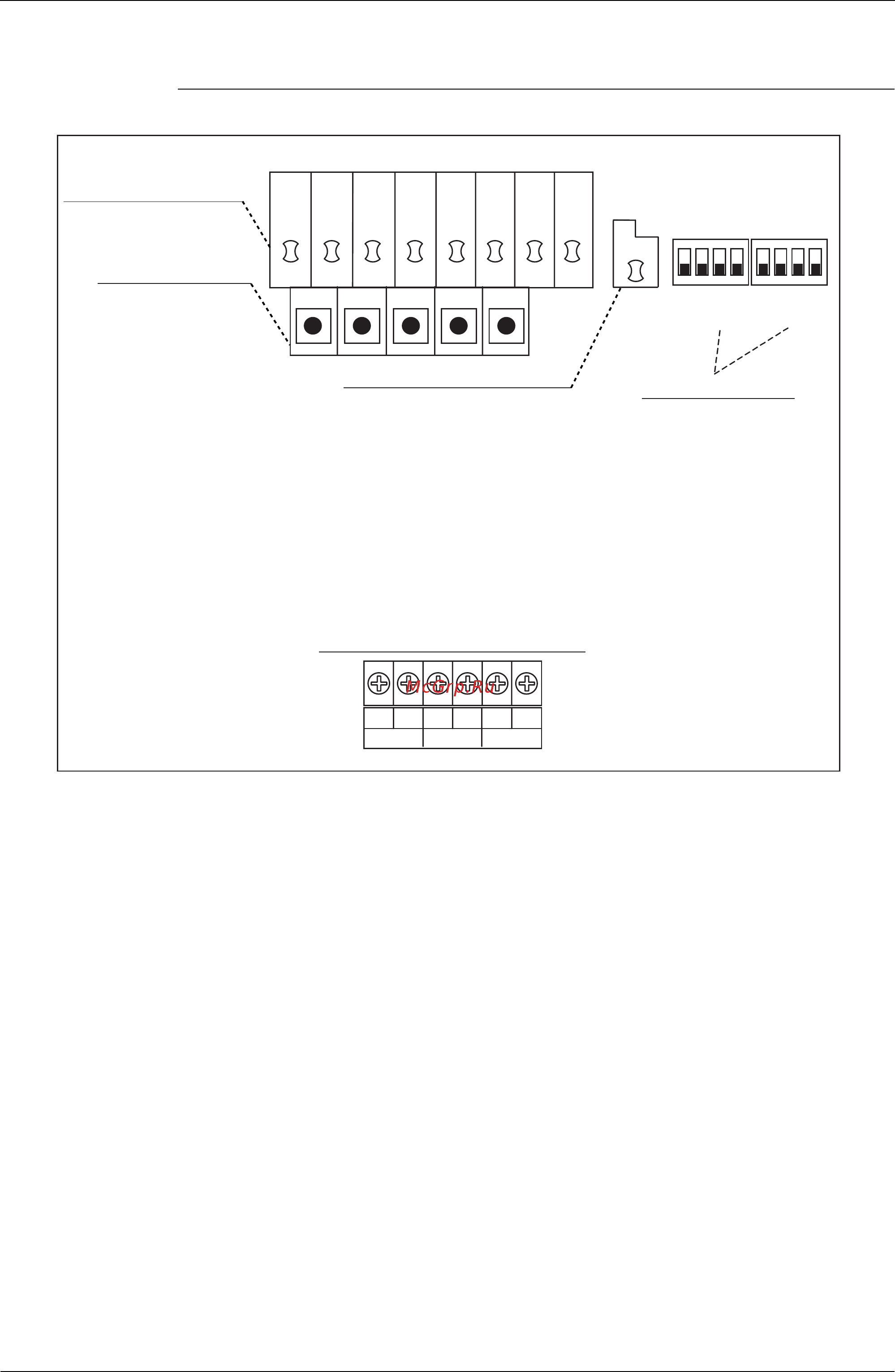

2. Outdoor Unit PCB Layout
Outdoor unit PCB
(2) Set mode display (LED)
(3) Mode setting switch
(1) Microcomputer normal monitor
(4) Local setting switch
H1P H2P H3P H4P H5P H6P H7P H8P
BS1
MODE
BS2
SET
BS3
RETURN
BS4
TEST
BS5
RESET
HAP
1234 1234
DS1 DS2
Connection terminal for transmission use
F1 F2 F1 F2 Q1 Q2
Indoor -
Outdoor
Outdoor -
Outdoor
Multi outdoor
(1) Microcomputer normal monitor
This monitor blinks while in normal operation, and turns on or off when a malfunction occurs.
(2) Set mode display (LED)
LEDs display mode according to the setting.
(3) Mode setting switch
Used to change mode.
(4) Local setting switch
Used to make field settings.
(V3054)
