SiBE37-704_A Test Operation
Test Operation 168
3. Open valve B (the valves A and C, the liquid pipe, the suction gas pipe and the high
pressure/low pressure gas pipe stop valves must be left closed) and charge the refrigerant in
liquid form via the liquid pipe stop valve service port.
(See figure 23)
4. If the calculated amount of pre-charging is reached, close valve B.
At least the unit should be charged with its original amount of refrigerant (refer to the nameplate
on the unit), before starting the automatic charging.
Note: When the leak detection function is not required, complete charging when using the previous
described method (unit is not operating) can be done.
If it is not possible to charge the entire quantity through the service port of the liquid pipe stop
valve with the unit not operating, refer to " 1.2.5.8.7 Additional refrigerant charging method" on
page 182.
5. After pre-charging, perform the refrigerant charge operation as shown below and charge the
remaining refrigerant of the additional charging amount through valve A. (See figure 23)
Note: The refrigerant will be charged with ±30 kg in 1 hour time at an outdoor temperature of 30°C DB
or with ±12 kg at an outdoor temperature of 0°C DB.
During the automatic charging operation, you can force the operation to a halt by pushing the
BS1 MODE button.
1. Start of automatic charging refrigerant
- Open the liquid pipe, suction gas pipe and high pressure/low pressure gas pipe stop
valves and the service port stop valve. (Valves A, B and C must be closed.)
- Close all front panels except the electric component box front panel and turn the power
ON.
- Make sure all indoor units are connected, refer to " 1.2.5.4 How to check how many units
are connected" on page 166.
- If the H2P LED is not flashing (in 12 minutes time after turning on the power), make sure it
is displayed as shown in the "2. Normal system display" on page 171.
If the H2P LED is flashing, check the malfunction code on the remote controller
"3. Remote controller malfunction code display" on page 172.
If you perform the refrigerant charging operation within the refrigerant system with one or
more units with power OFF, the refrigerant charging operation can not be accomplished
properly.
For confirming the number of indoor units with power ON, refer to " 1.2.5.4 How to check
how many units are connected" on page 166.

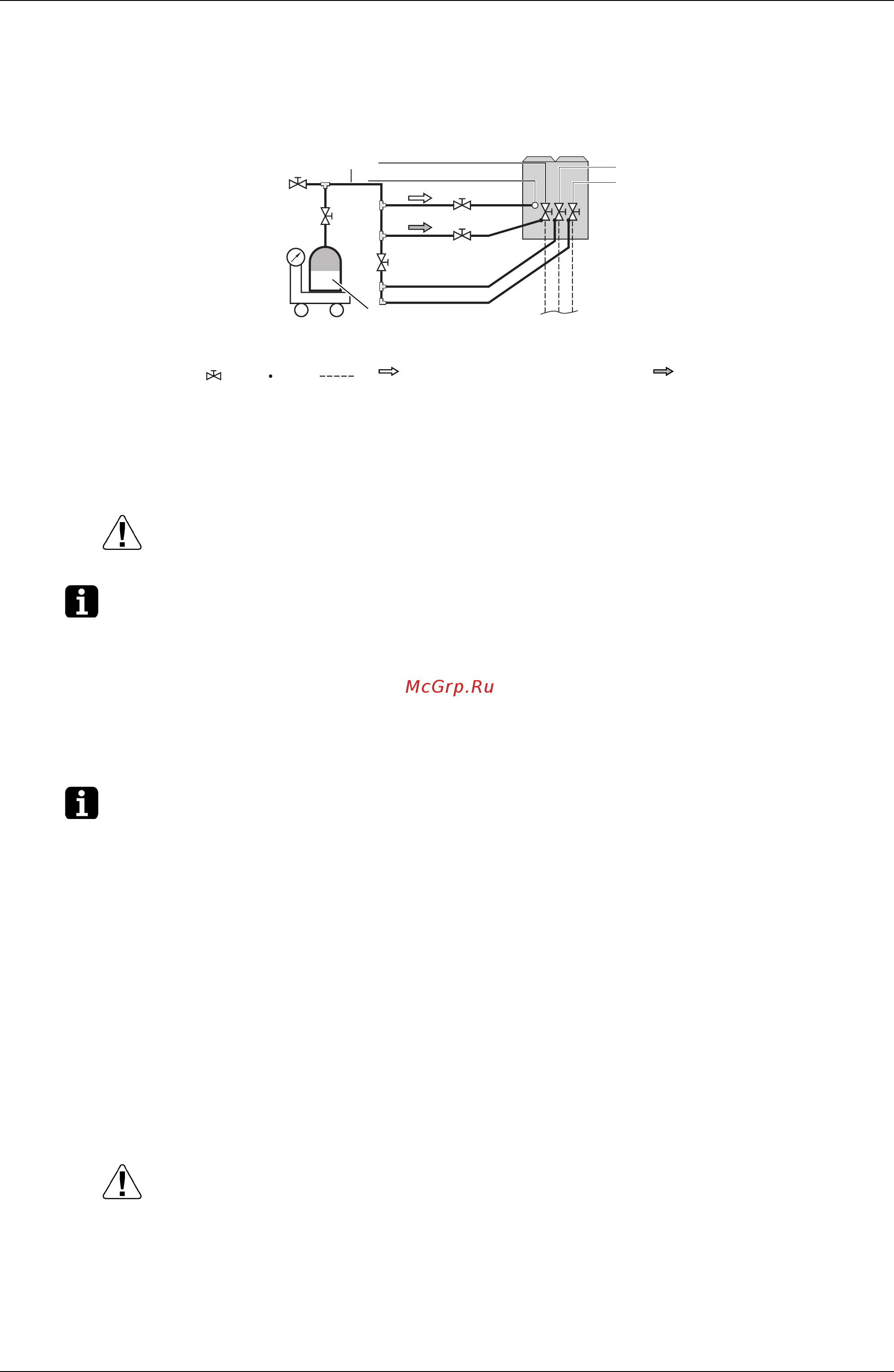

Charge hose
Liquid pipe stop valve
Refrigerant charge port
Valve A
Valve B
Valve C
Measuring
instrument
Refrigerant tank
(R-410A, siphon system)
Outdoor unit
Suction gas pipe stop valve
High pressure/low pressure
gas pipe stop valve
To BS unit, indoor unit
Stop
valve
Service
port
Field
piping
Refrigerant flow when pre-charging
through the liquid stop valve service port
(refer to step 3 on page 164)
Refrigerant flow when automatic
charging through the charge port
(refer to step 5 on page 164)
figure 23
