Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
24

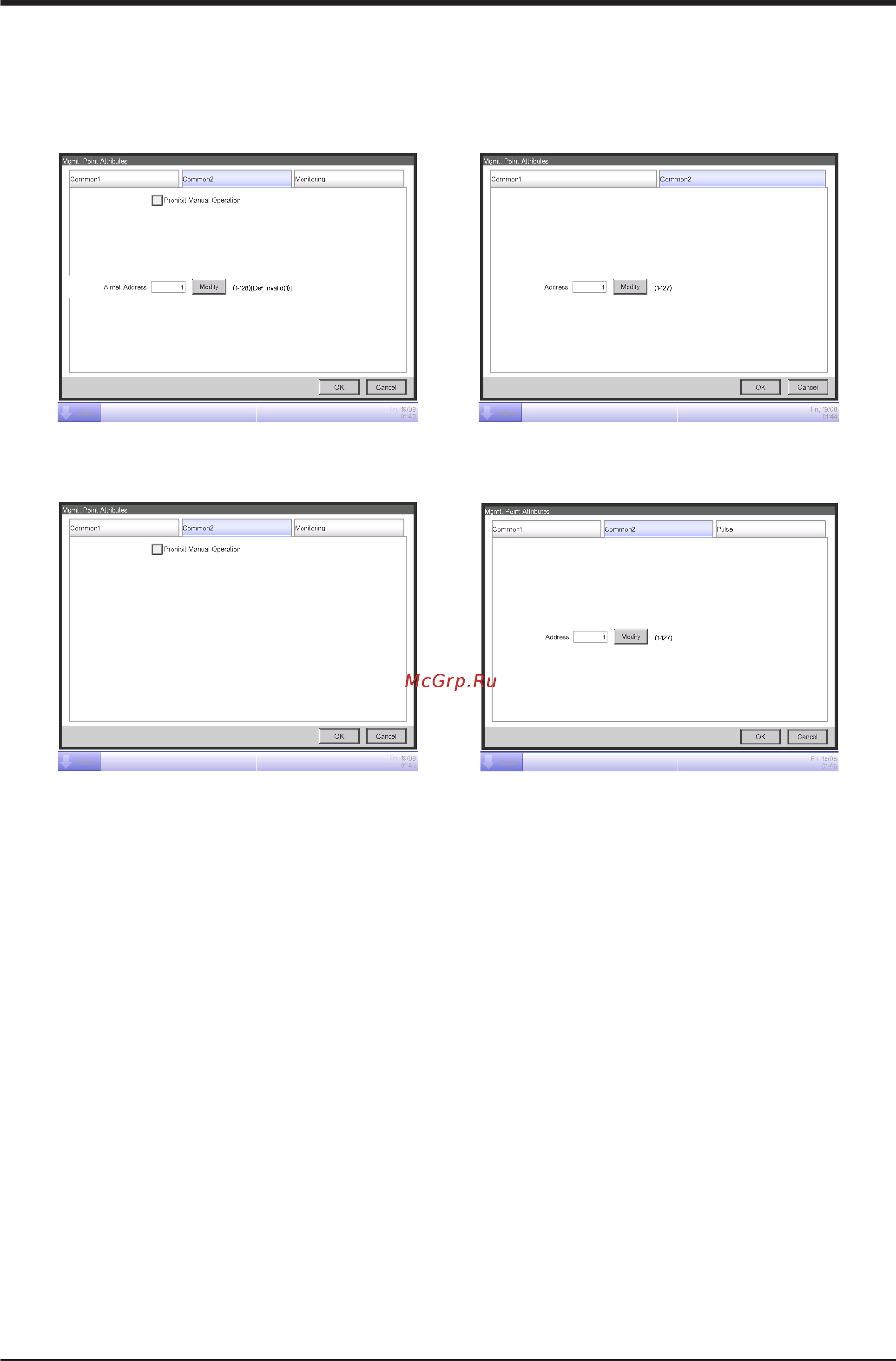

• Common 2 Tab
Sets up common items 2 for a management point.
Displayed items vary depending on the management point type.
<Outdoor><Indoor>
(22)(22)
(21)
<Internal Pi><D3Chiller, D3Dio, External Dio>
(22)
(21)
(21) Prohibit Manual Operation check box
Select the check box when prohibiting manual operation from the iTM.
(22) Address/ACNSS address text eld
Sets up the ACNSS address.
Touch the Modify button and enter the value in the Numerical Input dialog that appears.
Addresses can be specied in steps of 1 and within the following ranges of values.
Indoor unit: 1 to 128, Outdoor unit: 1 to 127, Internal Pi: 1 to 127
