Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

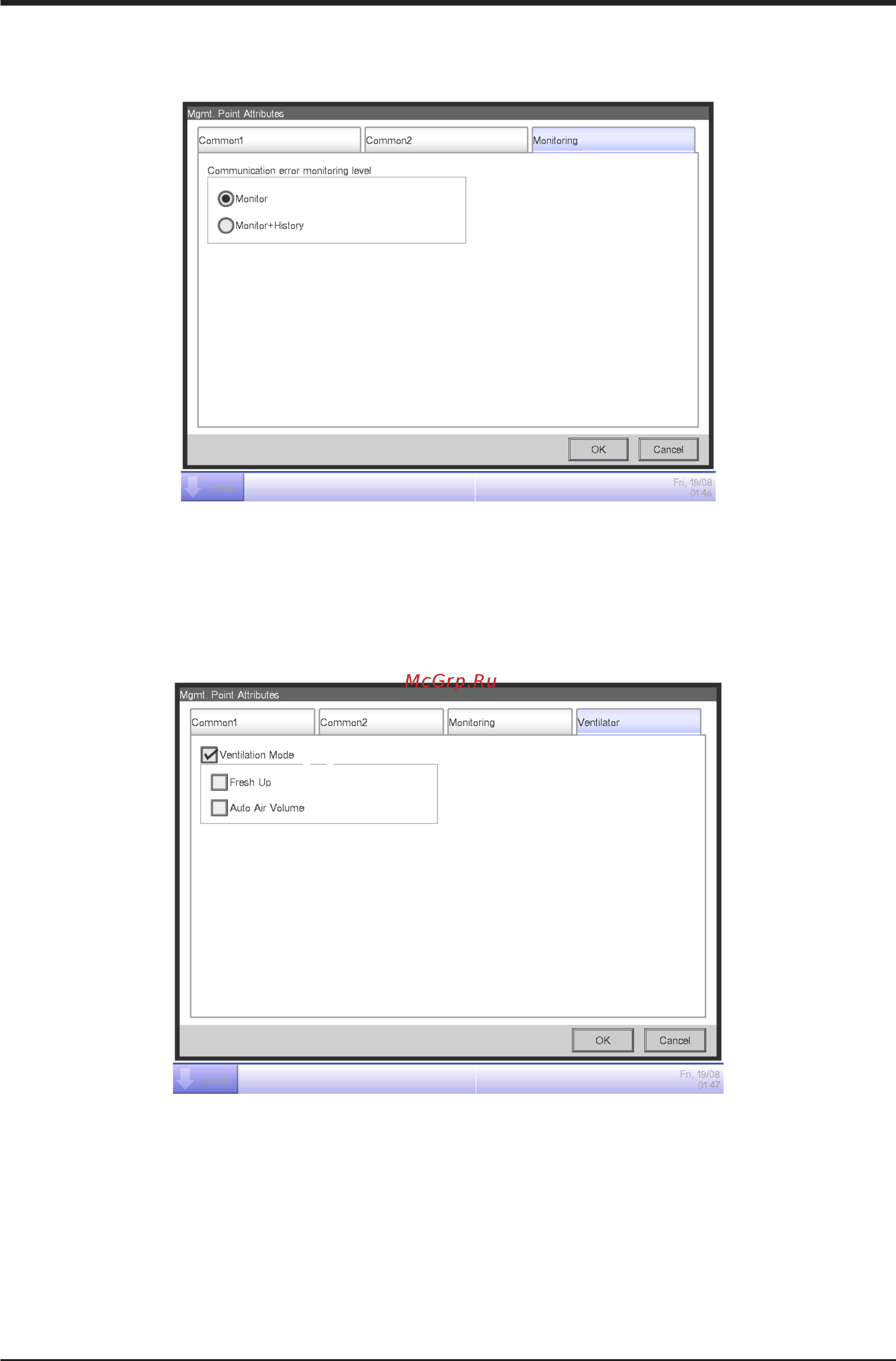

• Monitoring Tab

Sets up the monitoring item.

Select either of the communication error monitoring levels: Monitor or Monitor + History by using

the radio button.

• Ventilator Tab

Sets up the Ventilator.

(23)

(24)

(25)

(23) Ventilation Mode check box

Select the check box when setting up Fresh Up and/or Auto Air Volume.

(24) Fresh Up check box

Select the check box to enable Fresh Up.

(25) Auto Air Volume check box

Select the check box to enable Auto Air Volume.
