2001 NEW2001 NEW
6
1
PANEL DESCRIPTION
2001 NEW

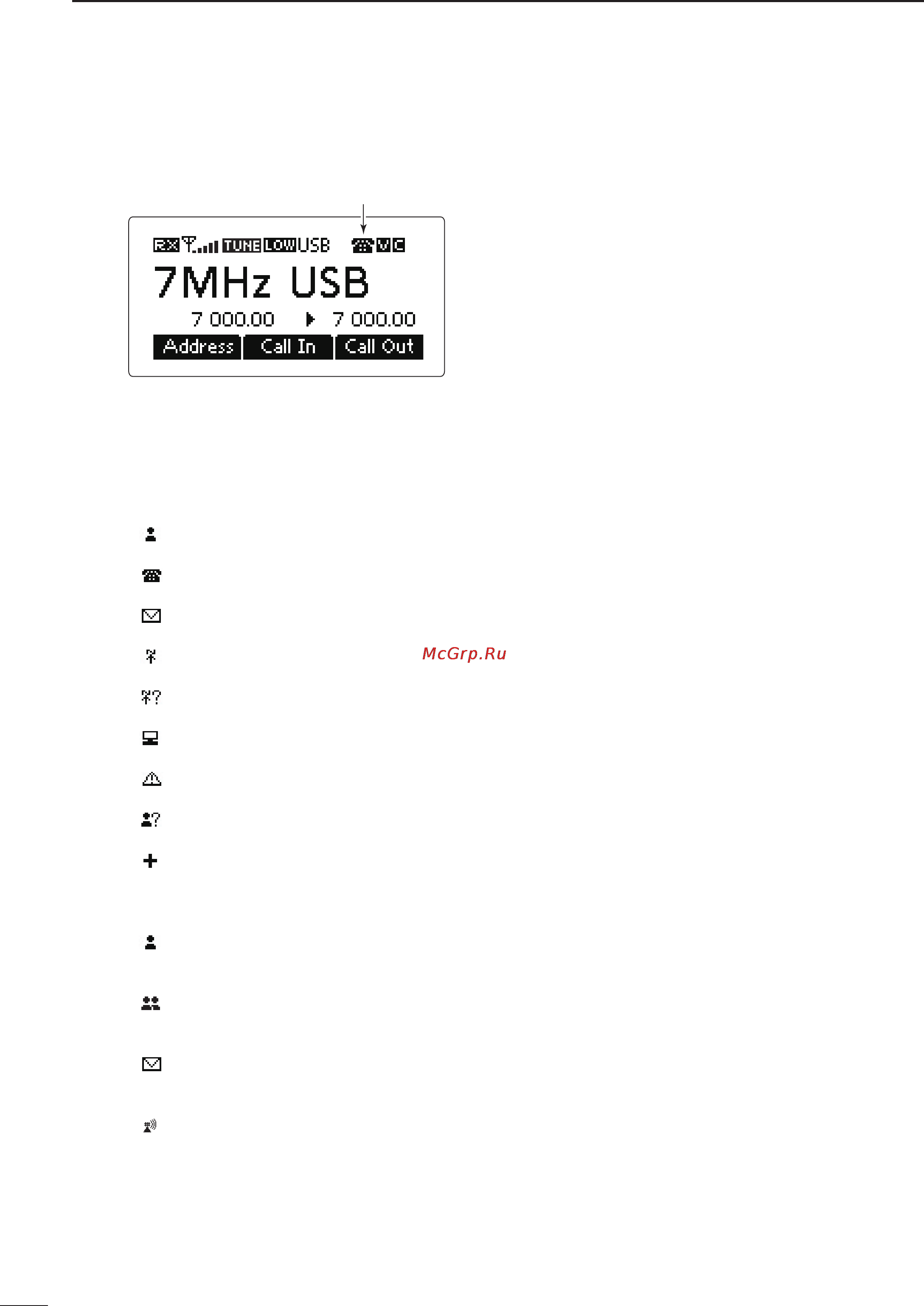

!3 CALL ICON
Displays the Call type icons for Selcall or ALE.
<Selcall>
• The “ ” icon blinks or appears when a Selective call is
transmitted or linked.
• The “
” icon blinks or appears when a Phone call is
transmitted or linked.
• The “
” icon blinks when a Message call is transmit-
ted.
• The “
” icon blinks when a Send Position is transmit-
ted.
• The “
” icon blinks when a Get Position call is trans-
mitted, or while waiting for its acknowledgement.
• The “
” icon blinks when a Get Status call is transmit-
ted, or while waiting for its acknowledgement.
• The “
” icon blinks or appears when an Emergency
call is transmitted or linked.
• The “
” icon blinks when a Channel Test call is trans-
mitted or while waiting for its acknowledgement.
• The “
” icon blinks or appears when an RFDS Emer-
gency call is transmitted or linked.
<ALE>
• The “ ” icon blinks when an Individual call is transmit-
ted or while waiting for its acknowledgement. The icon
stays ON when the call is linked.
• The “
” icon blinks when a NET call is transmitted or
while waiting for its acknowledgement. The icon stays
on when the call is linked.
• The “
” icon blinks when an AMD call is transmitted
or while waiting for its acknowledgement. The icon stays
ON when the call is linked.
• The “
” icon blinks when a Sounding is transmitted.
• Memory Channel Display
!3
LCD screen (Continued) ■
