![Icom IC-F8101 [17/88] Receive and transmit](/img/pdf.png)
Icom IC-F8101 [17/88] Receive and transmit
![Icom IC-F8101 [17/88] Receive and transmit](/views2/1074229/page17/bg11.png)
3
11

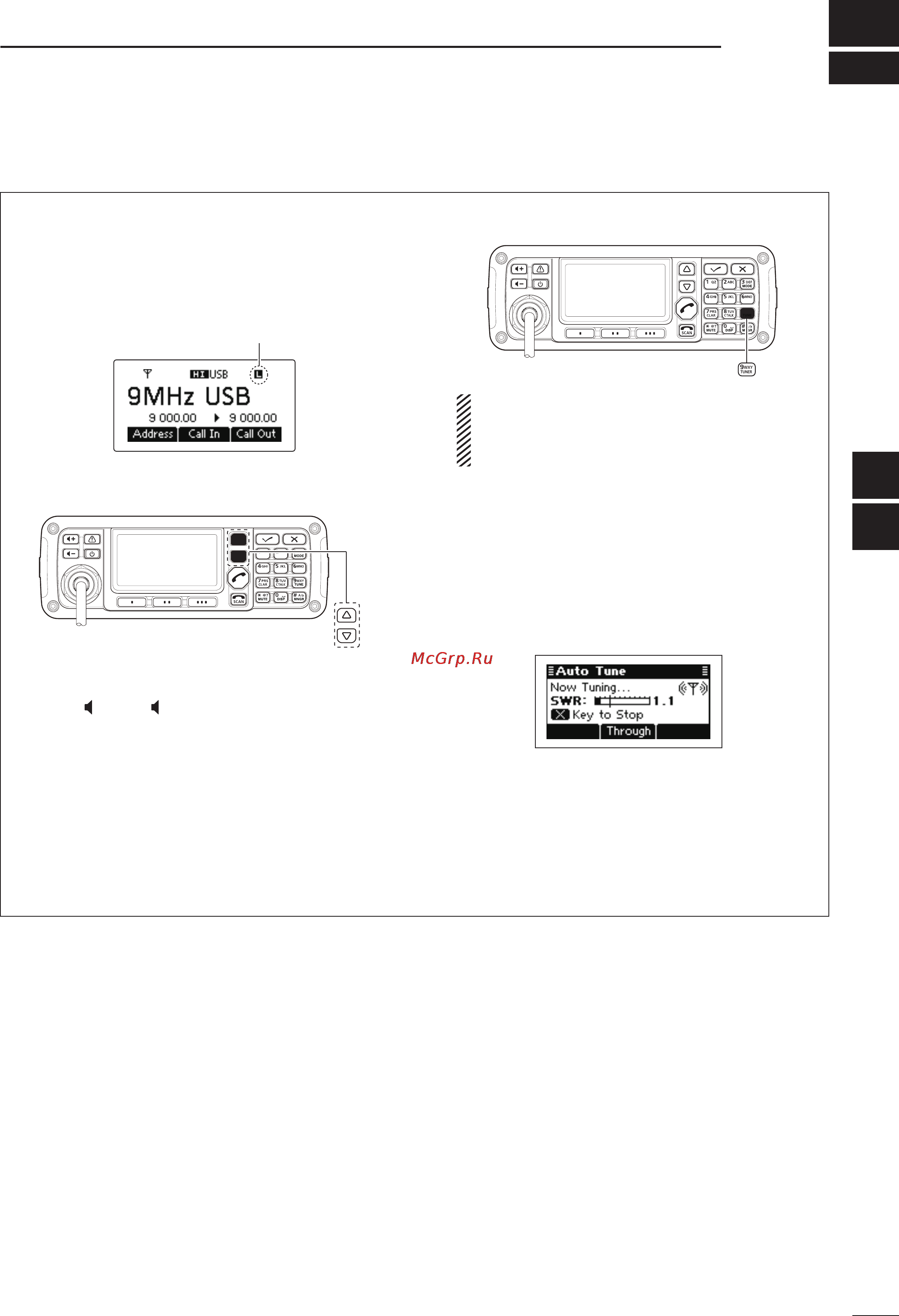

RECEIVE AND TRANSMIT
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
Basic voice transmit/receive ■
q First, check the following.
➥ The microphone and external speaker are con-
nected.
➥ No “S,” “L” or “V” mute icon appears.
• If “S,” “L” or “V” appears, push [MUTE](M) one or
more times to turn OFF the mute.
Mute icon
w Push
[
r
] or [
s
] to select the desired receive chan-
nel.
•
The S-meter shows the signal strength when a signal is
received.
e Push [ +] or [ –] to adjust the desired audio
level when receiving a signal.
• If the bass or treble of the receive audio is too strong,
push [CLAR](7) to set “Clarifier” to ON, and adjust to
obtain clear audio. (See page 14 for the Clarifier func-
tion details.)
• If the audio is distorted, select the suitable operating
mode. (See page 9 for the Mode selection details.)
r Push [TUNE](9) to enter the antenna tune mode.
• The “Auto Tune” screen appears.
NOTE:
The antenna tune mode must be set to ON by
the “Tuner” item of “Setmode.” (Default: ON)
(Main Menu > Setmode > Config)
Push t [4] to start auto tuning.
• The display shows the antenna SWR.
• If the antenna cannot be tuned after 20 seconds, the
tuning circuit is automatically bypassed.
• After tuning is nished, the auto tune automatically
stops transmitting.
• If necessary, push [8] to manually stop transmitting.
• Push [Through](§§) to turn OFF the antenna tuner.
After tuning is finished, push y [TUNE](9) again to
return to the normal operating screen.
To transmit on the channel, hold down u [PTT] on the
microphone, and speak at a normal voice level.
• The RF meter shows the output power.
Release i [PTT] to receive.
