70
6
CONNECTION AND INSTALLATION
2001 NEW 2001 NEW
■ Ground connection
The transceiver and antenna tuner MUST have an
adequate RF ground connection. Otherwise, the
overall efficiency of the transceiver and antenna
tuner installation will be reduced. Electrolysis, electri-
cal shocks and interference from other equipment
could also occur.
For best results, use a 50 or 75 mm (2 or 3 inches)
wide copper strap, and make the connection as short
as possible. Ground the transceiver and antenna
tuner to the same ground point, otherwise the volt-
age difference (at the RF level) between two ground
points may cause electrolysis.
RWARNING! When grounding to a metal hull
Use Zinc anodes to protect the hull from electroly-
sis.
Ask your dealer, technical installer or refer to a
technical book, and so on, for RF grounding de-
tails.

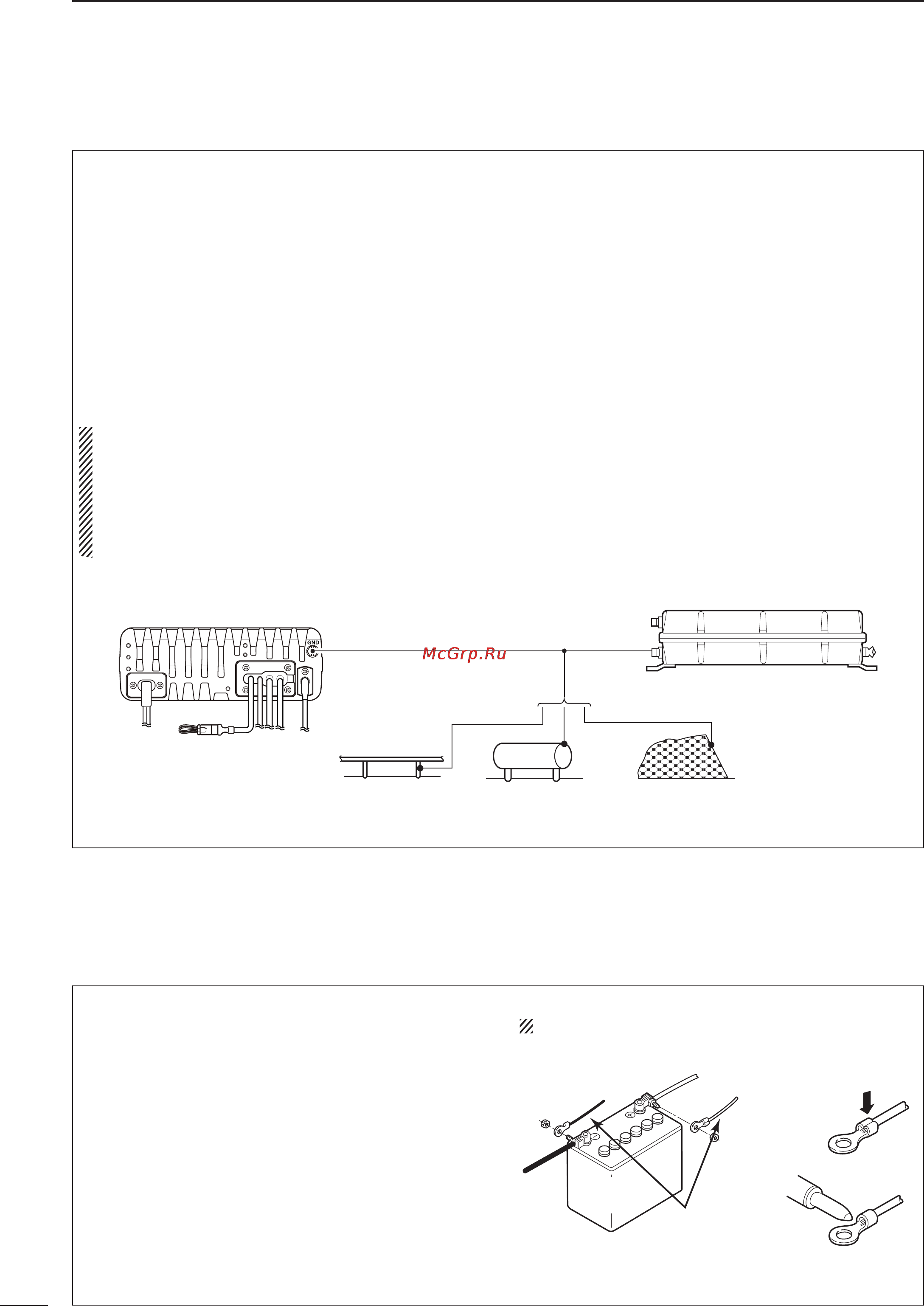

Ground system example
Best ground points
• External ground plate
• Copper screen
• Copper foil
Unusable ground points
( These connections may cause an explosion or electrical
shock)
• Gas or electrical pipe
• Fuel tank or oil-catch pan
Copper pipe Metal object Copper screen
■ Power source
The transceiver requires regulated DC power of 13.8
V and at least 28 A. There are two ways to supply
power:
• Direct connection to a 12 V battery in your vehicle
through the supplied DC power cable.
• Use a DC power supply connected to an AC outlet.
DC power cable connection
NOTE: Use terminals for the cable connection.
12 V
battery
Supplied
DC power cable
+ red
_ black
Crimp
Solder
