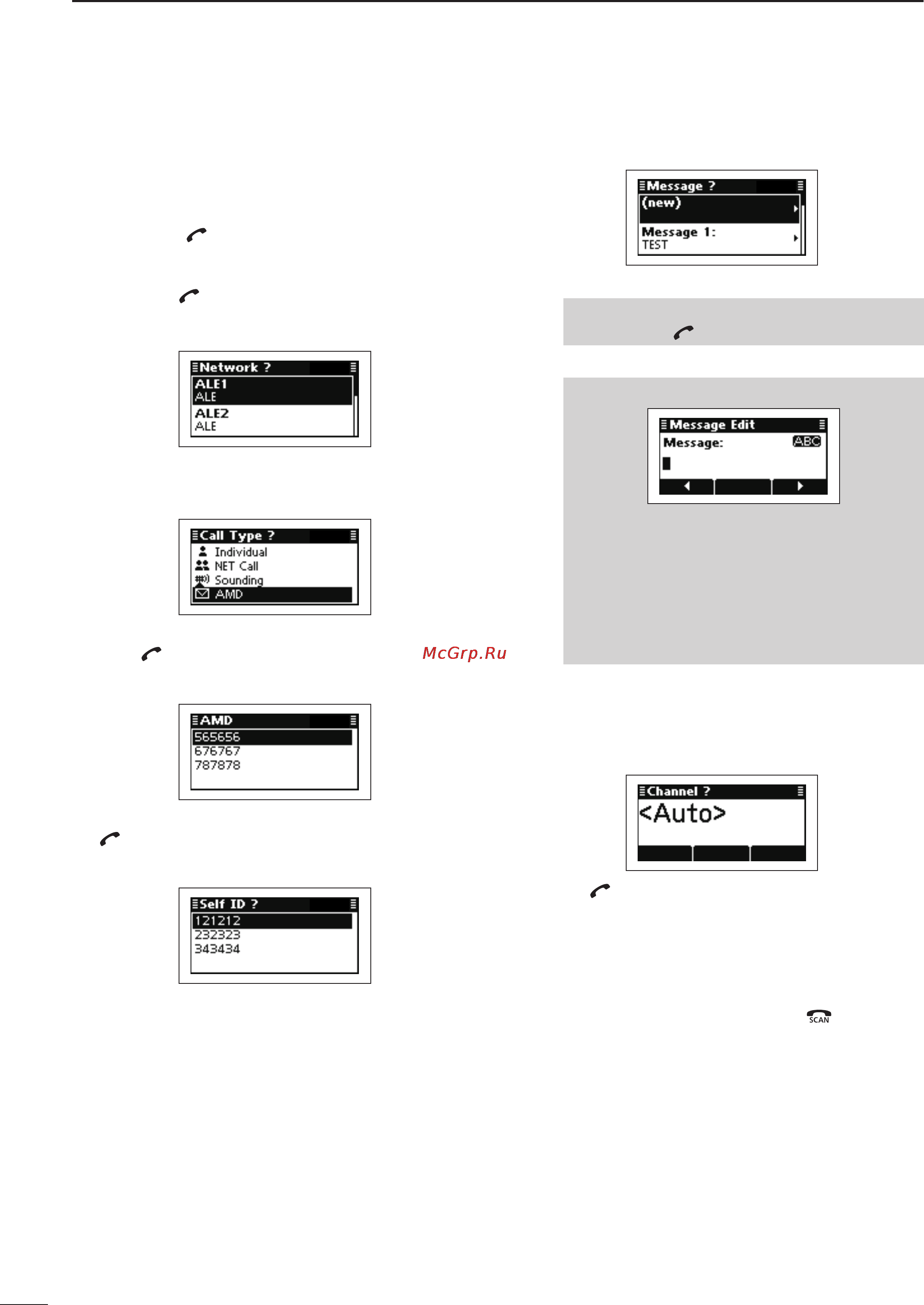

![Icom IC-F8101 [38/88] Ale amd call d](/views2/1074229/page38/bg26.png)
2001 NEW
32
4
SELCALL/ALE OPERATION
2001 NEW
The ALE AMD (Automatic Message Display) sends
and receives test messages of up to 90 characters.
•SendinganAMDcall
Hold down q [ ] for 1 second to enter the Network
selection screen.
Push w [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the ALE system must be
selected.
Push e [r] or [s] to select the Call Type to “AMD.”
• “Individual,” “NET Call,” “Sounding” and “AMD” are select-
able.
Push r [r] or [s] to select the Individual ID, and then
push [ ].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push t [r] or [s] to select the Self ID, then push
[ ].
• Only the ID that belong to the selected Network in step
w, are displayed.
Select the desired Message or edit New message. t
❍ Message selection
Push ➥ [r] or [s] select the Message, and
then push [ ].
❍ New Message input
q Hold down [4] to enter the input mode.
w Push keypad to enter the Message.
• Push [A/a](#) to toggle between the Upper case
letter and Number input mode.
• Push [8] to delete the character, symbol or num-
ber to the left of the cursor.
• Push [t](§) or [u](§§§) to move the cursor.
e Push [4] to save the Message.
• This Message is not stored in the Message list.
Push y [r] or [s] to select the Channel.
• Only the channels that belong to the selected Network in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits channels that belong to the Network.
Push u [ ] to transmit the Individual call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
• After an ALE call
After an ALE call is finished, push ➥ [ ] to transmit
the disconnect call.
• If the “Auto Start Type” item of “Setmode” is set to “Scan”
or “Termination,” the Call automatically disconnects after
the Auto Start Wait Time period has past with no opera-
tion.
(Setmode > Call)
ALE AMD call D
