28
4
SELCALL/ALE OPERATION
2001 NEW 2001 NEW
The RFDS (Royal Flying Doctor Service) emergency
call uses a 2-Tone signal for an emergency call.

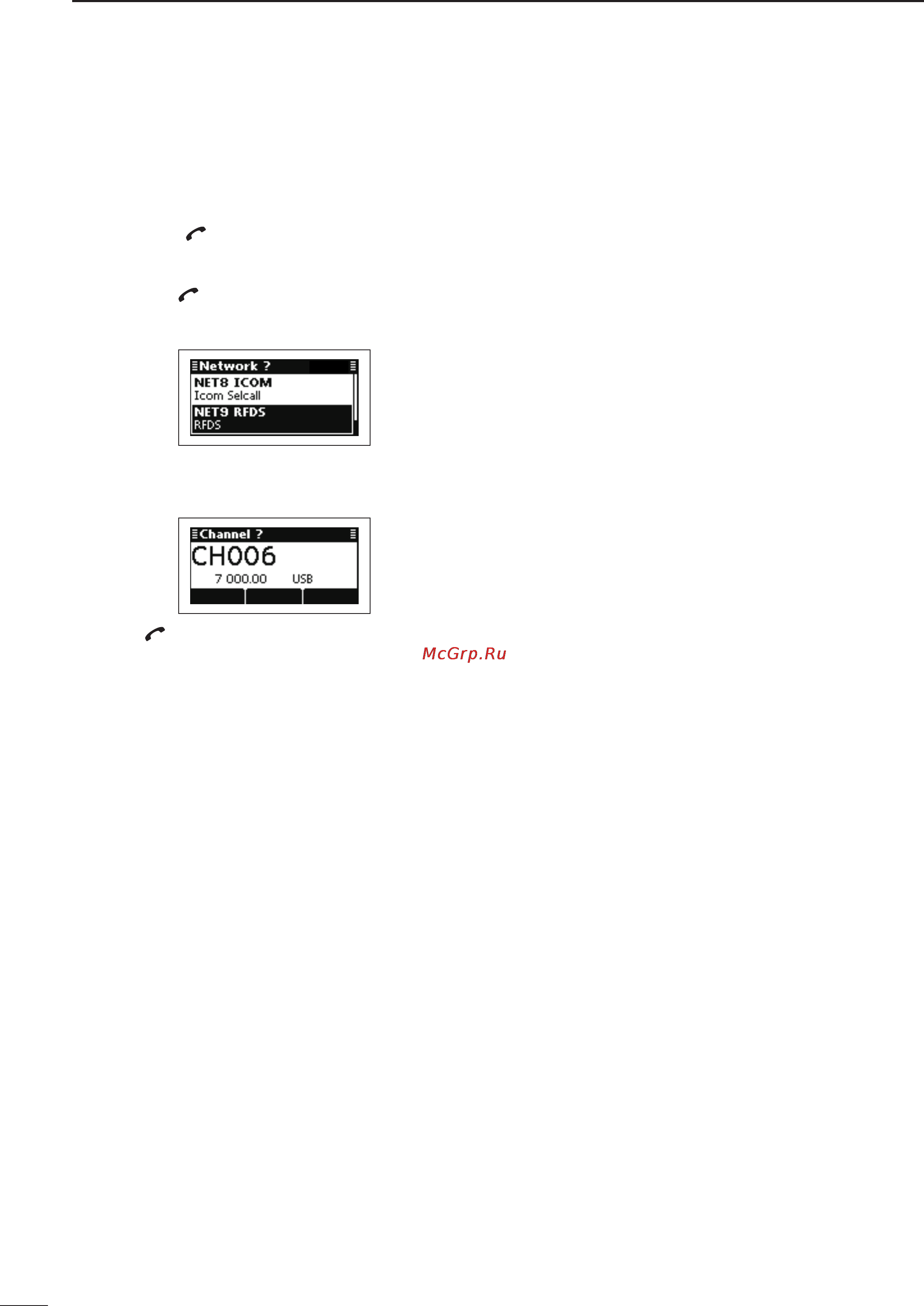

•SendinganRFDSemergencycall
Hold down q [
] for 1 second to enter the Network
selection screen.
Push w [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the RFDS systems must be
selected.
Push e [r] or [s] to select the Channel.
• Only the channels that belong to the selected Network in
step w, are displayed.
Push r [ ] to transmit the RFDS emergency call.
The call is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
RFDS emergency call (only AUS versions) D
