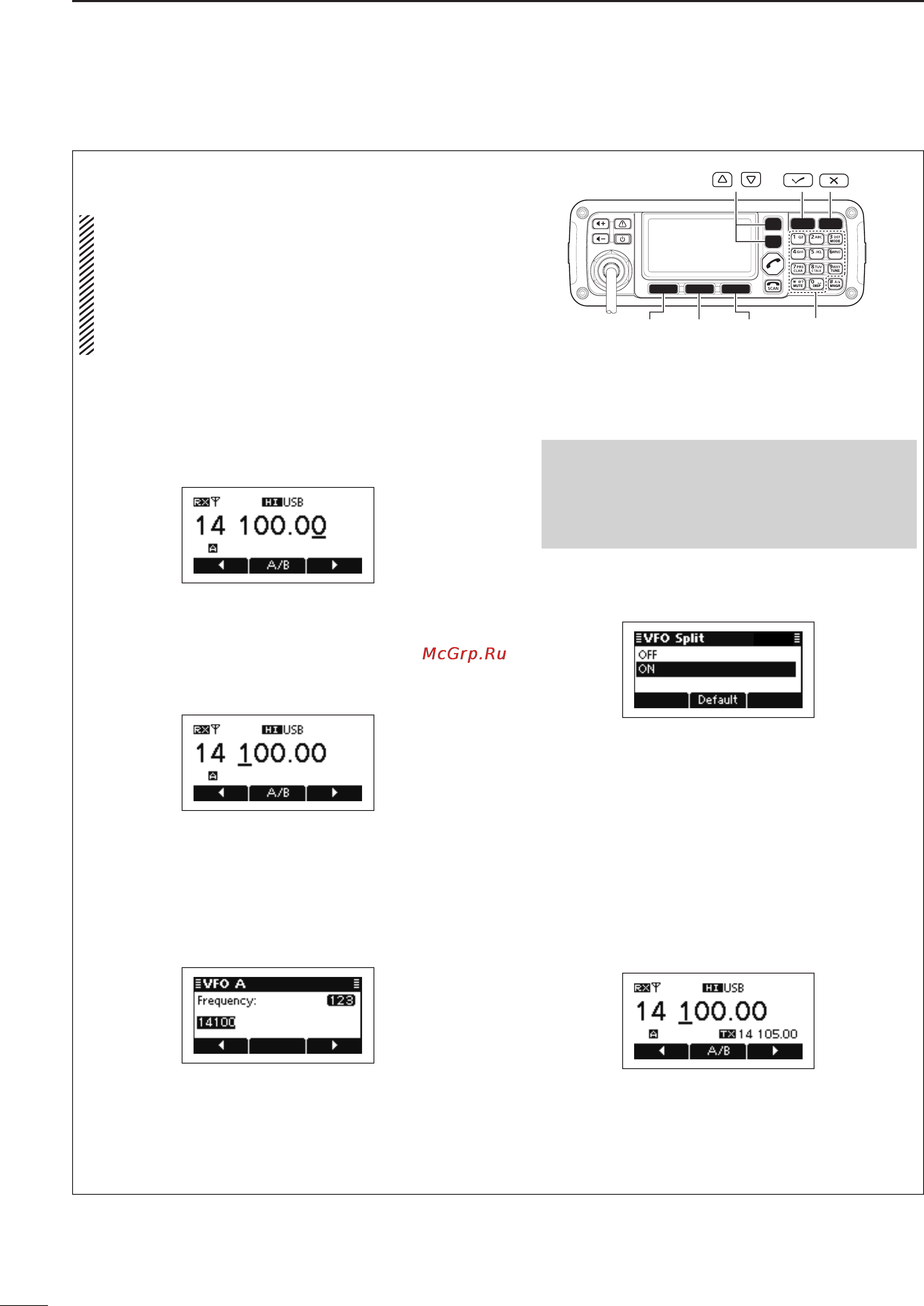

![Icom IC-F8101 [16/88] Vfo operation](/views2/1074229/page16/bg10.png)
2001 NEW
10
2
BASIC OPERATION
2001 NEW
In the VFO mode, you can set a desired operating fre-
quency, operating mode or split frequency function.
NOTE:
• The VFO mode operation can be disabled by the
“VFO Mode” item of “Setmode.”
(Main Menu > Setmode > Config)
•While in the VFO mode, the Selcall, ALE features,
Scan function or the Emergency key cannot be
used.
•EnteringtheVFOmode
Push q [8] to enter the Main Menu screen.
Push w [r] or [s] to select “VFO,” and then push
[4].
•Frequencysetting
Push q [A/B](§§) to select VFO A or VFO B.
Push w [t](§) or [u](§§§) to move the cursor to se-
lect the desired digit to be changed.
• The cursor is displayed below the selected digit
.
Push e [r] or [s] to change the digit.
•Directfrequencysetting
Push q [A/B](§§) to select VFO A or VFO B.
Hold down w [4] for 1 second to enter the direct fre-
quency input mode.
• The previously entered frequency blinks.
Push the keypad to enter the desired frequency. e
• Push [M] to enter the decimal point.
• Push [8] to delete the number.
• Push [t](§) or [u](§§§) to move the cursor.
Push r [4] to save the frequency and exit.
[��][���][�]
/
Keypad
•TurningONtheSplitfrequencyfunction
Push q [8] to enter the Main Menu screen.
Select the “VFO Split” item of “Setmode.” w
q Push [r] or [s] to select the item, and then
push [4] to open the screen.
(Setmode > Config)
w Push [r] or [s] to select “VFO Split,” and then
hold down [4] for 1 second.
Push e [r] or [s] to turn ON the function.
• If desired, hold down [Default](§§) for 1 second to re-
turn to the default setting
.
Push r [4] to save the setting, and return to the pre-
vious screen.
Push t [8] one or more times to exit the Main Menu
screen.
Enter the VFO mode. (See details to the left.) y
Push u [A/B](§§) to select VFO A or VFO B, and sep-
arately set the receive and transmit frequencies.
• The TX frequency appears below the RX frequency
.
• Push [A/B](§§) changes the VFOs between transmit
and receive.
• Hold down [A/B](§§) for 1 second to equalize the trans-
mit frequency to the receive frequency.
• To turn OFF the Split frequency function, set the “VFO
Split” item of “Setmode.” to “OFF.”
(Main Menu > Setmode > Config)
■ VFO operation
