2001 NEW
55
5
MENU SCREEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference

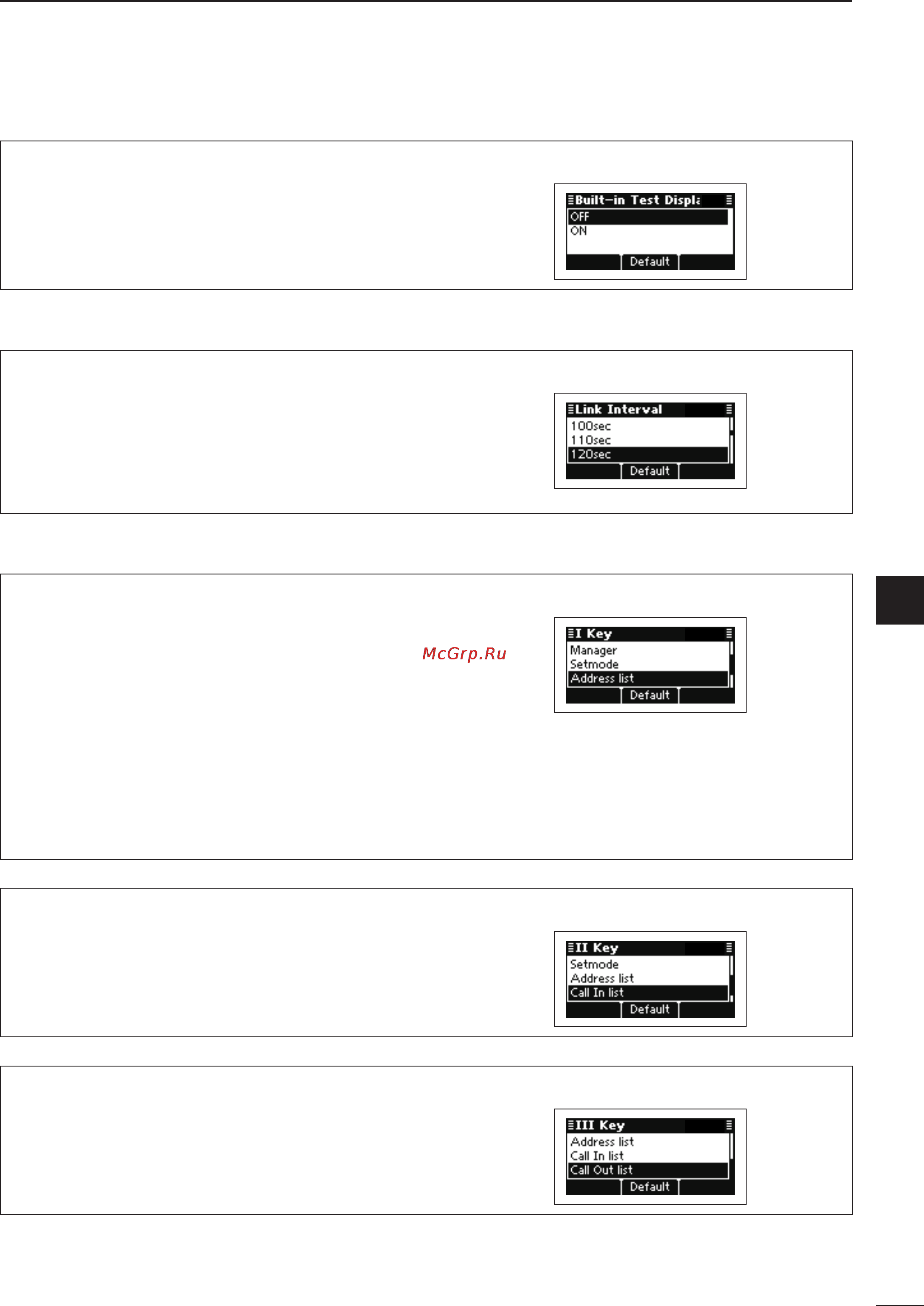

Built-in Test Display
(Default: OFF)
Select whether or not to display the device check
screen after turning ON power. (Default: OFF)
Emergency Set mode
Link Interval
(Default: 120sec)
Set the Emergency Link interval time period to be-
tween 10 and 300 seconds, in 10 seconds steps.
The transceiver will sequentially send Emergency
calls to the stations whose “Emergency Link” item is
set to ON in Address of the SELCALL.
Key Set mode
I Key
(Default: Address)
The functions listed below can be set to the [I] key.
Not assign: No function.
Menu: Push to enter the Main Menu screen.
Manager: Push to enter the Manager Menu
screen.
Setmode: Push to enter the Setmode screen.
Address list: Push to display the Selcall address
list.
Call In list: Push to display the RX history
screen.
Call Out list: Push to display the TX history screen.
II Key
(Default: Call In list)
The functions listed in the “I Key” item can be set to
the [II] key.
III Key
(Default: Call Out list)
The functions listed in the “I Key” item can be set to
the [III] key.
