46
5
MENU SCREEN
2001 NEW

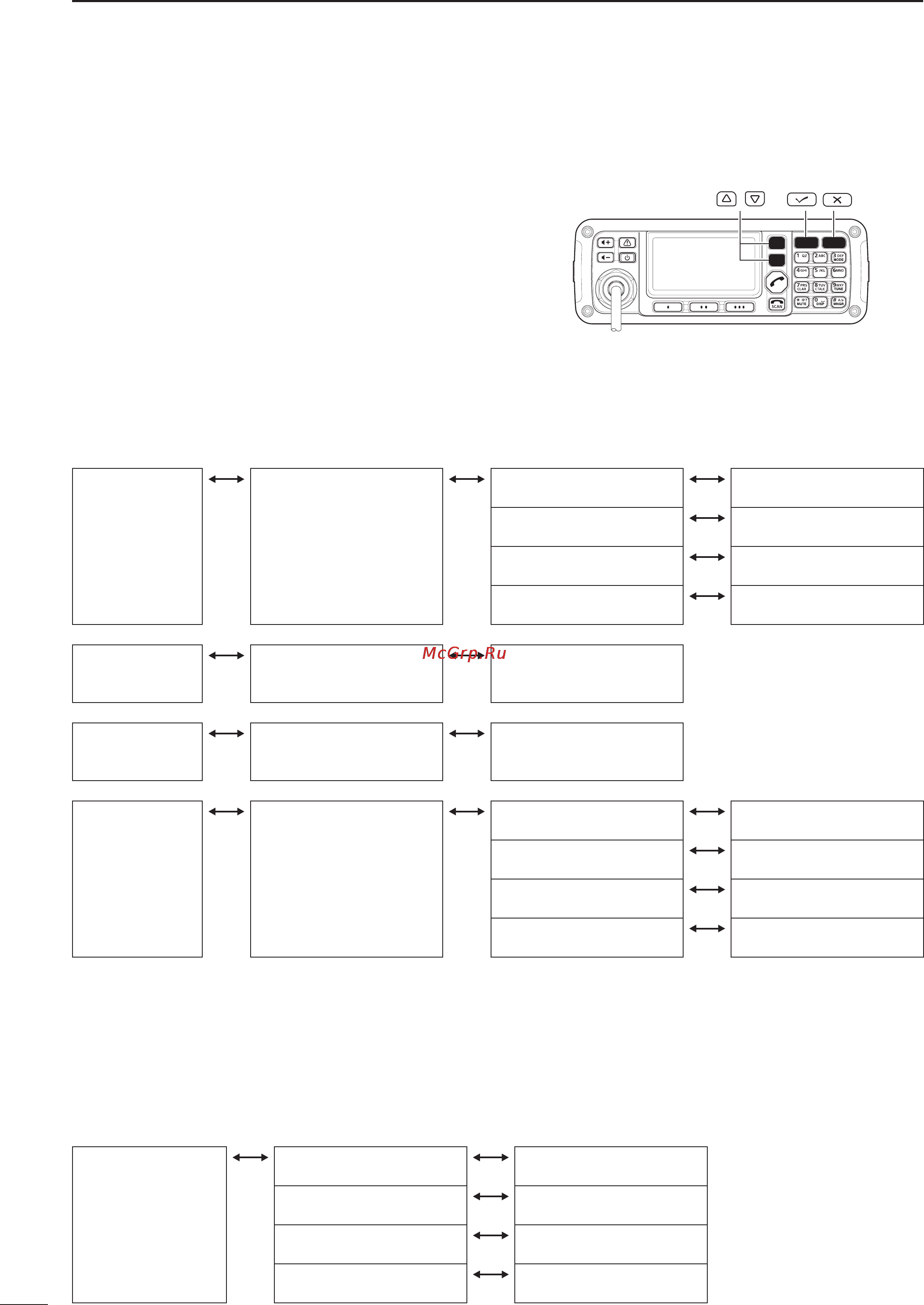

Main Menu ■
Entering the Main Menu D
Push q [8] to enter the Main Menu screen.
Push w [r] or [s] to select the item, and then push
[4] to open the screen.
• “ALE,” “Call In,” “Call Out,” “Channel,” “Network,” “Selcall,”
“Setmode” or “VFO” can be selected.
• If desired, push [8] to returns to the Memory channel
screen.
Push e [r] or [s] to select the item, and then push or
hold down [4] to display or edit the screen.
/
ALE D
Displays or edits the Entry of the list that is related to ALE.
While displaying an Entry, hold down [4] for 1 second to enter the programing mode.
Call ID Call ID
Displays the prepro-
grammed Call ID list.
ID
Displays the ID.
ID editing mode
NET ID
Displays the NET ID.
NET ID selection mode
Network
Displays the Network.
Network selection mode
Slot
Displays the Slot.
Slot selection mode
Message
Message
Displays the prepro-
grammed Message list.
Message editing mode
NET ID
NET ID
Displays the prepro-
grammed NET ID list.
NET ID editing mode
Self ID
Self ID
Displays the prepro-
grammed Self ID list.
ID
Displays the ID.
ID editing mode
NET ID
Displays the NET ID.
NET ID selection mode
Network
Displays the Network.
Network selection mode
Slot
Displays the Slot.
Slot selection mode
Channel D
Displays or edits the Memory channels.
While displaying an Entry of the memory channel, hold down [4] for 1 second to enter the editing mode.
Memory Channel
Displays the prepro-
grammed Memory
channels.
Name
Displays the Name.
Name editing mode
RX frequency
Displays the RX frequency.
RX frequency editing
mode
TX frequency
Displays the TX frequency.
TX frequency editing mode
Mode
Displays the Mode.
Mode editing mode
Call In/Call Out D
Displays the Entry of the Call In (Received Call) or Call Out (Send Call).
2001 NEW
