Icom IC-F8101 [77/88] Antenna
![Icom IC-F8101 [77/88] Antenna](/views2/1074229/page77/bg4d.png)
2001 NEW
71
6
CONNECTION AND INSTALLATION
6
■ Antenna
Most stations operate with a whip or long wire (insu-
lated back stay) antenna. However, these antennas
cannot be connected directly to the transceiver since
their impedance may not match with the transceiver
antenna connector.
RDANGER HIGH VOLTAGE!
NEVER touch the antenna element/wire while tun-
ing or transmitting.

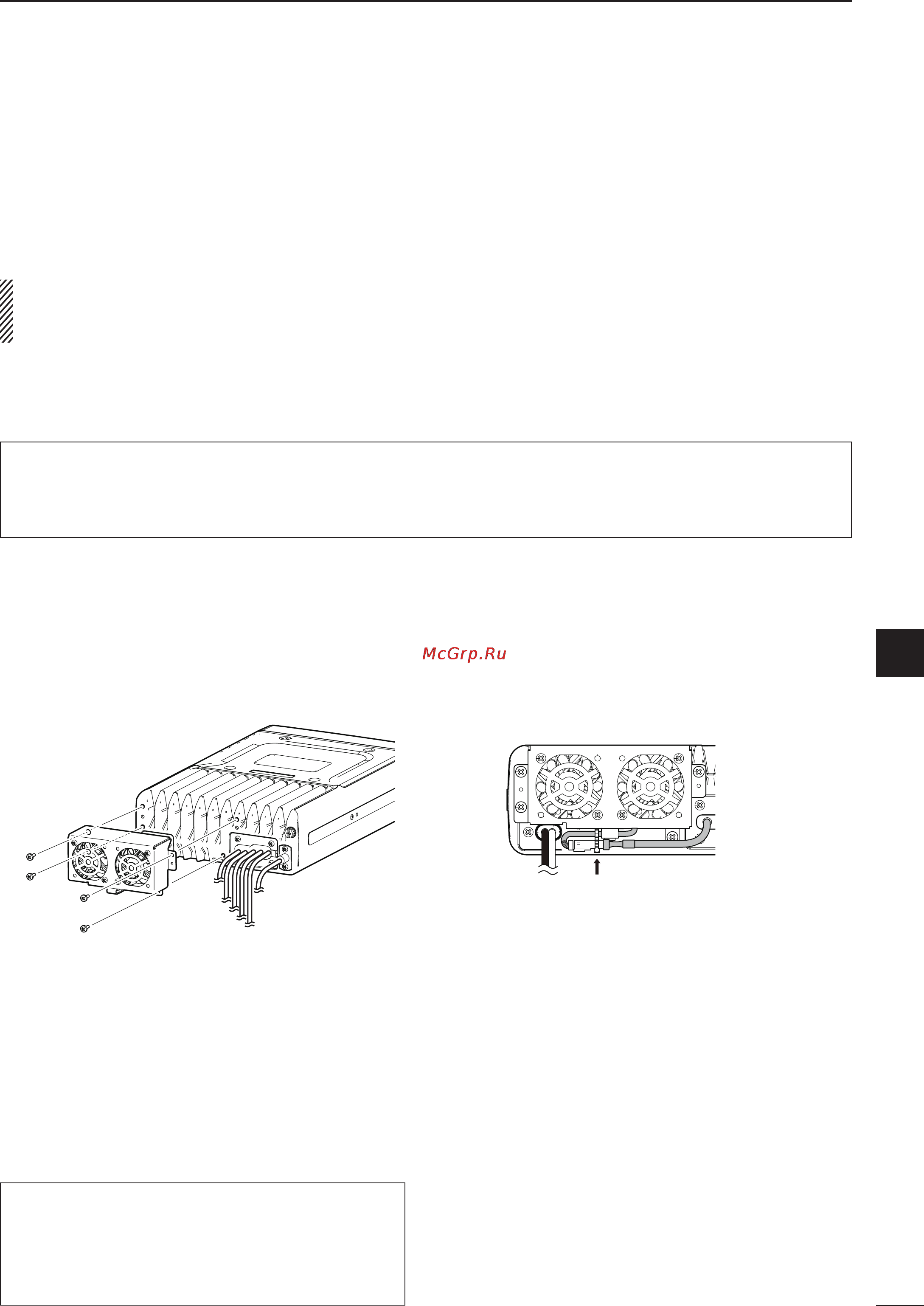

q Attach the Cooling fan to the transceiver’s heat-
sink, and tighten the 4 supplied M3 × 8 mm screws.
w Secure the connector and cables using the sup-
plied cable tie.
D AT-140 a u t o m a t i c a n t e n n a t u n e r
See page 69.
D Non-Icom tuner
Some non-Icom tuners may be used with the IC-
F8101. Please consult your dealer if you wish to use
one.
■ CFU-F8100 (Optional Cooling Fan)
For Users in California (U.S.A.)
This CR-1632 Lithium Battery contains Perchlorate
Material—special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate
