Quick Reference

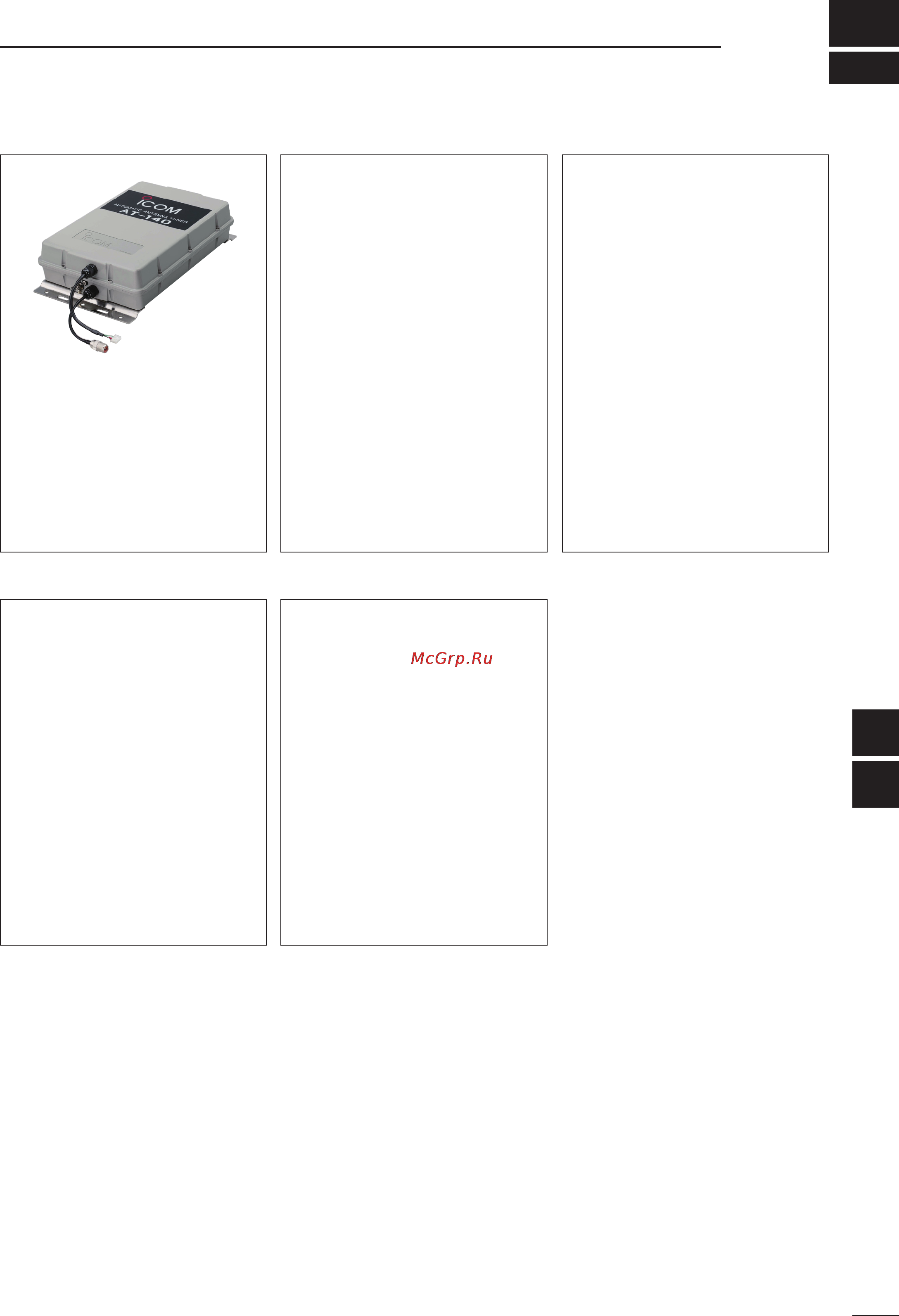

AT-140 a u t o m a t i c a n t e n n a t u n e r
Antenna and control cable receptacles
for easy installation, and a tuner bypass
function is available.
AH-740, AH-760
a u t o m a t i c t u n i n g a n t e n n a
A tuner bypass function is available.
These antennas will be available in the
near feature.
OPC-2308 s h i e l d e d c o n t r o l c a b l e
The shielded control cable protects the
transceiver from RF feedback and con-
nects a GPS unit or a modem unit to the
transceiver.
OPC-2309
s h i e l d e d c o n t r o l c a b l e
The shielded control cable protects the
transceiver from RF feedback and ex-
tends the separation between the AT-140
and the transceiver up to 10 meters (32.8
feet).
CFU-F8100 c o o l i n g f a n
MB-126 m o u n t i n g b r a c k e t
RMK-6 s e pa r at i o n k i t
The same as that supplied with the IC-
F8101 Separated Type.
Allows you to install the transceiver front
panel separate from the Main unit for op-
erating convenience. The RMK-6 requires
either the OPC-607, OPC-608, OPC-609
or OPC-726 separation cable.
OPC-607/OPC-608/OPC-609/OPC-726
s e pa r at i o n c a b l e
OPC-607: 3 m (9.8 ft)
OPC-608: 8 m (26.2 ft)
OPC-609: 1.9 m (6.2 ft)
OPC-726: 5 m (16.4 ft)
SP-10, SP-25, SP-30, SP-35/35L
e x t e r n a l s p e a k e r s
A mounting bracket is supplied with the
speaker.
Impedance: 4 Ω
Max. AF input: 5 W (SP-10)
7 W (SP-25, SP-35/35L)
30 W (SP-30)
HM-192 #12
r e m o t e c o n t r o l m i c r o p h o n e
The same as that supplied with the IC-
F8101 Remote control microphone type.
Allows you to remotely control the trans-
ceiver with the microphone. The HM-192
requires either the OPC-607, OPC-608,
OPC-609 or OPC-726 separation cable.
HM-193
h a n d m i c r o p h o n e
The same as that supplied with the IC-
F8101 One package type or Separated
Type.
