25
4

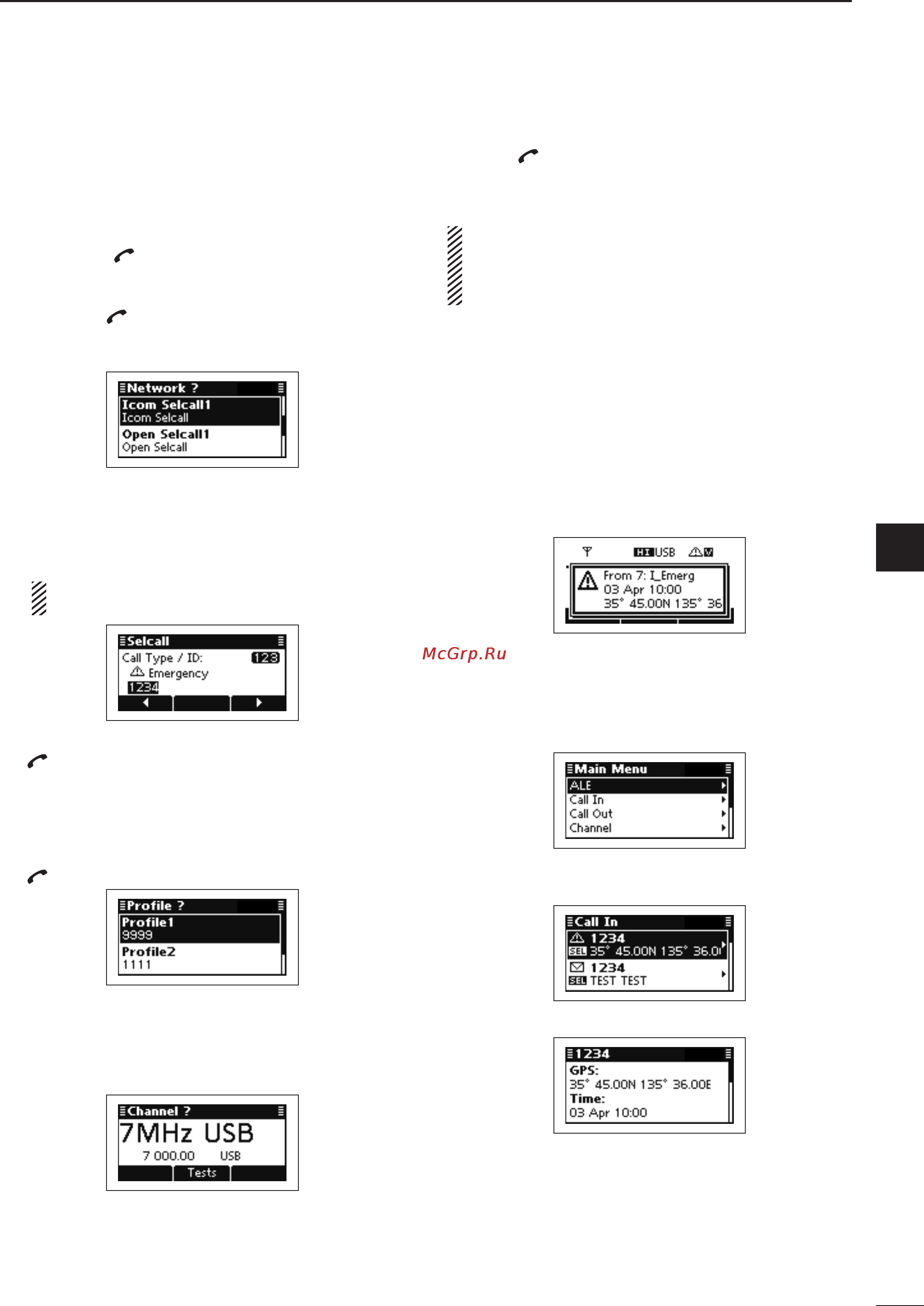

SELCALL/ALE OPERATION
4
2001 NEW
The Emergency call allows you to broadcast an emer-
gency signal with your own position information.
•SendinganEmergencycall
Hold down q [ ] for 1 second to enter the Network
selection screen.
Push w [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the Icom Selcall or Open
Selcall systems must be selected.
Push e [r] or [s] to select the Call Type to “Emer-
gency.”
• “Selective,” “Phone,” “Message,” “Send Position,” “Get Posi-
tion,” “Get Status,” “Emergency,” “Channel Test” and “Stun”
are selectable.
The Get Status call is selectable in the Icom Selcall,
and the Stun call is selectable in the Open Selcall.
Push keypad to enter the Call ID, and then push r
[ ].
• The previously entered Call ID is displayed.
• Push [t](§) or [u](§§§) to move the cursor.
• Push [8] to delete the digit to the left of the cursor.
• This Call ID is not stored in the Call ID list.
Push t [r] or [s] to select the Profile, then push
[ ].
Push y [r] or [s] to select the Channel.
• Only the channels that belong to the selected Network in
step w, are displayed.
• If desired, push [Tests](§§) to transmit the Channel Test
call in this step.
Push u [ ] to transmit the Emergency call. The call
is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also make an Emergency call when the Ad-
dress screen is displayed. In this case, you can skip
several steps, see page 29 for the Simple Selcall
operation details.
•ReceivingEmergencycalls
When your transceiver receives an Emergency call
with your individual ID, it automatically responds by
transmitting. The received Selcall is stored in the Call
In memory.
After an Emergency call is received, transceiver dis- q
plays the station’s position and its time.
Push any key to return to the normal operating w
screen.
Push e [8] to enter the Main Menu screen.
Push r [r] or [s] to select “Call In,” and then push
[4].
Push t [r] or [s] to select the desired Call, and then
push [4].
Push y [r] or [s] to select the information.
Push u [8] twice to return to the normal operating
screen.
Emergency call D
