Icom IC-F8101 [83/88] Fuse replacement
![Icom IC-F8101 [83/88] Fuse replacement](/views2/1074229/page83/bg53.png)
77
6
CONNECTION AND INSTALLATION
2001 NEW
6

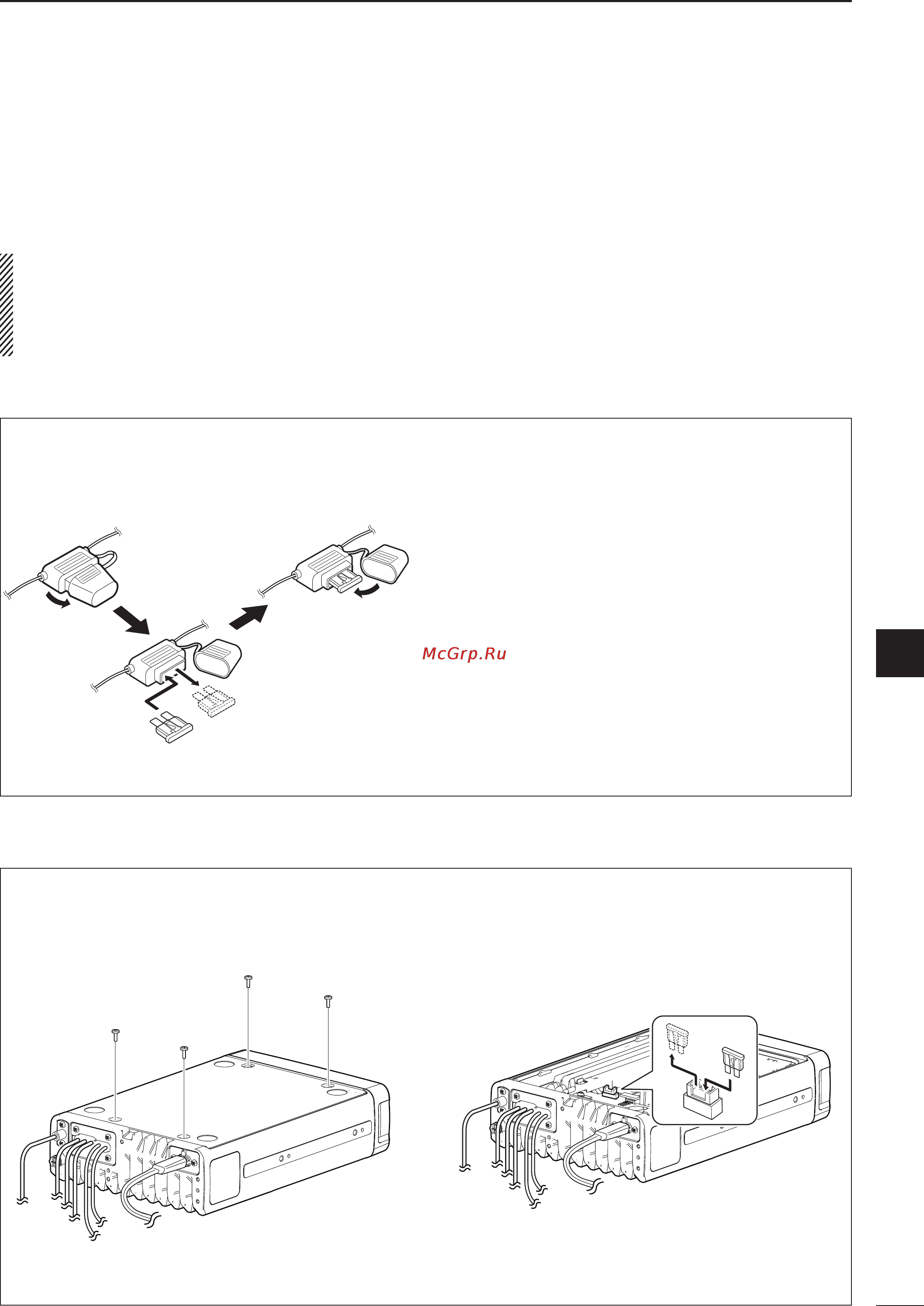

■ Fuse replacement
If a fuse blows, or the transceiver stops functioning,
find the source of the problem, and repair it. Then re-
place the damaged fuse with a new, adequately rated
fuse.
RWARNING! Turn OFF the power and discon-
nect the DC power cable from the transceiver before
performing any work on the transceiver. Otherwise,
there is a danger of electric shock, equipment dam-
age and/or fire or injury.
The IC-F8101 has two fuse types installed for trans-
ceiver protection.
• DC power cable ........................................ ATC 30 A
• Circuitry fuse .............................................. ATC 5 A
D Internal fuse replacement
q Turn the transceiver upside down.
w Unscrew 4 screws from the bottom cover, then re-
move the cover.
e Replace the circuitry fuse as shown in the diagram
below.
• Use the supplied ATC 5 A fuse.
r Reattach the bottom cover to its original position.
D DC power cable fuse replacement
Refer to the figure below for the DC power cable fuse
replacement.
ATC 30 A fuse
