Icom IC-F8101 [59/88] Quick reference
![Icom IC-F8101 [59/88] Quick reference](/views2/1074229/page59/bg3b.png)
2001 NEW
53
5
MENU SCREEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

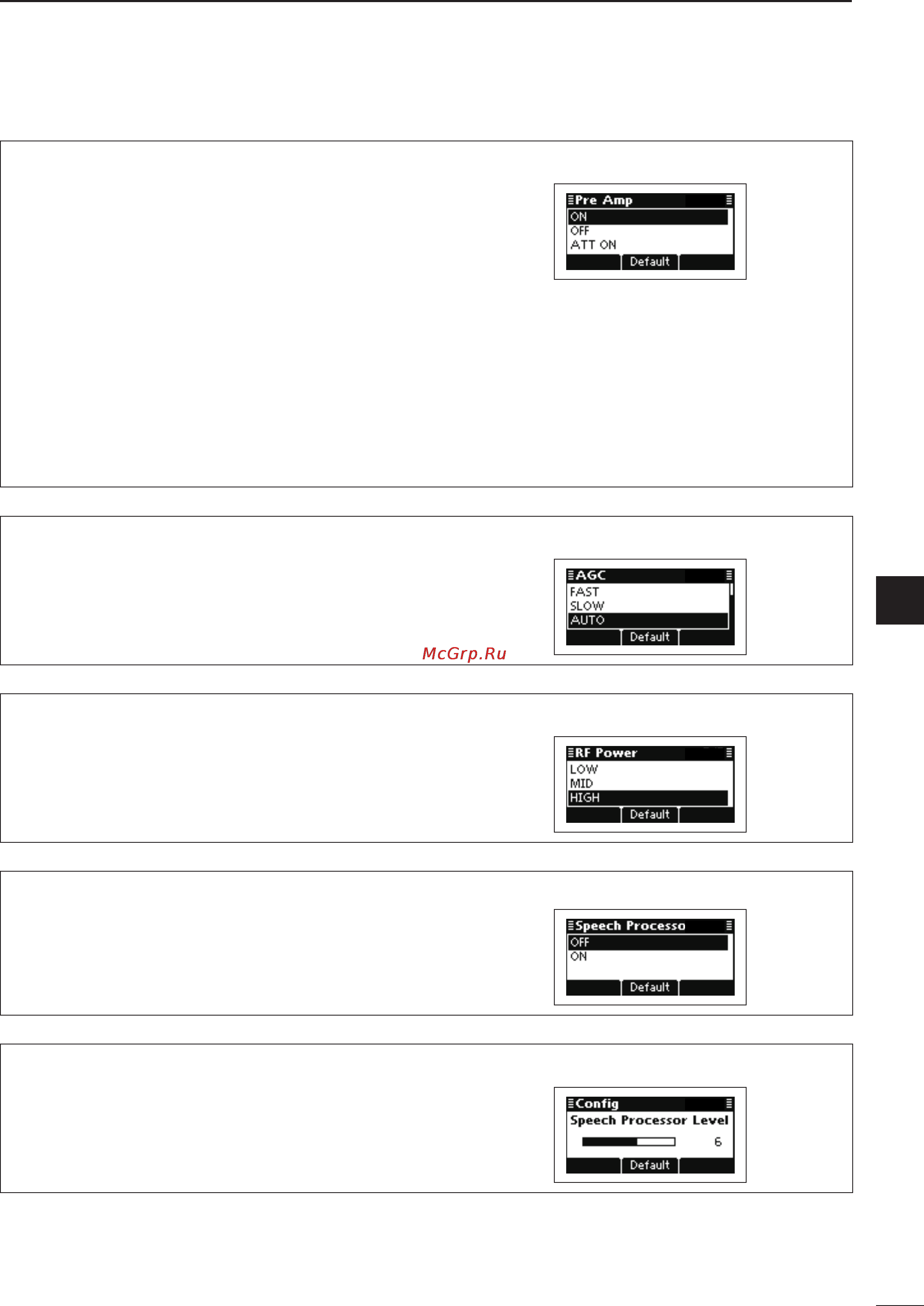

Quick Reference
Pre Amp
(Default: ON)
Turn ON the Preamplifier function or Attenuator func-
tion.
ON: Turns ON the Preamplifier function, which
amplifies received signals in the receiver
front end, to improve the S/N ratio and the
sensitivity.
OFF: Turns OFF both functions.
ATT ON: Turns ON the Attenuator function, which
prevents a desired signal from being
distorted when very strong signals are
near the desired frequency, or when very
strong electromagnetic fields, such as
from broadcast stations, are near your lo-
cation.
AGC
(Default: AUTO)
Set the Automatic gain control settings to FAST,
SLOW, AUTO or OFF.
RF Power
(Default: HIGH)
Set the transmit output power to LOW, MID or HIGH.
Speech Processor
(Default: OFF)
Turns the Speech Processor function ON or OFF.
Speech Processor Level
(Default: 6)
Adjust the Speech Processor Level to between 0
(Minimum) and 10 (Maximum), in 1 digit steps.
The set level is effective only when the Speech Pro-
cessor is turned ON.
