29
4
SELCALL/ALE OPERATION
4
2001 NEW

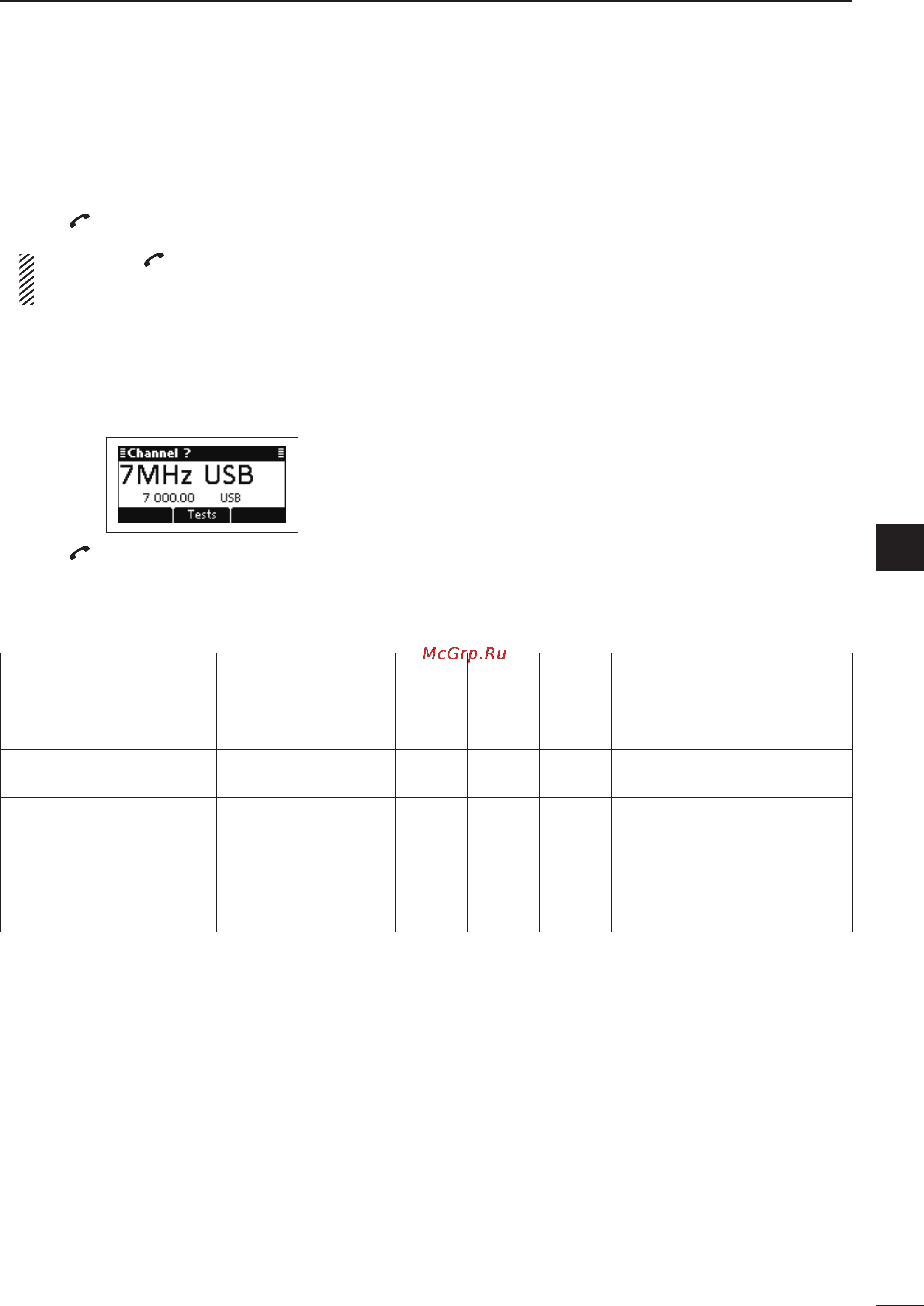

Simple Selcall operation D
The Simple Selcall mode is convenient to transmit the
often used Selcalls.
Push q [ ] to enter the Simple Selcall mode.
• Depending on the Entry, the contents are skipped.
Holding down
[ ] enters
the normal Selcall mode.
See pages 19 to 28 for the normal Selcall operation de-
tails.
After setting is finished, push w [r] or [s] to select
the Channel.
• Only the channels that belong to the selected Network,
are displayed.
• If desired, push [Tests](§§) to transmit the Channel Test
call in this step.
Push e [ ] to transmit the Call.
• While calling, push [PTT] to cancel the call.
Depending on the Entry, following settings are required.
(4 : Setting is required. — : The contents is skipped.)
Screen
(Entry)
Call system/
Network
Call type/
Call ID
Phone
Link*
4
Message
*
5
Self ID
*
3
Channel
*
6
Note
Address
Emergency Link
—*
1
—*
3
— — —
4
The skipped contents are used
from the preprogrammed setting.
Call In
Call Out
—*
1
—*
3
— — —
4
The skipped contents are used
from the preprogrammed setting.
Phone Link —*
1
4 4
— —
4
The Call type is always set to
Phone.
The skipped contents are used
from the preprogrammed setting.
Other screen — *
2
4 4 4
—
4
The skipped contents are used from
the previously transmitted Calls.
*
1
When the setting of the Entry is effective (Call is
possible), the content is skipped.
*
2
Priority Network is used.
*
3
When the preprogrammed ID or previously used ID
exists in the selected entry, the Call automatically
selects the ID and skips the contents.
*
4
Only Phone call.
*
5
Only Message call.
*
6
Only the channels that belong to the Network, are
displayed.
