13
3
RECEIVE AND TRANSMIT
3

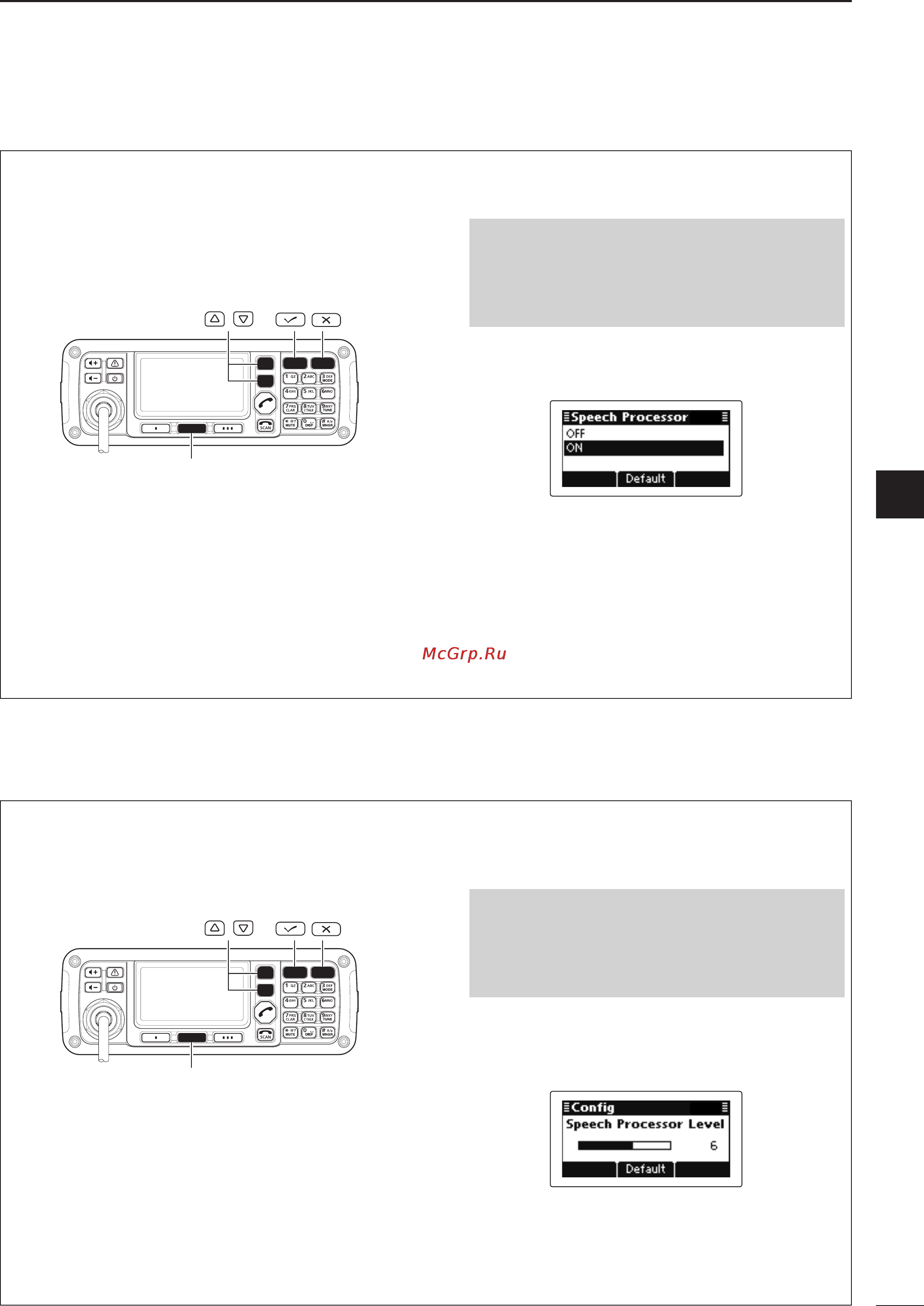

Speech Processor D
The IC-F8101 has a built-in, low distortion Speech
Processor circuit. This circuit increases your average
talk power in the SSB mode, and is especially useful
when the receiving station is having difficulty hearing
your audio.
[Default]
/
Push q [8] to enter the Main Menu screen.
Select the “Speech Processor” item of “Setmode.” w
q Push [r] or [s] to select the item, and then
push [4] to open the screen.
(Setmode > Config)
w Push [r] or [s] to select “Speech Processor,”
and then hold down [4] for 1 second.
Push e [r] or [s] to turn ON the function.
• If desired, hold down [Default](§§) for 1 second to re-
turn to the default setting
.
Push r [4] to save the setting, and return to the pre-
vious screen.
• If desired, adjust the Speech Processor Level. See the
next topic for details
.
Push t [8] one or more times to exit.
Push y [MODE](3) one or more times to select the
USB or LSB mode.
Hold down u [PTT] on the microphone, and speak at
a normal voice level.
Speech Processor Level D
The Speech Processor level must be properly adjust-
ed so that your signal is not distorted when transmit-
ted.
[Default]
/
Push q [8] to enter the Main Menu screen.
Select the “Speech Processor Level” item of “Set- w
mode.”
q Push [r] or [s] to select the item, and then
push [4] to open the screen.
(Setmode > Config)
w Push [r] or [s] to select “Speech Processor
Level” and then hold down [4] for 1 second.
Push e [r] or [s] to adjust the desired level to be-
tween 0 and 10.
• If desired, hold down [Default](§§) for 1 second to re-
turn to the default setting
.
Push r [4] to save the setting, and return to the pre-
vious screen.
Push t [8] one or more times to exit.
