50
5

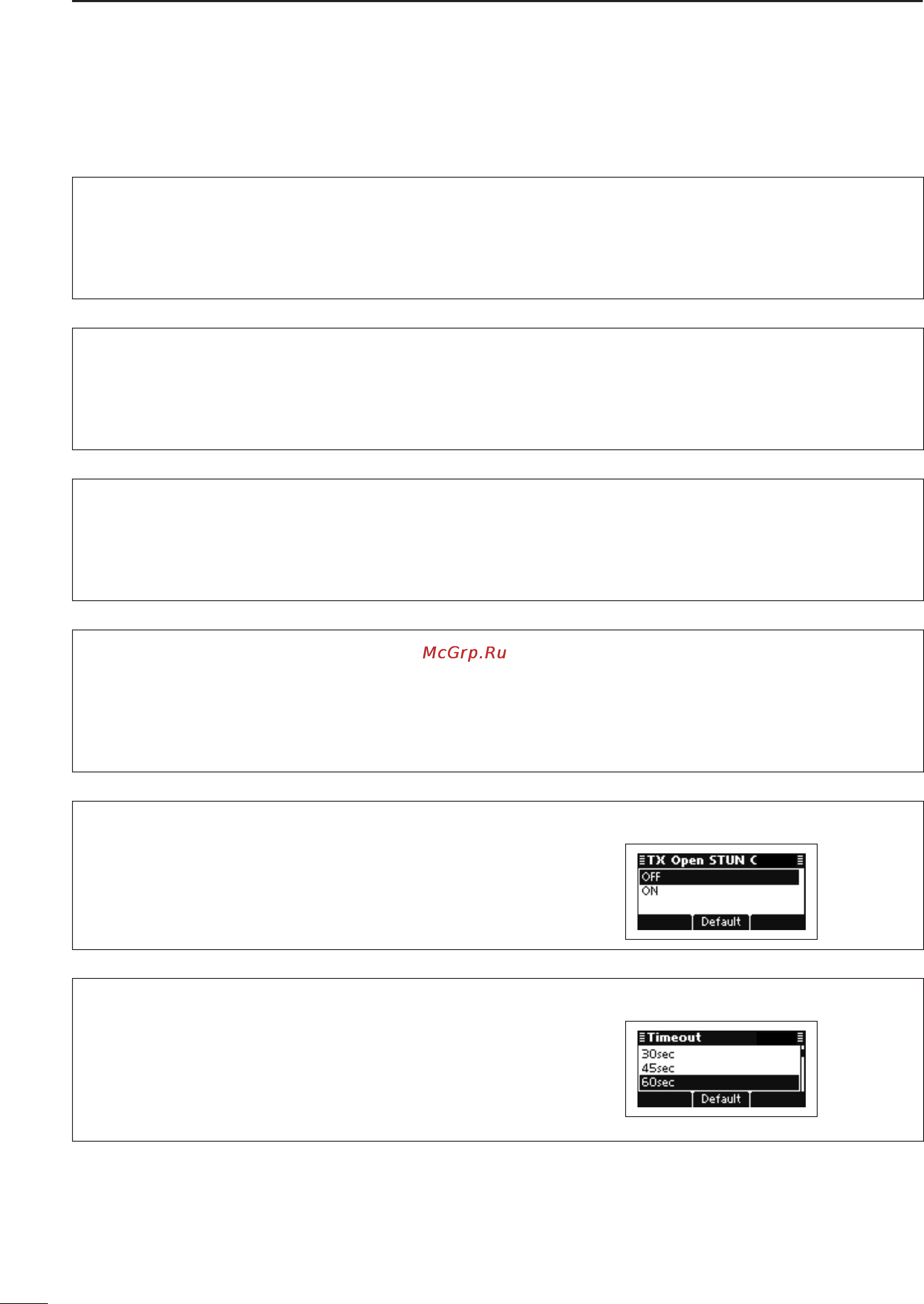

MENU SCREEN
2001 NEW 2001 NEW
Call Set mode
Accept Icom Selcall
This item allows the transceiver to receive and make
Icom Selcalls.
This setting is permanently set to “ON.”
Accept Open Selcall
This item allows the transceiver to receive and make
Open Selcalls.
This setting is permanently set to “ON.”
Accept ALE
This item allows the transceiver to receive and make
ALE (Automatic Link Establishment) calls.
This setting is permanently set to “ON.”
Accept RFDS (Only AUS version)
This item allows the transceiver to receive and make
RFDS (Royal Fling Doctor Service) emergency calls.
This setting is permanently set to “ON” for the AUS
version, or OFF for other versions.
TX Open STUN Call
(Default: OFF)
This item allows the transceiver to make STUN calls.
Timeout
(Default: 60sec)
Select the RX Timeout timer between 15 and 300
seconds in 15 seconds steps, or OFF.
After transmitting a Get Position or Get Status com-
mand, the transceiver waits for a reply during this set
period.
Setmode D (Continued)
