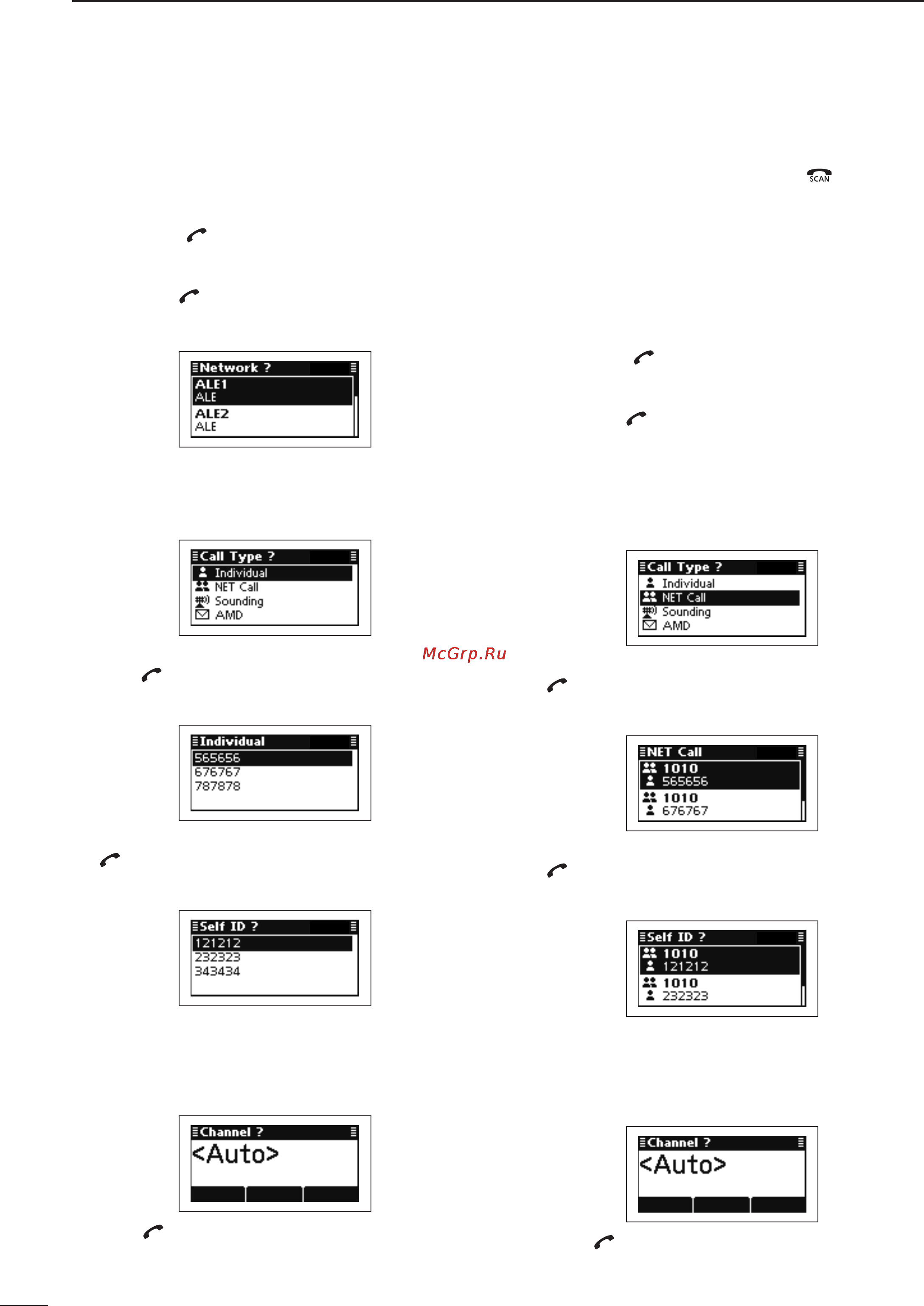

30
4
SELCALL/ALE OPERATION
2001 NEW 2001 NEW
Automatically establish a communication link by using
the ALE table.
•SendinganIndividualcall
Hold down q [ ] for 1 second to enter the Network
selection screen.
Push w [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the ALE system must be
selected.
Push e [r] or [s] to select the Call Type to “Individ-
ual.”
• “Individual,” “NET Call,” “Sounding” and “AMD” are select-
able.
Push r [r] or [s] to select the Individual ID, and then
push [ ].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push t [r] or [s] to select the Self ID, then push
[ ].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push y [r] or [s] to select the Channel.
• Only the channels that belong to the selected Network in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits channels that belong to the Network.
Push u [ ] to transmit the Individual call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
• After an ALE call
After an ALE call is finished, push ➥ [ ] to transmit
the disconnect call.
• If the “Auto Start Type” item of “Setmode” is set to “Scan”
or “Termination,” the Call automatically disconnects after
the Auto Start Wait Time period has past with no opera-
tion.
(Setmode > Call)
•SendingaNetcall
Hold down q [ ] for 1 second to enter the Network
selection screen.
Push w [r] or [s] to select the desired Network, and
then push [ ].
• The Networks that belong to the ALE system must be
selected.
Push e [r] or [s] to select the Call Type to “NET
Call.”
• “Individual,” “NET Call,” “Sounding” and “AMD” are select-
able.
Push r [r] or [s] to select the NET ID, and then push
[ ].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push t [r] or [s] to select the Self ID, then push
[ ].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push y [r] or [s] to select the Channel.
• Only the channels that belong to the selected Network in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits channels that belong to the Network.
Push u [ ] to transmit the NET Call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
ALE call D
