2001 NEW
9
2
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

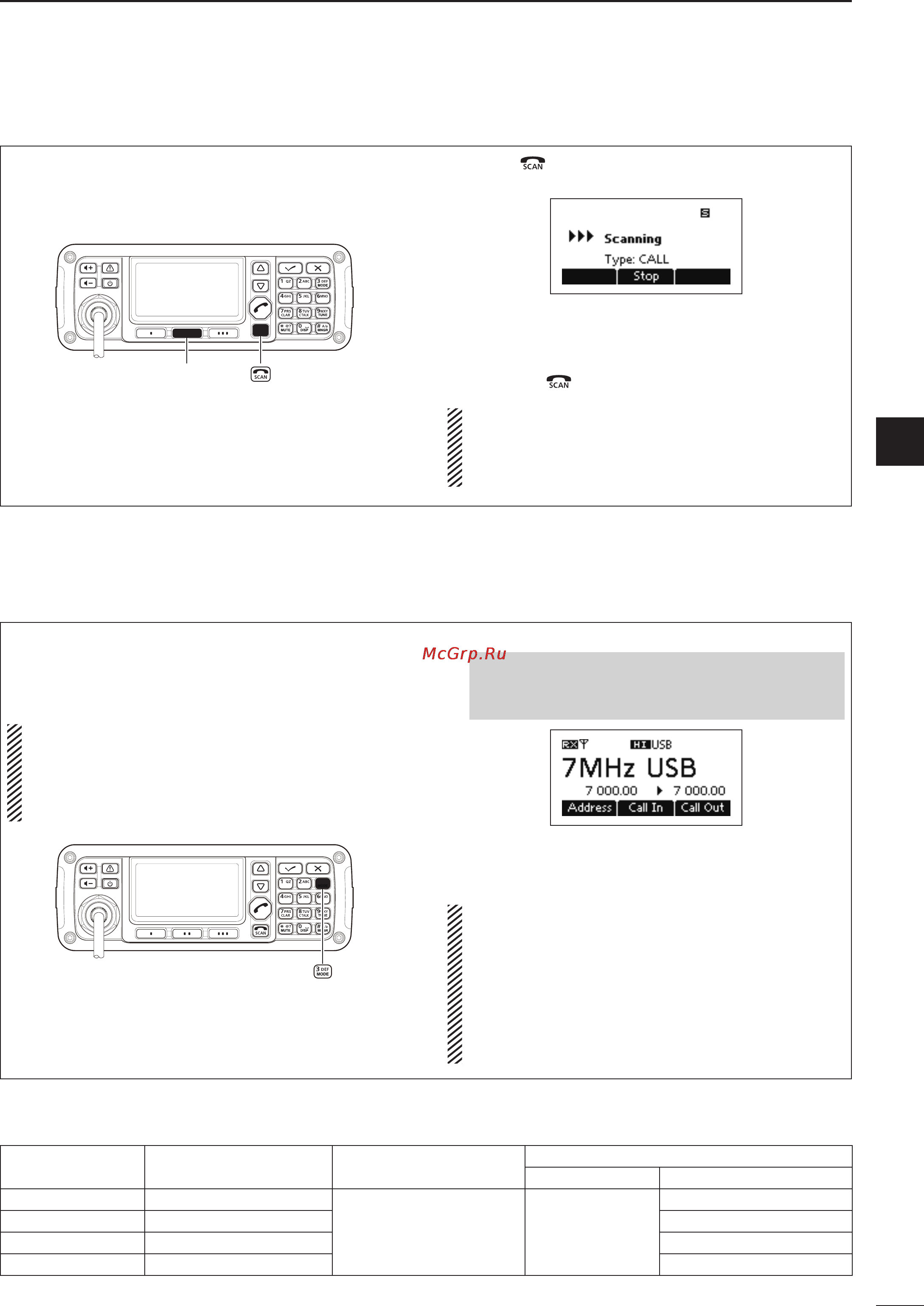

Quick Reference
The scan function repeatedly scans programmed
channels. This function is convenient to check for
calls on multiple channels.
[Stop]
q Push [ ] to start a scan.
• “Scanning” and the Scan type are displayed.
w When a signal is received, the scan pauses on
that channel.
e Push [Stop](§§) to cancel the scan.
• Pushing [ ] also cancels the scan.
NOTE: The scan resume setting, the action after
receiving a signal, can be changed by the “Voice
Scan Resume” item of “Setmode.”
(Main Menu > Setmode > Config)
■ Scan function
The following modes are selectable in the IC-F8101:
LSB, USB, CW, AM, RTTY, LSBD1/2/3 and
USBD1/2/3.
NOTE: Only the preprogrammed operating modes
are selectable.
The selectable operating mode can be changed in
the “Mode” item of “Setmode.”
(Main Menu > Setmode)
Select the Display mode. q
q Push [8] to enter the Main Menu screen.
w Push [r] or [s] to select “Channel” or “VFO,”
and then push [4].
w Push [Mode](3) one or more times to select the
desired mode.
• The selected mode icon appears at the top of the display.
NOTE:
• On the Memory Channel display, the selected
operating mode can be used only temporarily.
When the channel is changed, the transceiver
returns to the preprogrammed operating mode.
• Depending on the transceiver version or prepro-
gramming, some operating modes may not be
selectable or usable except in receive.
■ Mode selection
For your reference D
Mode
TX/RX offset frequency
[Hz]
RX filter band width
[Hz]
Modulation input
MIC PTT ON MODEM PTT ON
LSB, USB 1500 (Fixed)
100 to 3000 (100Hz step) MIC
TC4, ACC, USB
LSBD1, USBD1 1500, 1650, 1800 TC4, ACC, USB
LSBD2, USBD2 1500, 1650, 1800 TC4, ACC, USB
LSBD3, USBD3 1500, 1650, 1800 TC4, ACC, USB
Default settings are shown in bold.
