38
5
MENU SCREEN
2001 NEW
•ALE

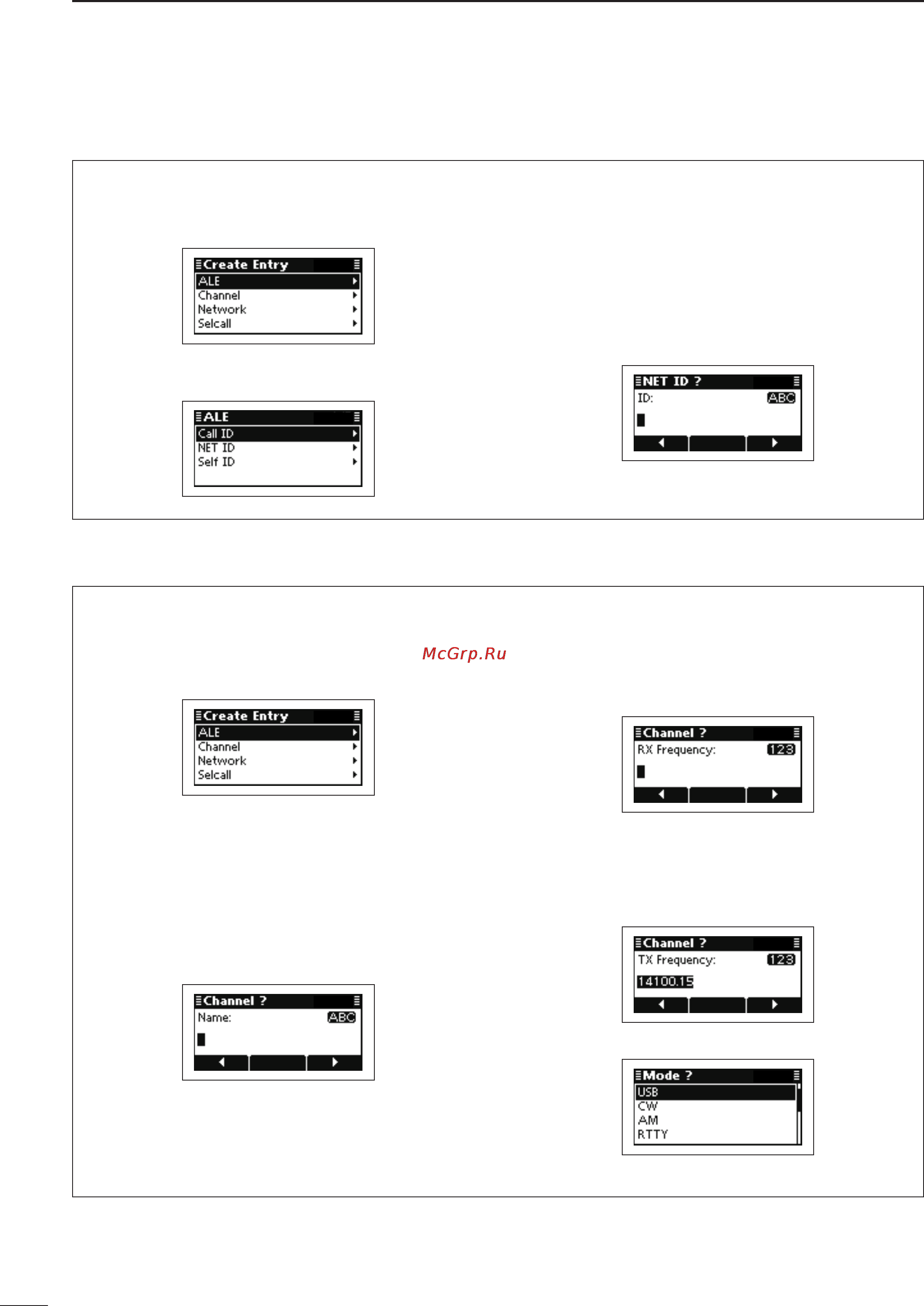

Making a NET ID
Push q [r] or [s] to select “ALE,” and then push
[4].
Push w [r] or [s] to select a NET ID, and then push
[4] to enter the input mode.
Push Keypad to enter the desired ID, and then e
push [4].
• Up to 15 characters can be entered.
• Usable characters are A to Z, 0 to 9, ? and @.
• Push [A/a](#) to toggle between the Alphabet (Upper
case letter) input mode and Number input mode.
• Push [8] to delete the character, symbol or number to
the left of the cursor.
• Push [t](§) or [u](§§§) to move the cursor.
Push r [4] to save the ID and exit.
•Channel
A new memory channel can be created.
Push q [r] or [s] to select “Channel,” and then push
[4] to enter the input mode.
Push Keypad to enter the Channel name, and then w
push [4].
• Up to 20 characters can be entered.
• See page 2 for the usable characters details.
• Push [A/a](#) to toggle between the Upper, Lower case
letter input modes and Number input mode.
• Push [8] to delete the character, symbol or number to
the left of the cursor.
• Push [t](§) or [u](§§§) to move the cursor.
Push Keypad to enter the receive frequency, and e
then push [4].
• Push [M] to enter the decimal point.
• Push [8] to delete the number.
• Push [t](§) or [u](§§§) to move the cursor.
Push Keypad to enter the transmit frequency, and r
then push [4].
• Push [M] to enter the decimal point.
• Push [8] to delete the number.
• Push [t](§) or [u](§§§) to move the cursor.
Push t [r] or [s] to select the operating mode.
Push y [4] to save the channel and exit.
Manager Menu ■
Create Entry (Continued) D
2001 NEW
