PANEL DESCRIPTION
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

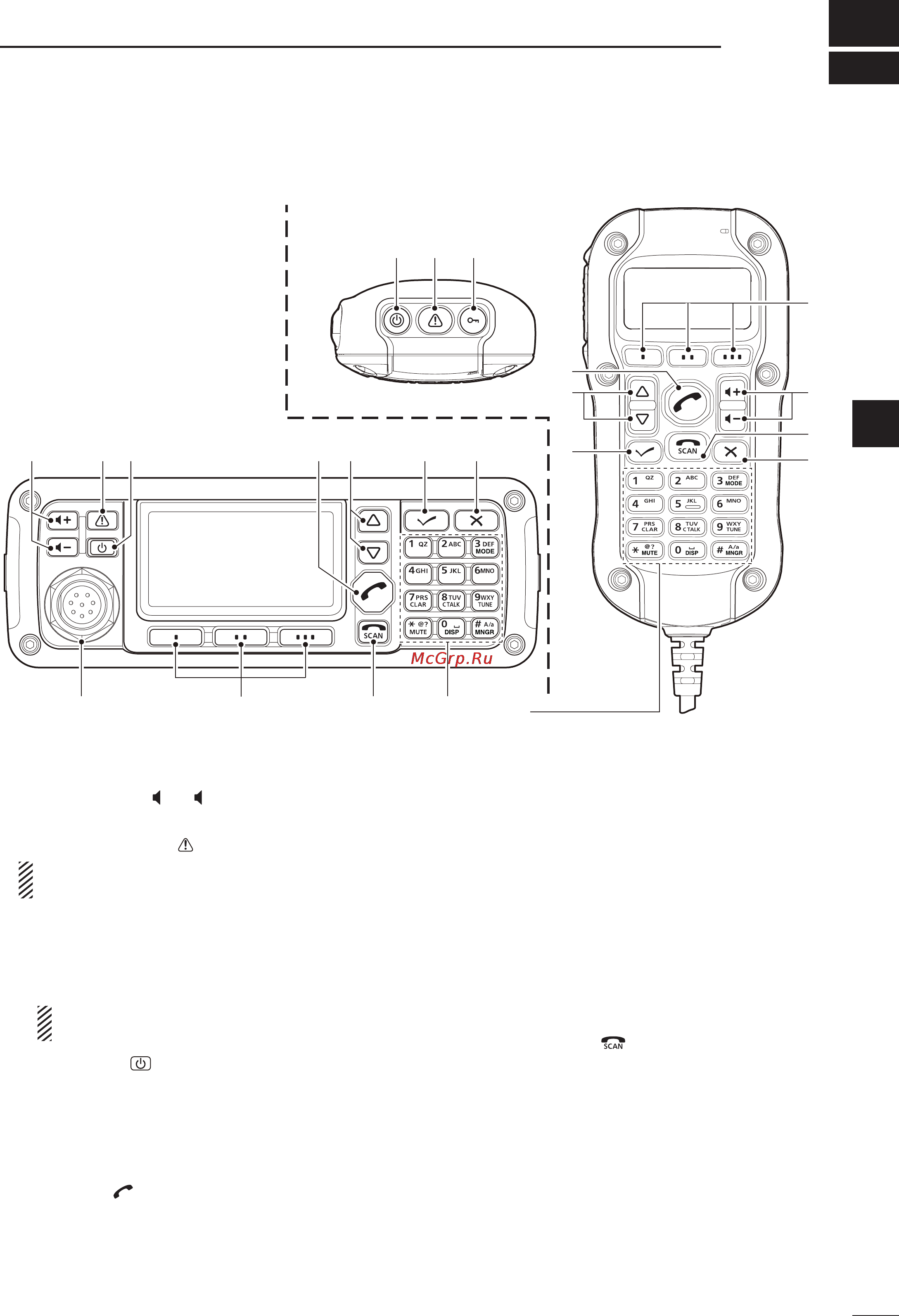

Quick Reference
q VOLUME KEYS [ +]/[ –] (p. 8)
Adjusts the audio output level.
w EMERGENCY KEY [
]
NOTE: While in the VFO mode, the Emergency
key cannot be used.
➥ Push to enter the Emergency channel list.
• Push again to return to the normal operating screen.
➥ Hold down for 1 second to transmit Selcall and
RFDS (Royal Flying Doctor Service) calls to the
specified Selcall addresses in sequential order.
NOTE: RFDS calls are available in only the
Australian versions.
e POWER KEY [
]
➥ When the transceiver’s power is OFF:
Push to turn ON the transceiver power.
• First, turn ON the DC power source.
➥ When the transceiver’s power is ON:
Hold down for 2 seconds to turn OFF the power.
r CALL KEY [ ]
Push to enter the Call menu.
• Push again to go to the next screen in the Call menu.
t UP/DOWN KEYS [r]/[s]
Selects the operating channel, the items in the
Menu mode, and so on.
y ENTER KEY [4]
Push to enter and exit the selected Menu in the ➥
Menu screen.
Hold down for 1 second to enter the program- ➥
ming mode.
u CLEAR KEY [8]
Push to enter or exit the Main Menu screen. ➥
Push to return to the previous screen. ➥
i CALL END/SCAN [
]
Push to hang up or terminate a call. ➥
Push to start or stop a scan ➥
o FUNCTION KEYS [§]/[§§]/[§§§]
Push to select the function that is displayed above
each key on the LCD display.
• The functions vary, depending on the preprogramming
and selected menu.
q w
w !1e
er
io!0
tyu
Keypad (p. 2)
q
o
u
y
t
r
i
• HM-192
• Front panel
■ Controller (Front panel or HM-192)
•Common
Continued on the next page.
