Troubleshooting by Remote Controller Display / LED Display Si-71A
112 Troubleshooting
6.14 Discharge Pipe Temperature Malfunction
Remote Controller
Display
)6
)6)6
)6
Outdoor Unit LED
Display
A(H1P)
ñ
1(H2P)
ó
2(H3P)
ó
Applicable Models
R(Y)
Method of
Malfunction
Detection
Malfunction is detected according to temperature detected by discharge pipe temperature sensor.
Malfunction
Decision
Conditions
„
When discharge pipe temperature becomes abnormally high
„
When discharge pipe temperature rises suddenly
„
When the discharge pipe sensor comes out of its installed position
Supposed Causes
„
Improper amount of refrigerant
„
Refrigerant piping circuit clogging

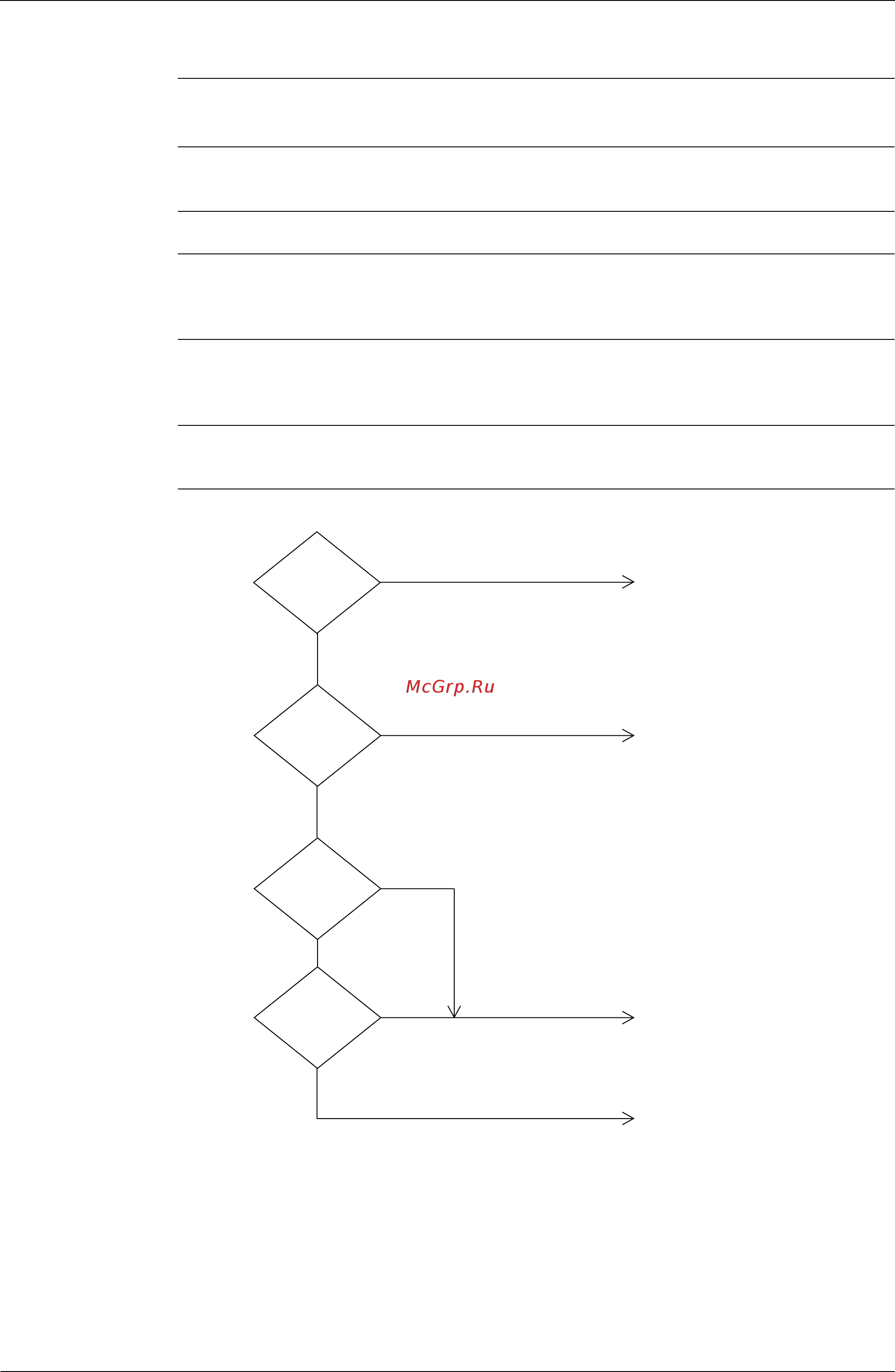

Troubleshooting
Has
the sensor
come off the
discharge pipe
port?
Is
electronic
expansions valve
fitted?
Is
electronic
expansion valve
disconnected from
valve body?
YES
YES
YES
YES
Charge with the proper amount
of refrigerant.
Correctly place the sensor in
the discharge pipe port.
Check refrigerant piping circuit
clogging.
Correctly place the electronic
expansion valve coil to valve
body.
NO
(SF016)
NO
NO
NO
Is
the amount
of refrigerant
correct?
