For R(Y)71K Si-71A
180 Removal Procedure
6. For R(Y)71K
6.1 Removal of External Casing
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points

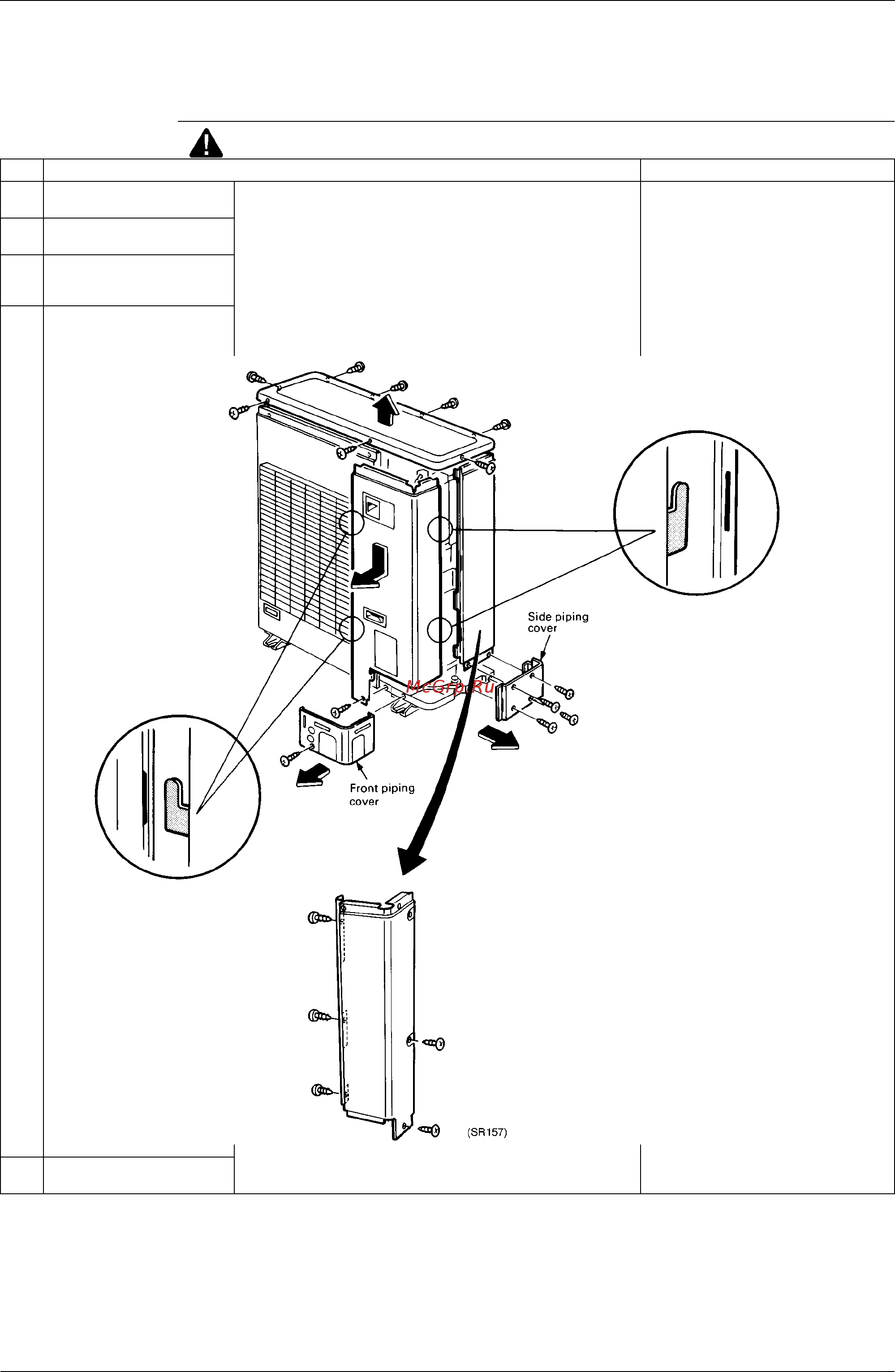

1 Remove the 8 top plate
screws.
2 Remove the screw of the
front piping cover.
3 Remove the screw of the
front casing and remove by
pushing downward.
4 Remove the 4 screws of the
side piping cover.
5 Remove the 5 screws of the
rear/side casing.
