For FAY71F (A) Si-71A
166 Removal Procedure

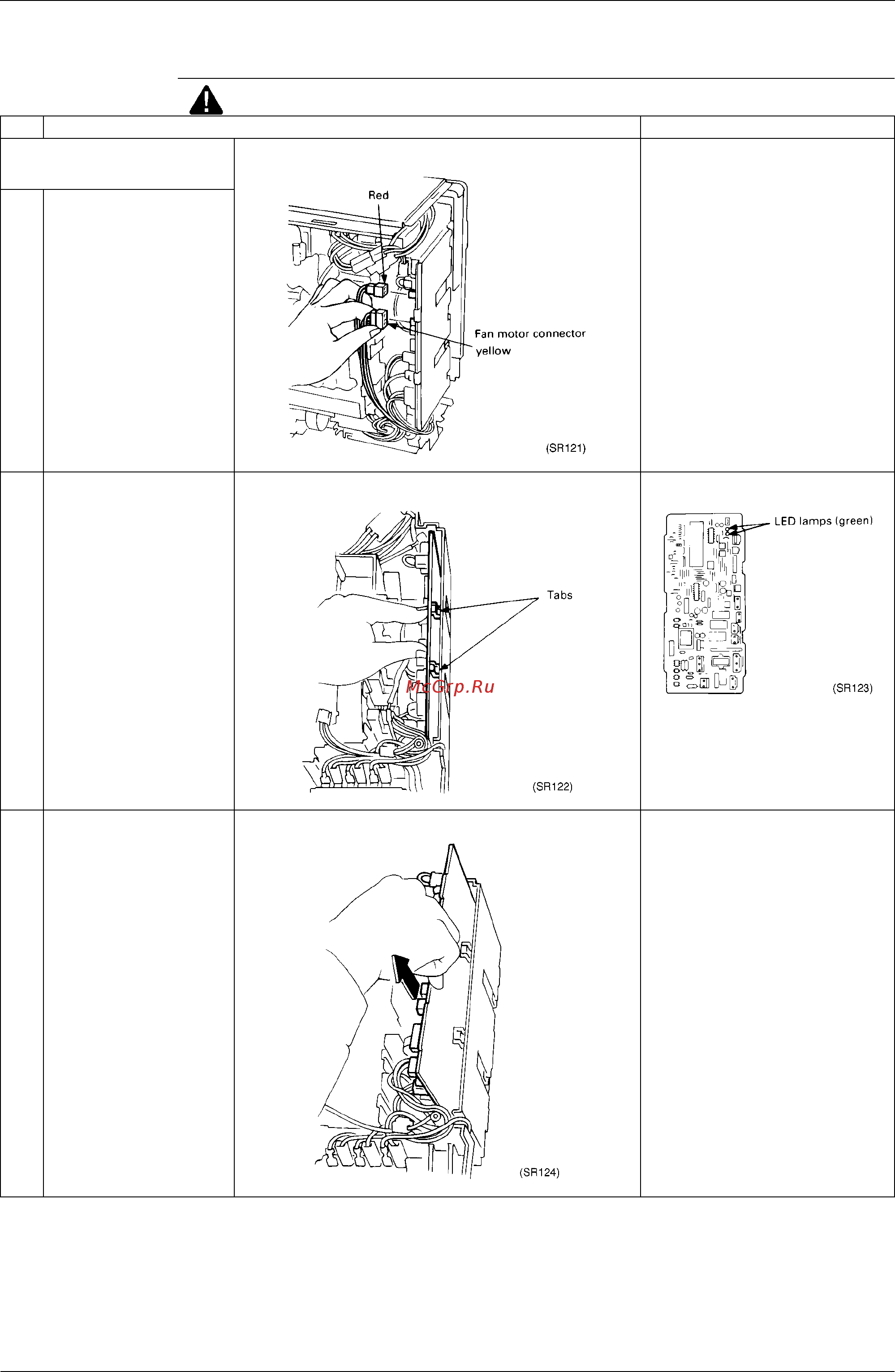

4.4 Removal of PC Board
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
∗
Remove the outer panels
according to the procedure for
removing the electrical parts box.
1 Disconnect the front side
wiring connector connected
to the PC board.
2 Disconnect the PC board
from the tabs by pushing it
inward. Draw the PC board
out partly and disconnect the
remaining connectors.
The tape holding the electrical parts
box and PC board is for transport, and
is unnecessary when reinstalling.
3 Completely remove the PC
board.
