For FHYC71K Si-71A
132 Removal Procedure
1.6 Removal of Decoration Panel
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

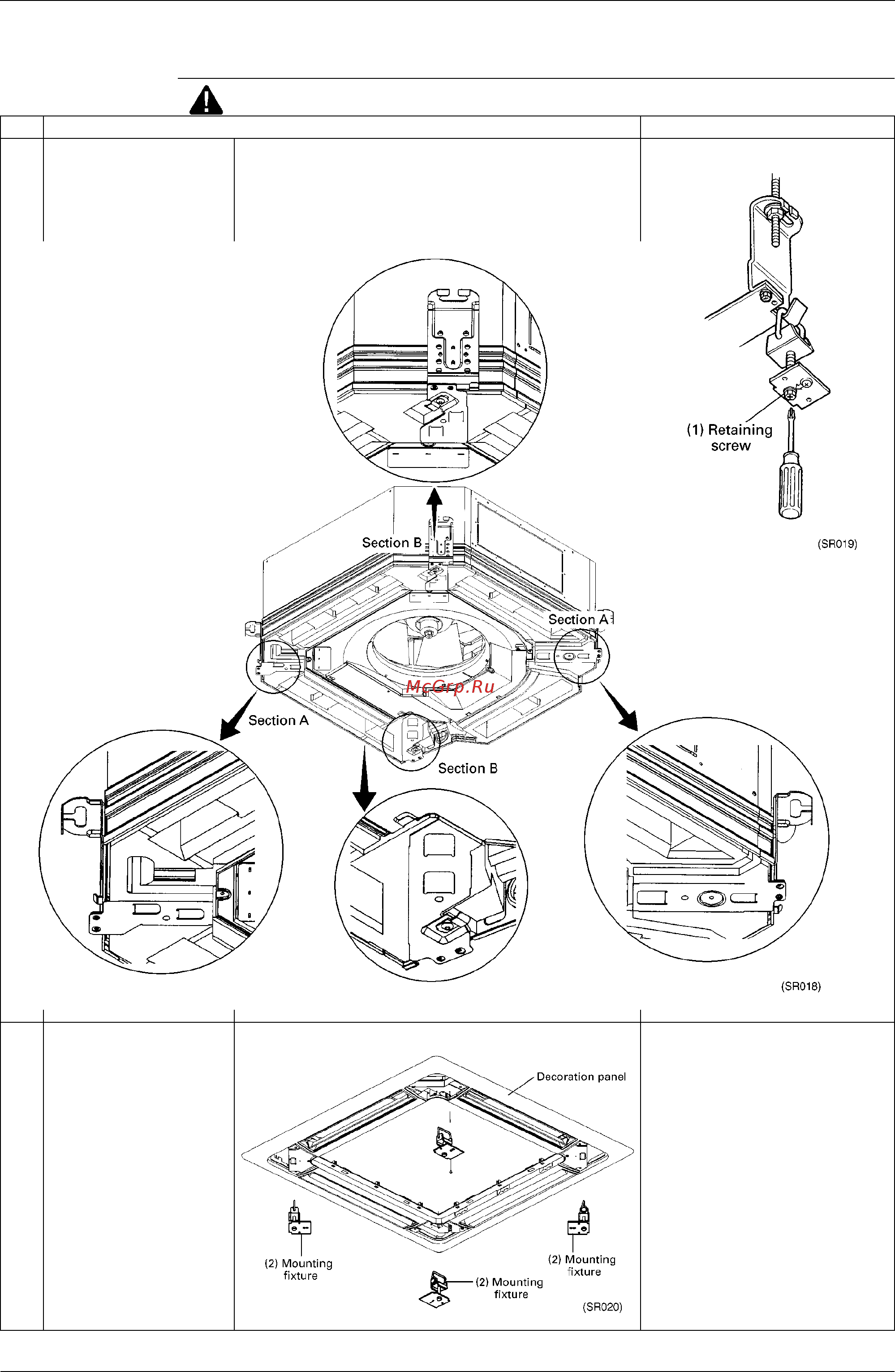

Step Procedure Points
1 Loosen the 4 retaining
screws from the decoration
panel.
Structure of mounting fixture
2 The decoration panel is
attached with 4 mounting
fixtures.
3 Remove the 2 fixtures on the
outside (sections A), then
remove the 2 fixtures on the
inside (sections B).
4 Remove the decoration
panel.
