Daikin FHK35FJV1 [163/244] Removal of swing motor
![Daikin FHYK45FJV1 [163/244] Removal of swing motor](/views2/1764299/page163/bga3.png)
For FHY71F Si-71A
152 Removal Procedure

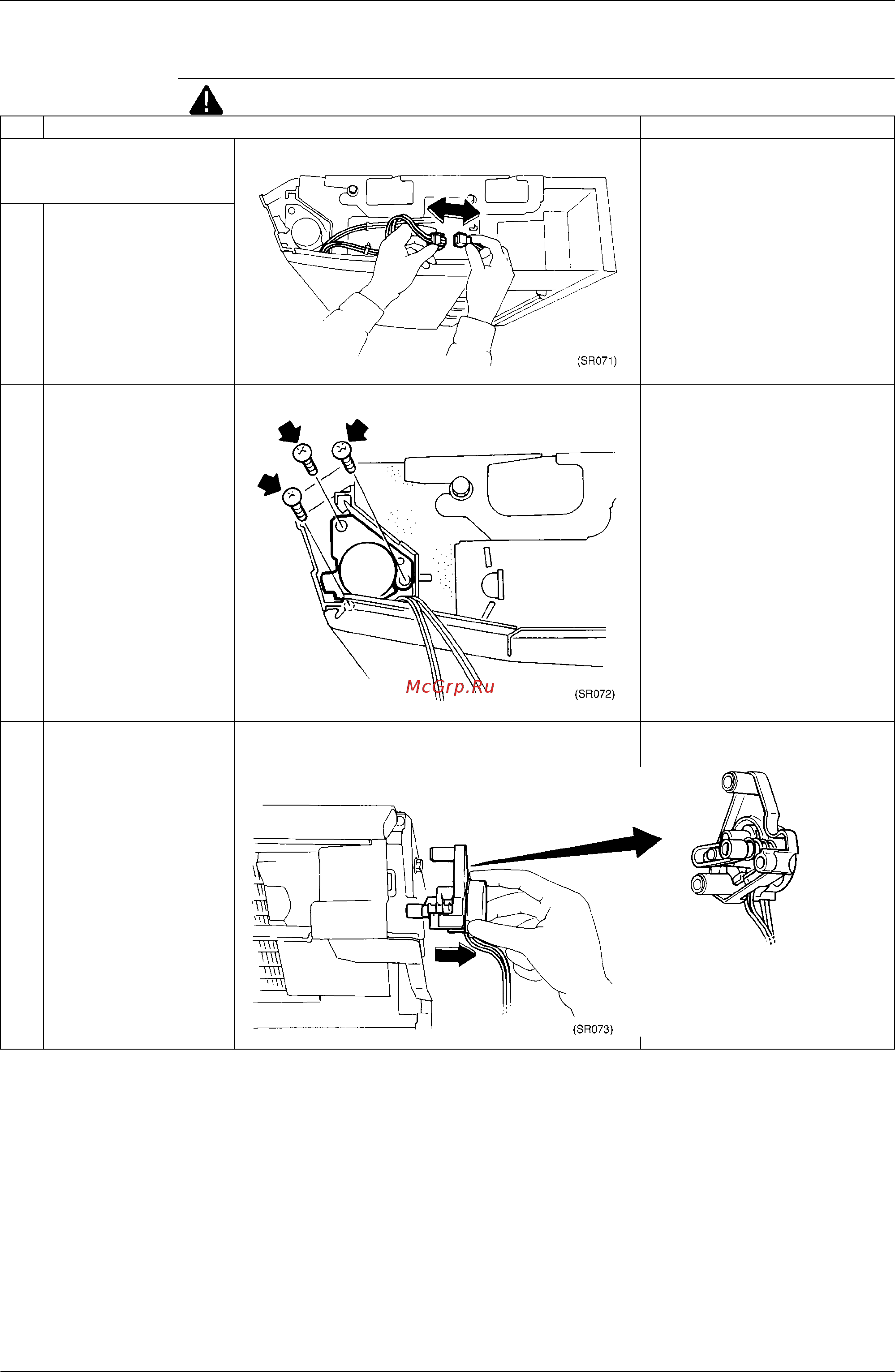

2.7 Removal of Swing Motor
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
∗
Remove the right side panel
according to the procedures for
removing the bottom panel and
drain pan.
1 Disconnect the connector
connected to the swing
motor.
2 Remove the 3 swing motor
installation screws.
3 Remove the swing motor. When installing match the position with
the horizontal blade shaft.
