For FUY71/100/125FJ Si-71A
154 Removal Procedure
3.2 Removal of Suction Grille
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

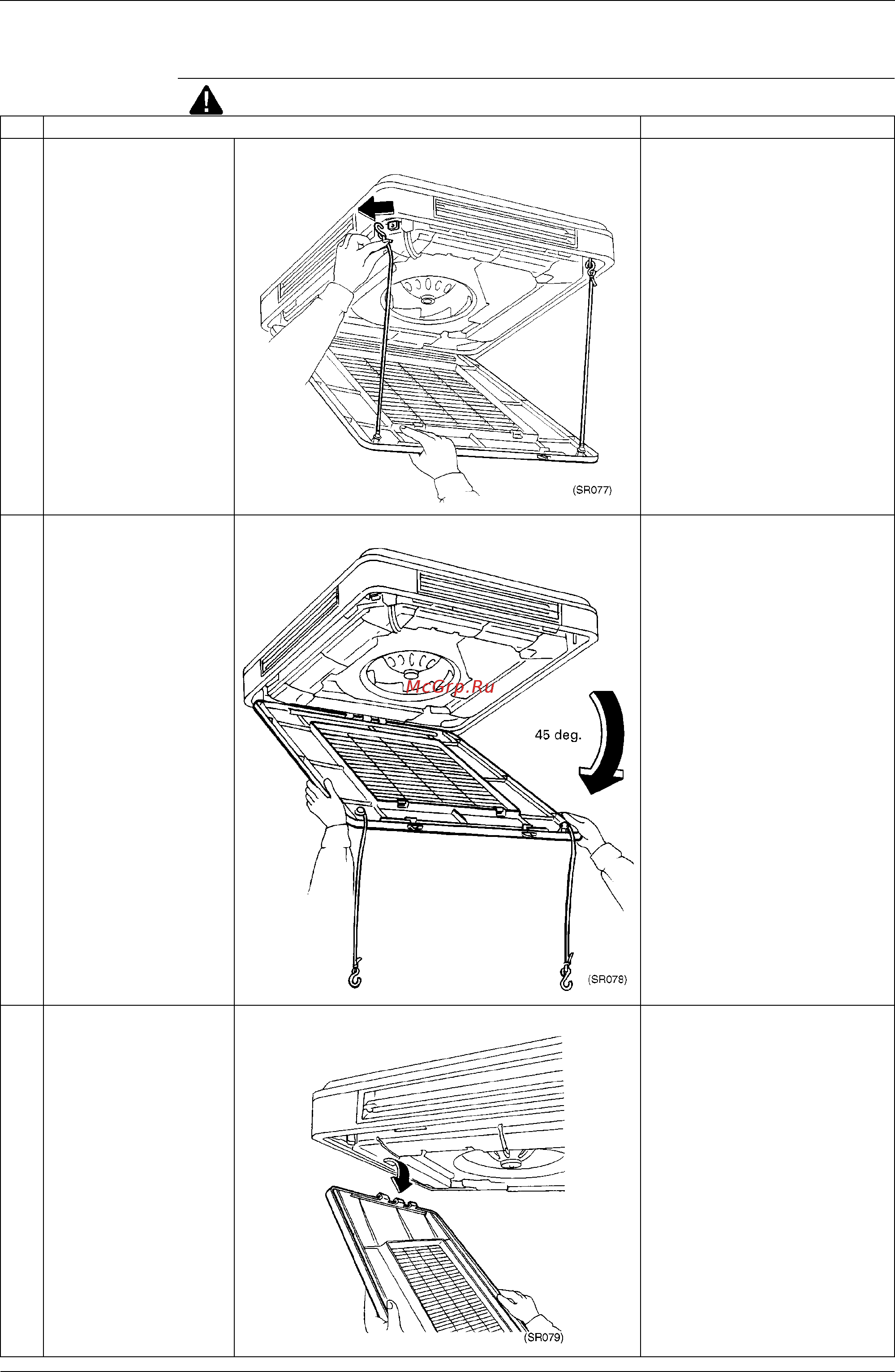

Step Procedure Points
1. Unhook two drop-prevention
strings while supporting
suction grille with hand.
2. Open suction grille forward
for approx. 45 degree.
3. Disengage three hooks
located at rear side of the
grille to remove suction
grille.
