Daikin FHK35FJV1 [36/244] Air flow direction setting

Si-71A Method of Field Set (Reset after Maintenance Inspection/Repair)

Explanation of Field Set 25

„

In the Case of FHYC (100 to 140 class)

1.5.3 Air Flow Direction Setting

Set the air flow direction of indoor units as given in the table below. (Set when optional air outlet blocking

pad has been installed.) The second code No. is factory set to “01.”

Setting Table

1.5.4 Filter Sign Setting

both group control and individual remote controller control are used together), be sure to set the addresses

for the receiver and wireless remote controller. (For group control, see the attached installation manual for

the indoor unit.) If using together with a wired remote controller, you have to change the main/sub setting or

the receiver.

Setting The

Receiver

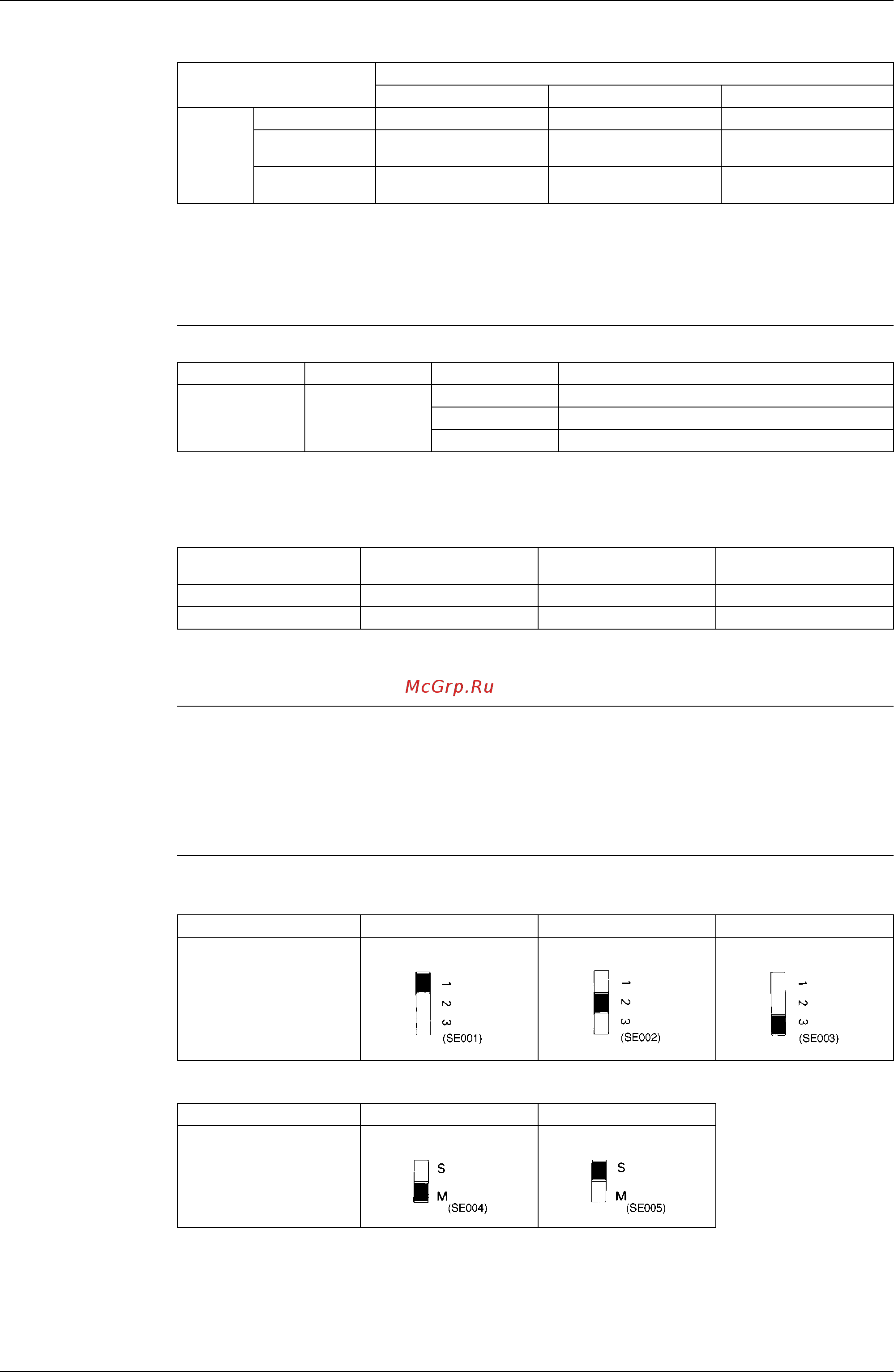

Through the small opening on the back of the receiver, set the wireless address switch (SS2) on the printed

circuit board according to the table below.

When using both a wired and a wireless remote controller for 1 indoor unit, the wired controller should be

set to MAIN. Therefore, set the MAIN/SUB switch (SS1) of the receiver to SUB.

d

MAIN/SUB Switch (SS1)
