For FHYC71K Si-71A
140 Removal Procedure
1.12 Removal of Drain Pump and Drain Hose
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points

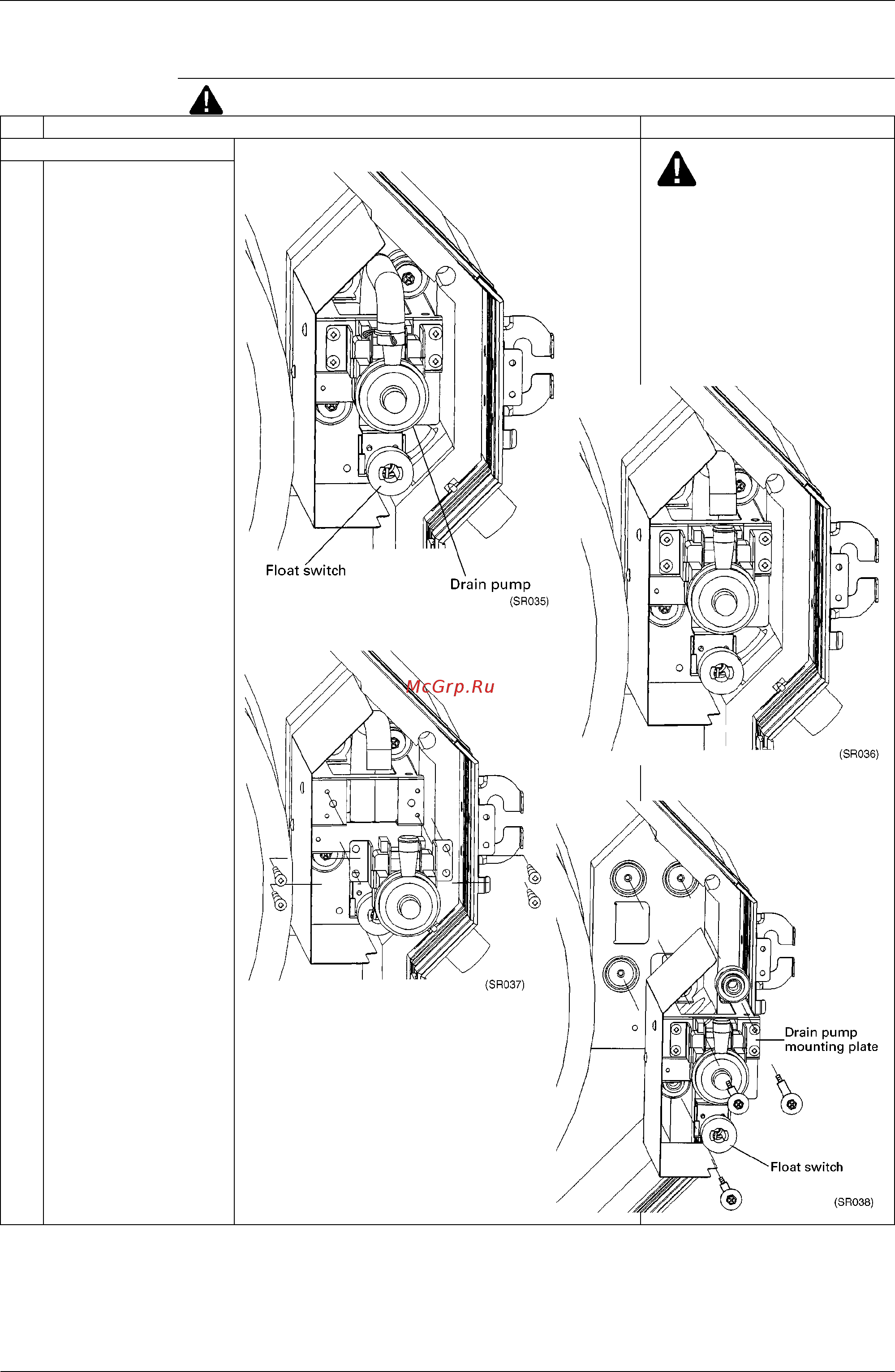

1 Removing the drain pump
Caution
∗
Be sure to install the pipe clip during
installation to prevent water leaks.
1 Remove the drain pan.
2 Remove the hose band.
3 Pull out the drain hose.
4 Remove the 4 drain pump
mounting screws.
5 Remove the 3 drain pump
mounting plate retaining
screws.
6 Remove the drain pump
mounting plate together with
the float switch.
