Si-71A For FVY71L~125L
Removal Procedure 175
5.2 Removal of Electric Parts and Remote Controller
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points

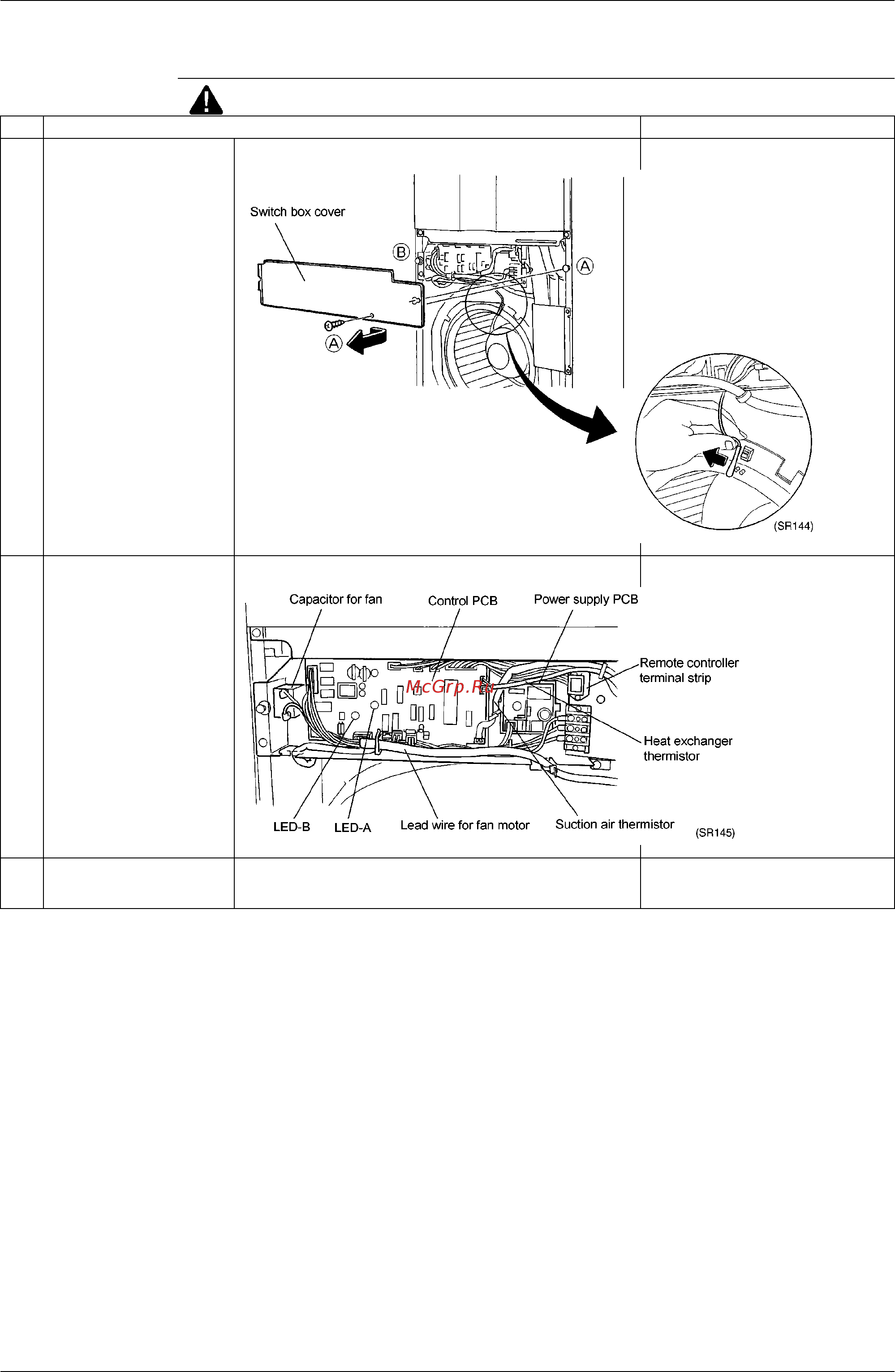

1 To remove switch box cover,
dismount screw (A), loosen
screw (B) and slide the cover
to right side.
Remove suction air
thermistor from bell mouth.
2 The figure right shows part
layout inside switch box.
3 Disconnect remote
controller cord from switch
box.
