Troubleshooting Based on Equipment Condition Si-71A
82 Troubleshooting
3.2 Equipment does not Operate
Applicable Model
All models of Skyair series
Error Detection
Method
Error Generating
Condition
Possible Causes
„
Fuse blown or disorder of contact in operation circuit
„
Faulty operation switch or contact point
„
Faulty high pressure switch
„
Faulty magnetic switch for fan motor
„
Activation or fault of overcurrent relay for fan motor
„
Faulty overcurrent relay for compressor
„
Faulty compressor protection thermostat
„
Insufficient insulation in electric system
„
Faulty contact point of magnetic switch for compressor
„
Malfunction of compressor

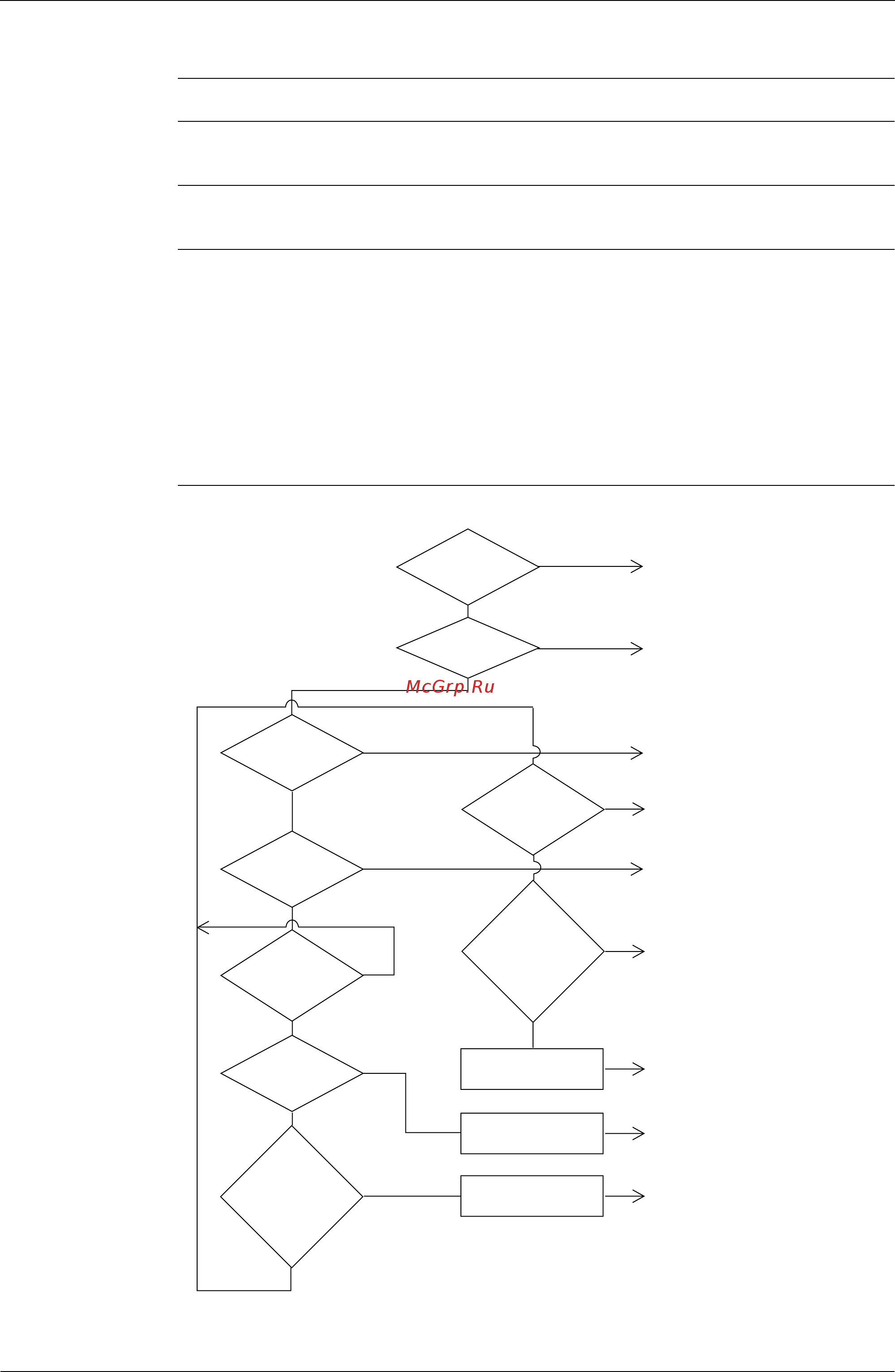

Troubleshooting
Possibly faulty electric
component
Turn on power switch or replace fuse.
Wait until power returns.
Normal. Equipment starts operation 3
minutes later (3-min standby).
Diagnose based on error code on
remote controller.
Normal. Equipment starts operation 3
minutes later (3-min standby).
Diagnose based on error code on
remote controller.
Check electric system.
Normal.
Normal. Set units to the same
operation mode.
Previous operation
mode is still in effect.
Not all units are in the
same operation mode.
Is power
switch OFF or fuse
for remote switch
blown?
Is operation
lamp on LCD
remote controller
flashing?
Is operation
switch pressed
repeatedly?
Wireless
remote controller
Is operation lamp
on indoor unit signal
receiving section
flashing?
Does remote
controller indicate
"other unit in cooling
operation" or "other
unit in heating
operation"?
Is thermostat
changed and reset
again?
Is equipment
in automatic
operation?
Is outdoor
unit operating in
individual operation
mode?
Is there
power outage?
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
(SF031)
