Si-71A For FHYC71K
Removal Procedure 141

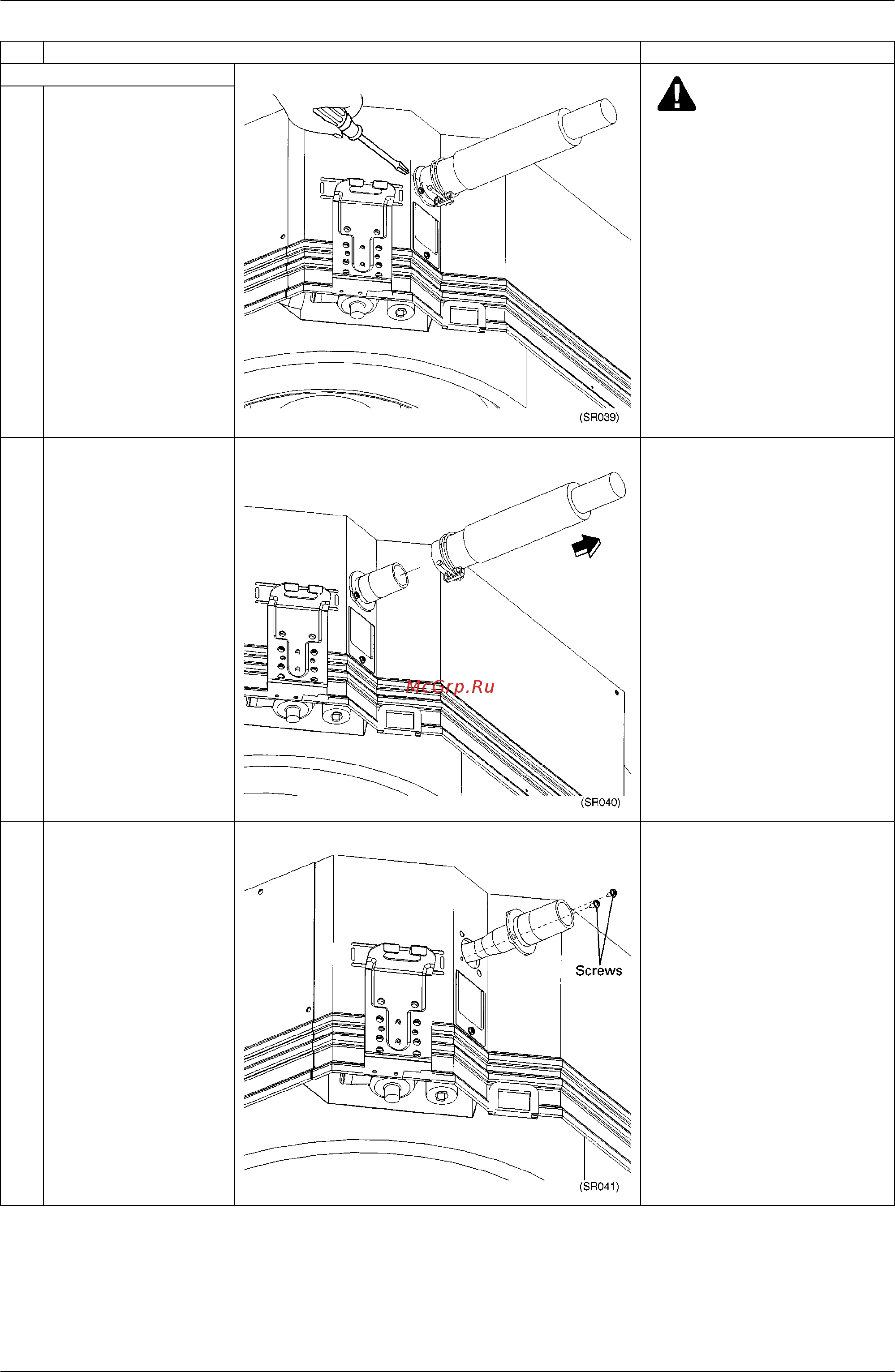

2.Removing the drain hose
Caution
∗
The drain hose may contain water.
Make sure there is no water in the
drain hose, or use a container to
receive water from the hose.
1 Loosen the hose band using
a screwdriver.
2
Pull out the drain hose.
3
To remove the drain hose
connecting section from the
unit, remove the 2 screws
and pull it out.
Step Procedure Points
