Si-71A For FHYC71K
Removal Procedure 139
1.11 Removal of Drain Pan
Procedure
Warning Be sure to turn off all power supplies before disassembling work.

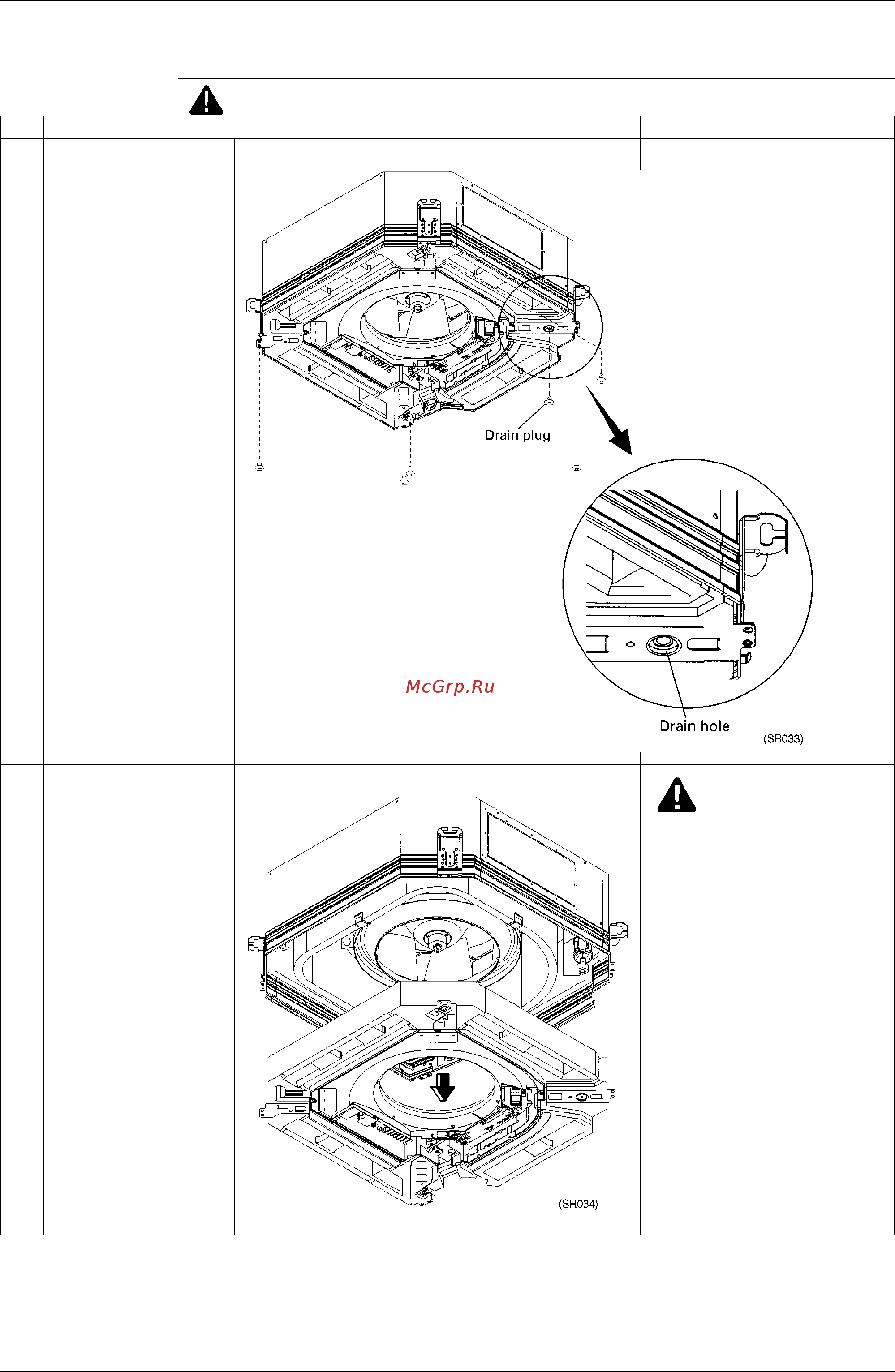

Step Procedure Points
1 Drain water from the drain
hole.
2 Remove the 5 drain pan
mounting screws.
3 Pull down the drain pan
straight down.
Caution
∗
If water is in the drain pan, it can spill
and wet the floor. Drain water
completely or cover the floor with a
vinyl sheet.
