Troubleshooting Based on Equipment Condition Si-71A
86 Troubleshooting
3.6 Equipment Operates but does not Provide Cooling.
Applicable Model
All models of Skyair series
Error Detection
Method
Error Generating
Condition
Possible Cause
„
Overcurrent relay (for compressor)
„
Compressor protection thermostat
„
Overcurrent relay may act due to the following reasons
Lower voltage of power supply
Excess level of high pressure
Insufficient capacity of power cable
Malfunction of compressor
„
Compressor protection thermostat may act due to the following reasons
Internal leakage of four-way valve (There is no difference between inlet and outlet temperature)
Insufficient compression of compressor
Incorrect refrigerant
Faulty expansion valve
Insufficient circulation of refrigerant

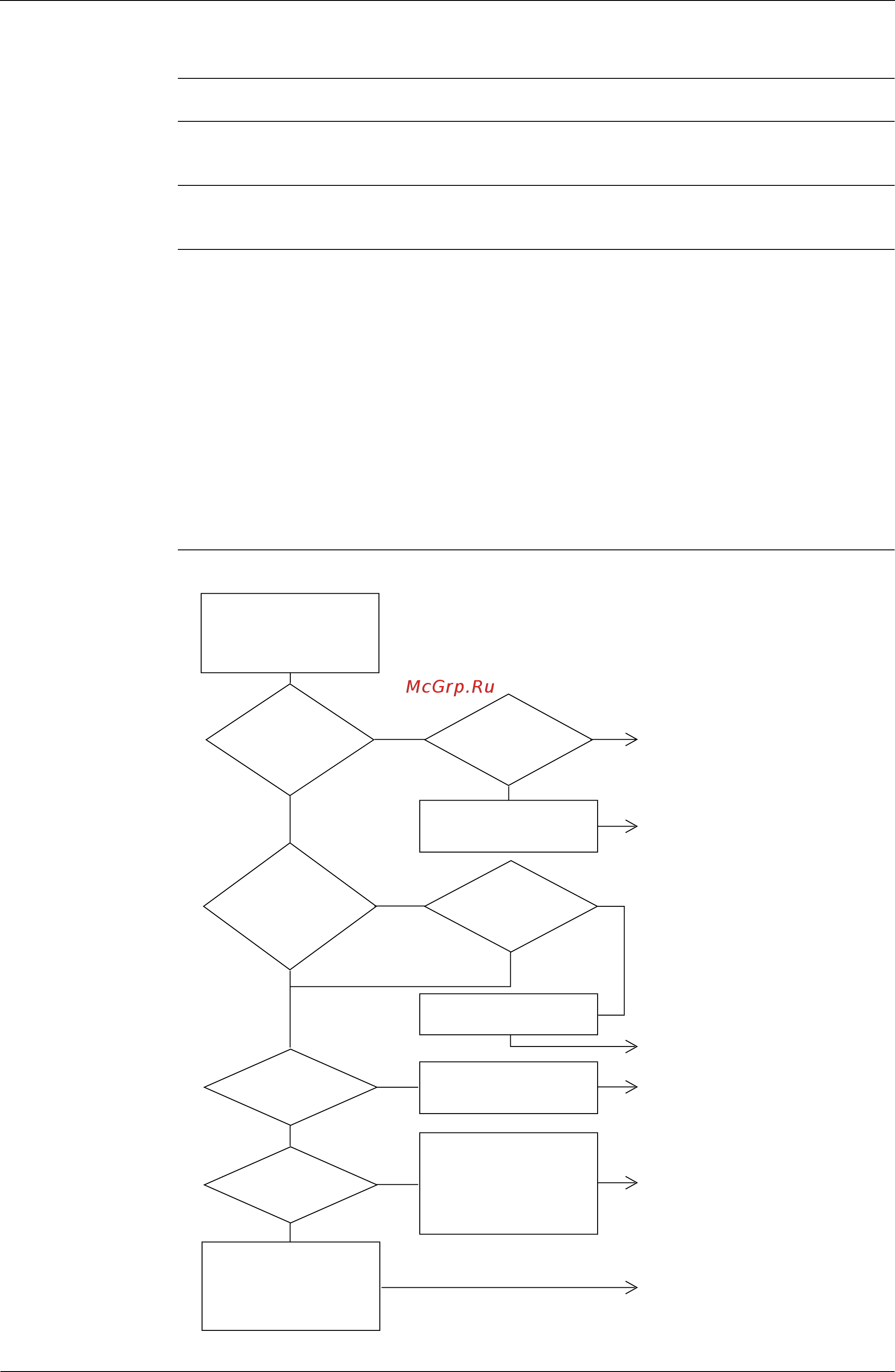

Troubleshooting
Measure the temperature of
suction air and discharge air.
Temperature difference =
Suction air temp. – Discharge
air temp.
Possible causes as follows
* Incorrect selection of model
* Affection of direct sun
* Clogged air filter
* Soiled heat exchanger
* Malfunction of fan motor
Possible causes as follows
* Refrigerant overcharge
* Soiled heat exchanger
* Short circuit of discharge air
* Disturbing item in air flow
* Malfunction of fan motor of
outdoor unit
Possible causes as follows
* Insufficient compression of
compressor
* Insufficient circulation of
refrigerant
* Faulty expansion valve
Gas shortage possibly
generates trouble.
Normal.
Additional unit installation should be
considered
After vacuum drying, charge correct
amount of refrigerant.
Check each section
Check each item
Check each item
Temperature
difference for cooling
should be between
8 and 18 ˚C.
Does
any frost generate
around inlet port of
indoor unit heat exchanger
or outlet port of
expansion
valve?
Is the
operation current
less than specified
level?
Does indoor
unit discharge flow
rate down?
Is the level
of high pressure higher
than normal level?
Does the
heat load increase
after installation
of the unit?
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
(SF035)
