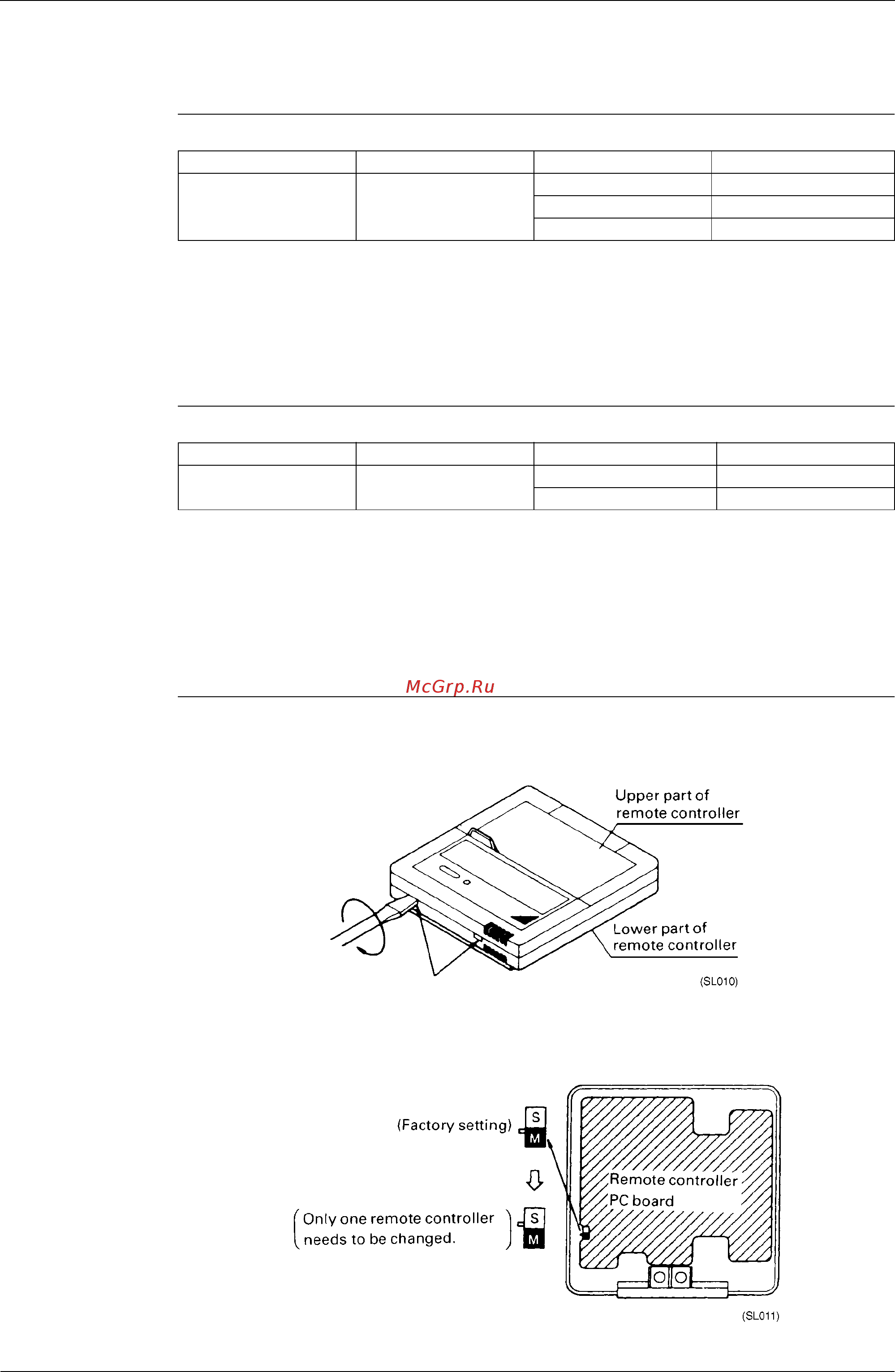

Method of Field Set (Reset after Maintenance Inspection/Repair) Si-71A
28 Explanation of Field Set
1.5.7 Urtra-Long-Life Filter Sign Setting
When a Urtra-long-life filter is installed, the filter sign timer setting must be changed.
Setting Table
1.5.8 Fan Speed Changeover When Thermostat is OFF
By setting to “Set Fan Speed,” you can switch the fan speed to the set fan speed when the heating
thermostat is OFF.
∗
Since there is concern about draft if using “fan speed up when thermostat is OFF,” you should take the
setup location into consideration.
Setting Table
1.5.9 Main/Sub Setting When Using 2 Remote Controllers
Set the switch on the remote controller’s PC board.
Control by 2 Remote Controllers (controlling 1 indoor unit with 2 remote controllers)
„
When using 2 remote controllers, one of either the control panel or the separate remote controller must
be set to “MAIN” and the other to “SUB”.
(MAIN/SUB CHANGEOVER)
Procedure
1. Insert a “ - “ screwdriver into the recess between the upper and lower part of remote controller and,
working from the 2 positions, pry off the upper part. (The remote controller PC board is attached to the
upper part of remote controller.)
Insert the screwdriver here and gently work off the upper part of remote controller.
2. Tum the MAIN/SUB CHANGEOVER SWITCH on one of the two remote controller PC boards to “S”.
(Leave the switch of the other remote controller set to “M”.)
Mode No. Setting Switch No. Setting Position No. Setting
10 (20) 1 01 Long-Life Filter
02 Urtra-Long-Life Filter (1)
03 Urtra-Long-Life Filter (2)
Mode No. First Code No. Second Code No. Setting
12(22) 3 01 LL Fan Speed
02 Set Fan Speed
