Function Details Si-71A
68 Explanation of Function Operation
In the Case of R(Y)J
5.2.13 Freeze Prevention Control

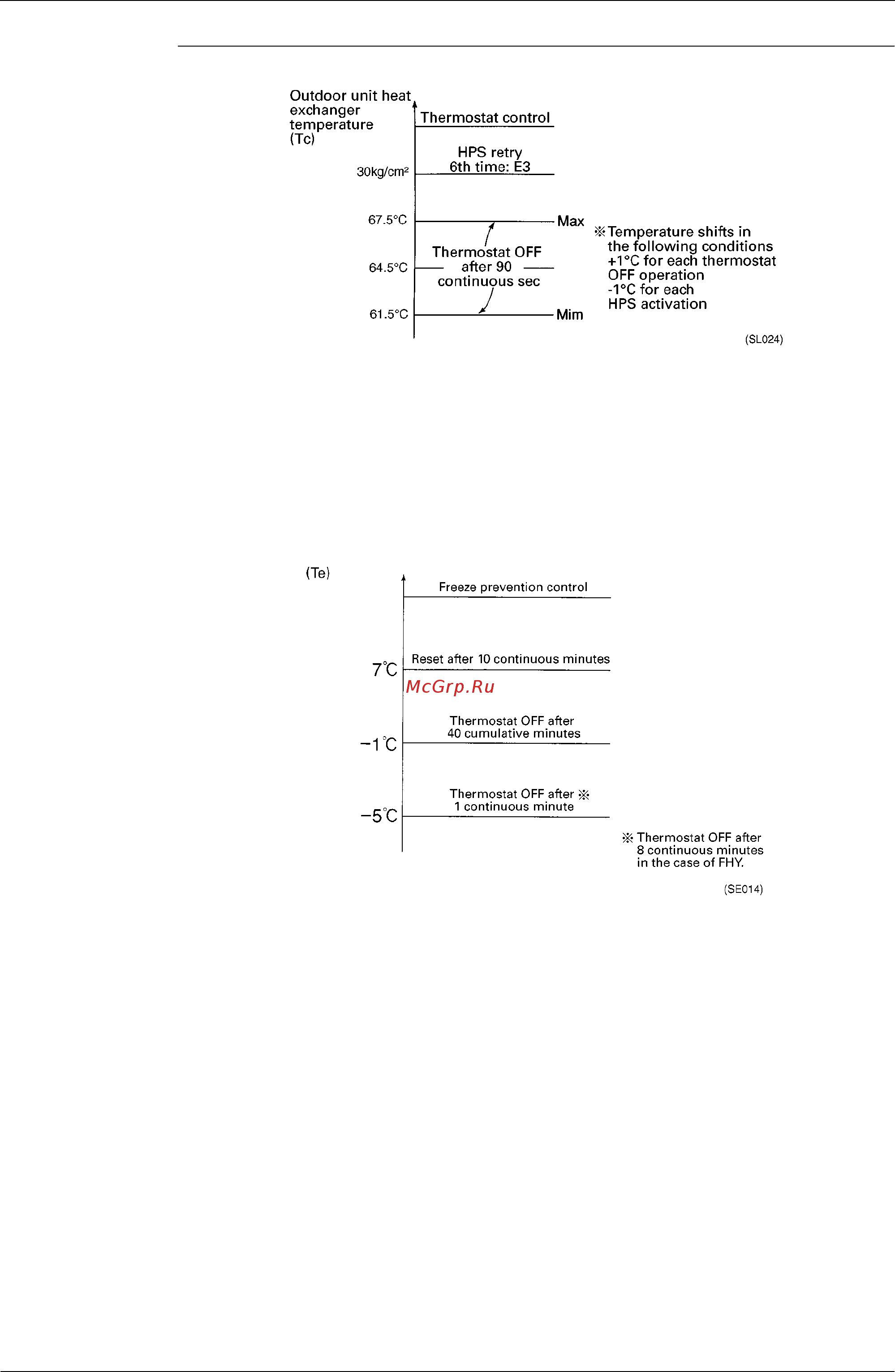

The thermostat turns OFF under the following temperature conditions to prevent freezing of the indoor unit
heat exchanger.
„
The motorized valve is controlled to maintain the indoor heat exchanger temperature (Te) above 0°C.
„
The outdoor unit fan speed is reduced to prevent freeze prevention control from activating during
cooling operation under low outside air temperature. (For details, see the section on cooling operation
under low outside air temperature.)
