Si-71A Function Details
Explanation of Function Operation 67

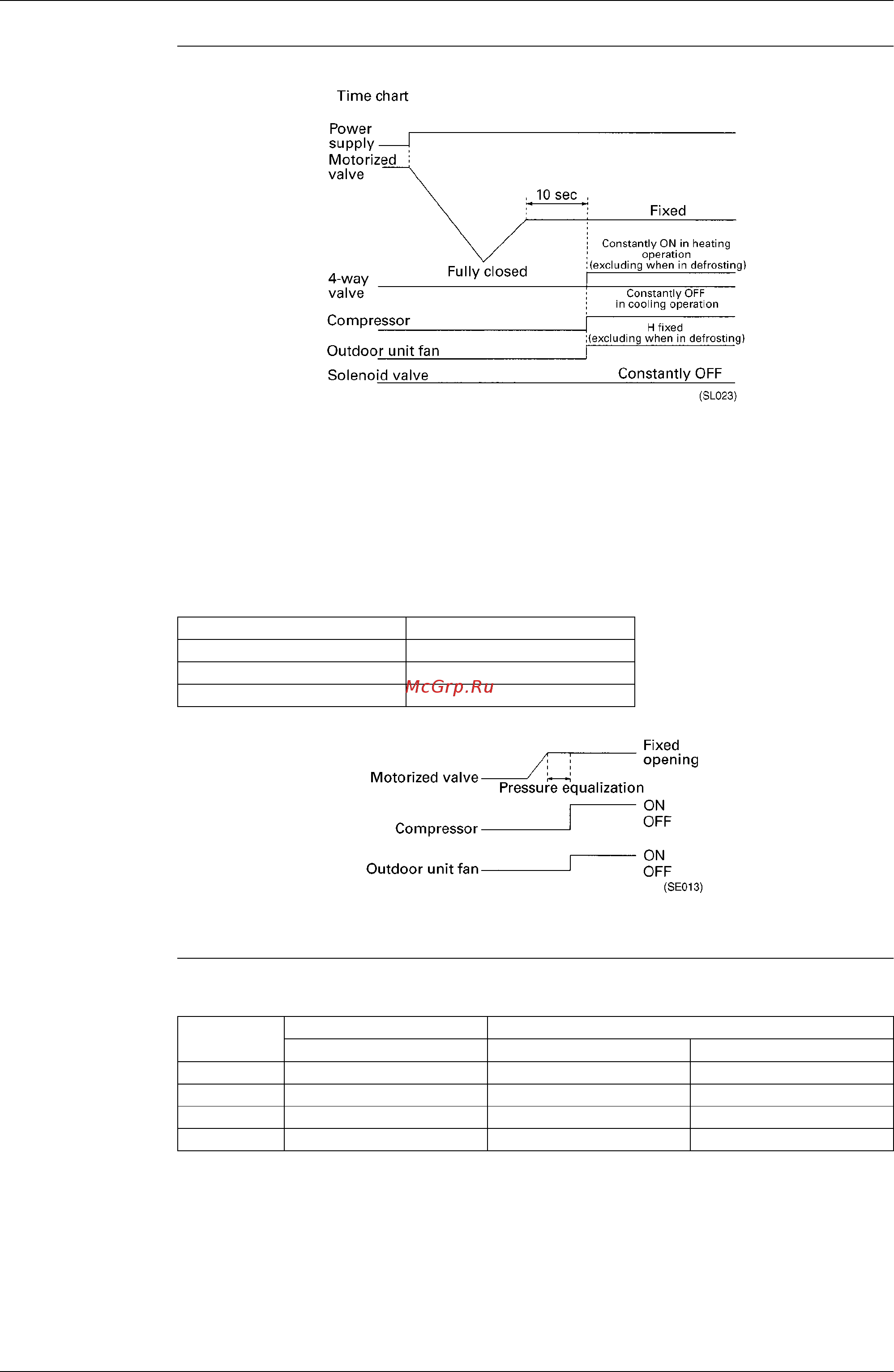

Time Chart
5.2.10 Simulated Operation Function
If the outdoor air thermistor and outdoor unit heat exchange thermistor are malfunctioning, simulated
operation is carried out while malfunction is displayed on the remote controller. (Stops due to malfunction if
the discharge pipe thermistor is defective.)
5.2.11 Cooling Start Control
The starting air flow volume is varied at a startup according to the outside air temperature (Ta) condition to
prevent a rise in the high pressure and a drop in the low pressure.
∗
Units operate with the starting air flow volume for up to 3 minutes.
Outdoor Unit Fan
Tap
5.2.12 High Pressure Protection Control in Cooling Operation
„
The thermostat turns OFF immediately before HPS activation according to the outdoor unit heat
exchanger temperature (Tc) to prevent shutdown due to an error.
„
In cooling-only units, the motorized valve is controlled to maintain Tc at 53°C or lower. (Optimum
discharge pipe temperature control)
Outside Air Temperature (Ta) Air Flow Volume at Startup
Ta
≤
3°C OFF at Startup
3°C<Ta
≤
23°C H Air Flow Volume
Ta>23°C HH Air Flow Volume
Fan Tap 40~71 100~140
(1 Fan) Upper Fan (MF1) Lower Fan (MF2)
OFF OFF OFF OFF
LL OFF H
HHHH
HH HH HH HH
