5-11

ASUS RS500A-E10 Series

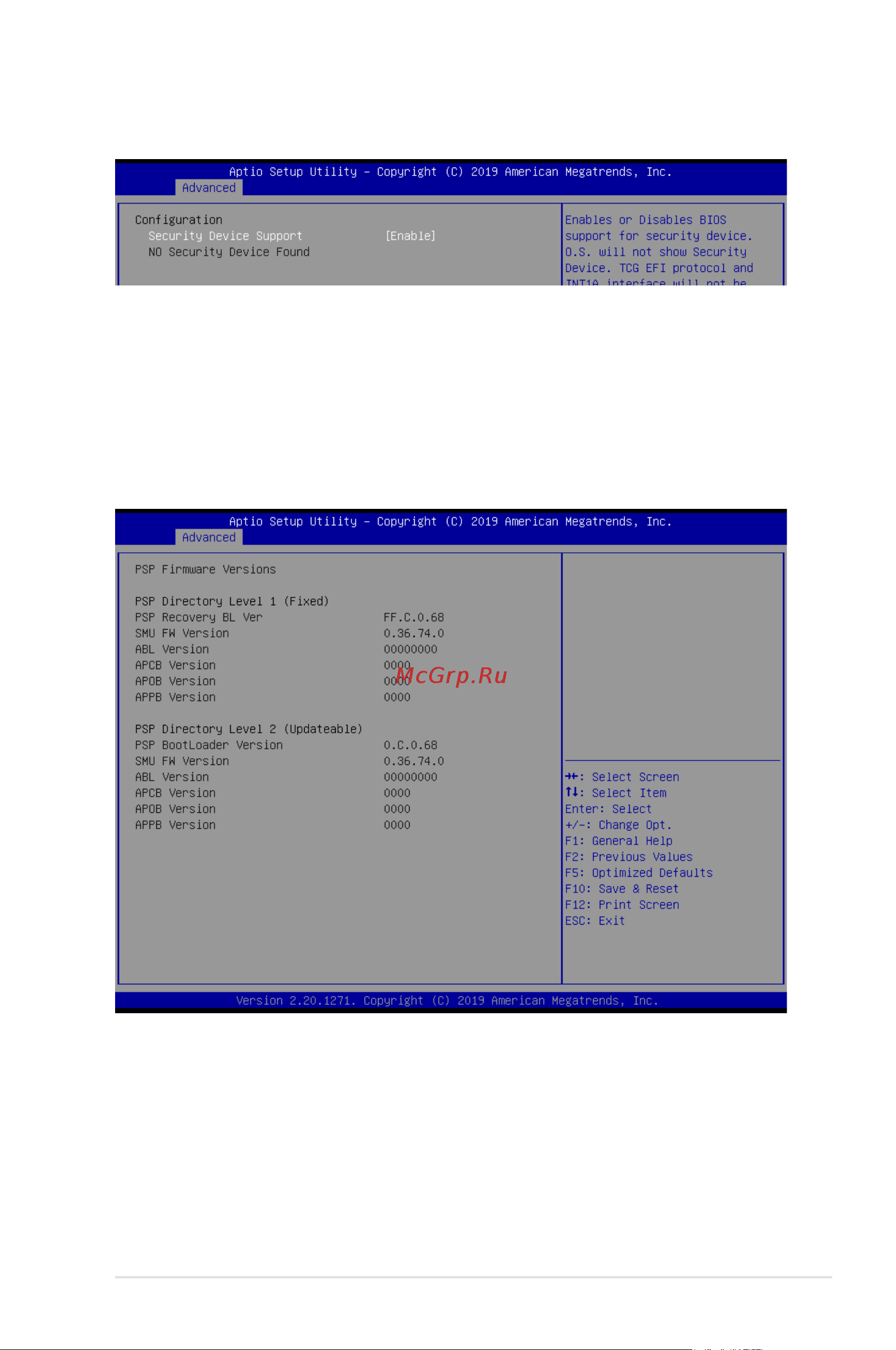

5.4.1 Trusted Computing

5.4.2 PSP Firmware Versions

This page displays the PSP firmware versions.

Configuration

Security Device Support [Disabled]

Allows you to enable or disable the BIOS support for security device.

Configuration options: [Disabled] [Enabled]
