Asus RS500A-E10-RS4 [43/150] Installing an asus pike ii card

Asus RS500A-E10-PS4 [43/150] Installing an asus pike ii card

2-17

ASUS RS500A-E10 Series

2.5.2 Installing an ASUS PIKE II card

You can install an ASUS PIKE II card on the provided riser card bracket.

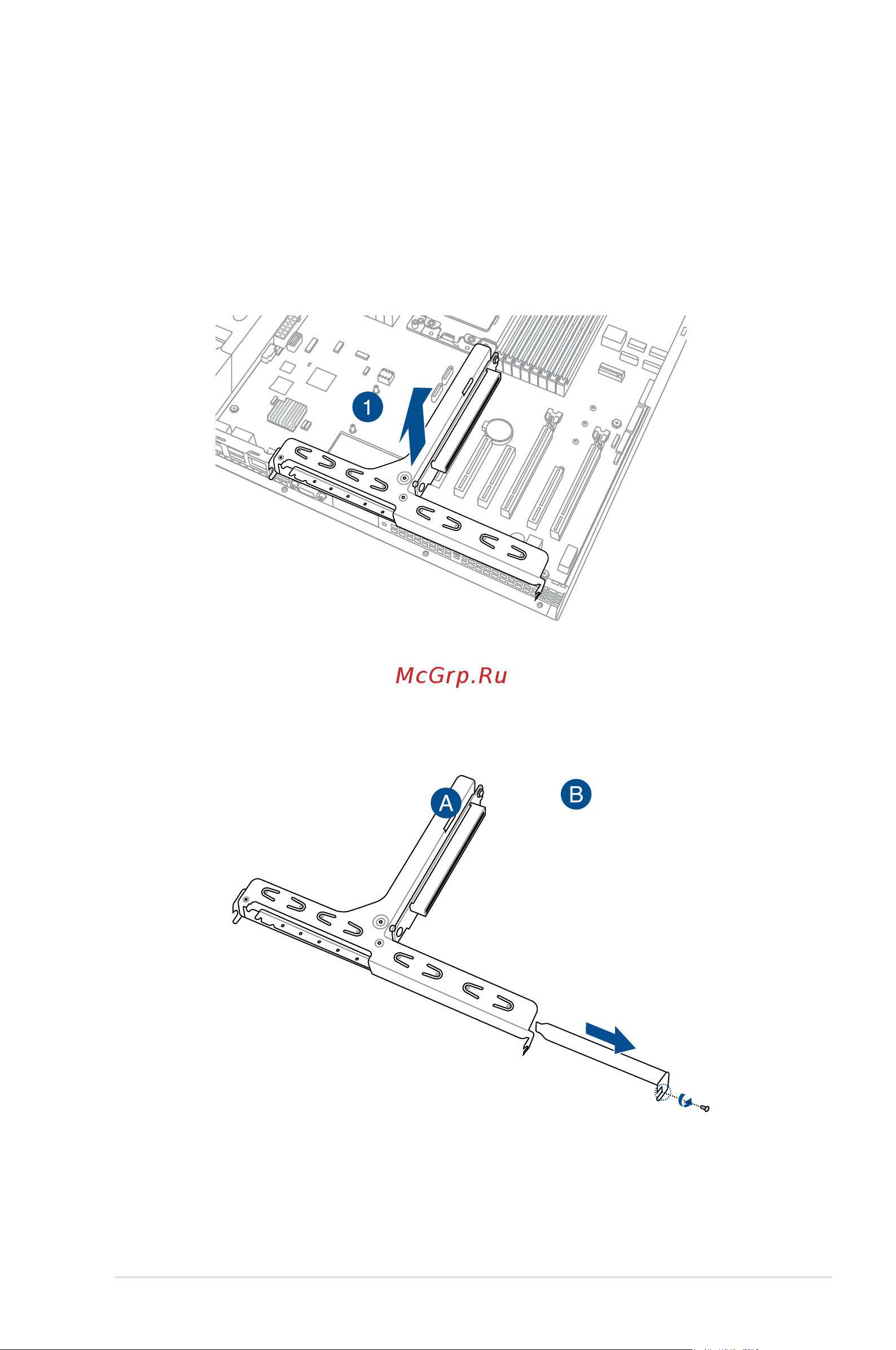

To install an ASUS PIKE II card:

2. Place the riser card bracket on a flat and stable surface.

3. Remove the screw from the metal bracket (A), then remove the metal bracket (B).

1. Firmly hold the riser card bracket, then pull it up to detach it from the PCI Express slot

on the motherboard.
